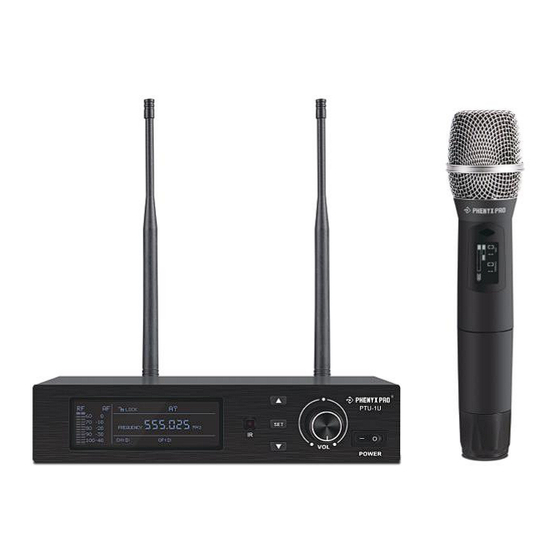

- Page 1 PTU-1U Phenyx Pro Professional True Diversity Wireless Microphone System OWNER’S MANUAL...
-
Page 3: Table Of Contents
Thank you for purchasing the Phenyx Pro PTU-1U Professional True Diversity Wireless Microphone System. This manual includes a description of features and a step-by-step guide to operate this unit. Please read this manual carefully and keep this for future reference. For more information, please visit our website www.phenxypro.com. -
Page 4: System Description
- 1 x Metal rackmount kit System Overview The Phenyx Pro PTU-1U is a true diversity wireless microphone system that allows users to enjoy their audio in complicated environments with ease. Featuring automatic frequency selection, lock function and up to 1000 select- able frequencies, the PTU-1U is able to impress in any large-scale venues and extreme conditions with extraordinary audio quality. -
Page 5: Receiver
Receiver Control Elements and Connectors ① LCD screen ② IR synchronization window ③ UP button ④ SET button ⑤ Down button ⑥ Volume control ⑦ Power switch Back Panel ① Antenna B ② 1/4” unbalanced output ③ XLR Balanced output ④... -
Page 6: Transmitter
Transmitter Handheld Microphone ① IR Window Aim this window at the IR window of the receiver when pairing ② LCD Screen ③ Power Switch When turn on the transmitter, the battery power icon is on the bottom right of the LCD display. If the battery icon indicates that the battery power is low, the batteries must be replaced to maintain normal operation. -
Page 7: Operating Instructions
Operating Instructions Receiver Menu "SQL--1": Squelch level function. Adjust the squelch level according to local environment to decrease white noises. Press up or down button to enable the receiver search for the least interference frequency available in the local area. "LOC": Lock Function. -
Page 8: Tips
SET button to confirm. Press SET button again until the channel number next to "CH" flashes, press UP or DOWN button to select desired channel number. Phenyx Pro recommends using the auto scan function for optimal operating results. Auto scan for frequency. -
Page 9: Specifications
Specification · Wireless Receiver Frequency range 500-600MHz Frequency stability <±30ppm Operation mode True diversity Number of frequencies 1000 frequencies Frequency response 50Hz～18KHz±3dB RF sensitivity ≥－99dbm ≥105dB Audio output 1 x Balanced XLR output, 1 x 1/4” mixed output Power requirement DC13.5V, 500mA Working distance 300ft –... - Page 10 Technical Support & Warranty Information...
- Page 12 www.phenyxpro.com Designed in U.S Made in China...
