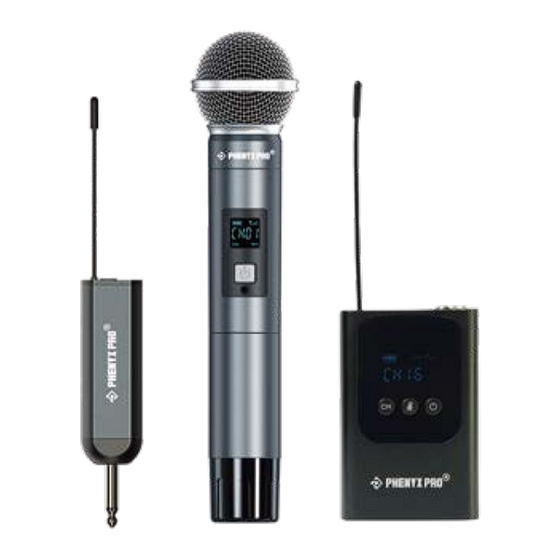

- Page 2 SYSTEM DESCRIPTION System overview Phenyx Pro always adheres to the mission of inspiring people to achieve next-level sound performance and exploring better tenchniques to enhance the wireless experience. The PDP-1/2 series is our new digital soultion that balances convenience and professionalism. With adjustable UHF frequency design, it boasts advanced digital circuitry for noise immunity and delivers stellar sound for small-scale indoor and outdoor performances.
- Page 3 PWR-P1/2 The PWR-P1 receives the signal from only one transmitter, which should be in CHA. It can not receives the signal from a transmitter in CHB. The PWR-P2 can receive signals from two transmitters which should be in CHA and CHB. ①...
- Page 4 Transmitters Handhled transmitter Bodypack transmitter PWH-P PWB-P ① ② ③ ④ ⑤ ④ CH:B ⑩ ⑥ ⑥ ⑦ ⑤ ⑧ ⑨ ①Microphone capsule *NOTE: Please make sure the sound source is toward the capsule. ②Bodypack antenna ③Mini 3-pin XLR jack: Connect a headset/lapel microhone. ④LCD display: It shows real-time battery indicator, frequency number and channel number.
- Page 5 OPERATION GUIDANCE Step 1: Power up and pair up the receiver and transmitters ①Make sure the receiver is fully charged before using it. ②Long press the power button of the receiver for 2 seconds to turn it on. ③For the handheld mic, unscrew the battery cover of the transmitter and install fresh batteries with the correct polarity. For the bodypack transmitter, make sure it is fully charged.
- Page 6 TROUBLESHOOTING The original system is automatically paired up before delivery. But if you need to pair up a transmitter to the receiver, please follow the below steps. Check if the new transmitter is in the channel (A or B) you would like to replace. Otherwise, switch its channel to CHA or CHB *NOTE: The PWR-P1 receiver only has CHA to operate, while the PWR-P2 have CHA and CHB.
- Page 7 SPECIFICATION PWR-P1/2 Wireless Receiver 1500mAh PWR-P Bodypack Transmitter PWH-P Handheld Transmitter Headset/lapel mic type Condenser Polar pattern Omni Headset mic: -36dB (±2dB) Sensitivity Lapel mic: -30dB (±2dB) S/N ratio 96dB Frequency response 110Hz-18kHz Output impedance 2.2kΩ Sample rate 48kHz Bit rate 24bit THD+N 0.1%...
