Howdens LEAF75TLR Assembly & Installation

750 Tall Larder Cabinet
Assembly & Installation

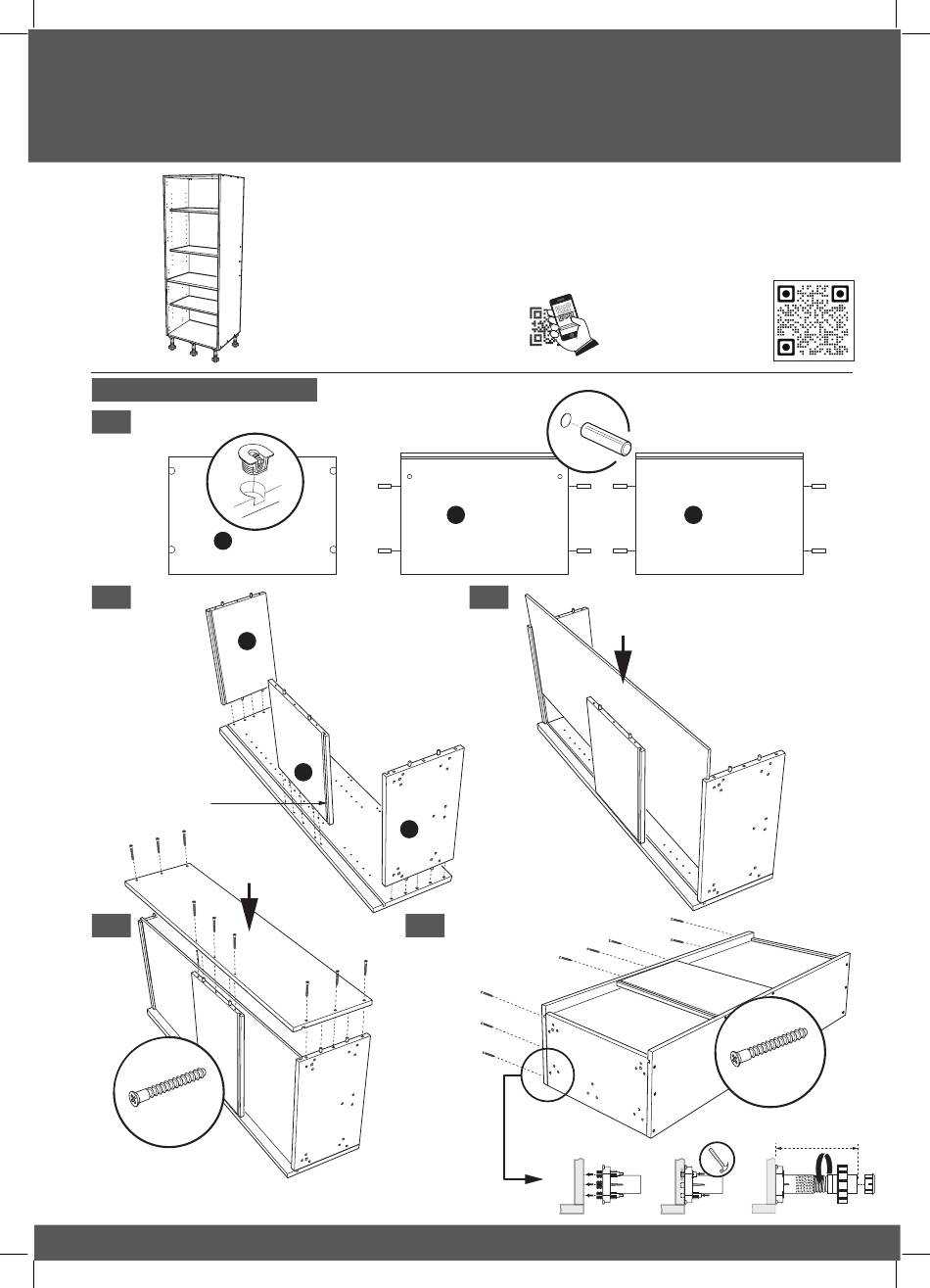

Assembly
1 Fit the dowels to base (B) and top/back panels (C). Fit cams to the shelf
panel (A).
x4
A
Shelf x1
2
Assemble the unit
aligning the dowels with
C
dowel holes.
Groove towards
the back
4
Screw
x9
Fit side panel aligning
dowel holes with dowels.
Secure using screws.
HD420192
Cabinet is supplied in x2 packs
Pack 1
Side Panels x2
Back Panel x1
Pack 2
Shelves x7
Legs & Fittings
VB
Cam
C
B
5
Carefully lay the unit onto its
front edges and secure the
side panel using screws.
Fit legs.
Ensure packaging is disposed of in a safe environmentally friendly way
Follow the Kitchen Installation Manual for all cabinet installation requirements. A
copy of this is available from your local Howdens depot.
Use scrap packaging on the floor to protect the unit during assembly.
Scan the QR code with your
smart device to access a
digital copy of the
Kitchen installation manual
x12
B Base x1
3
Note: Use scrap packaging to
protect the unit.
1
x5 Legs
LEAF75TLR
Important Notes:
C Top/back x2
Slot back panel
into grooves
Screw
x9
170mm
2 3
