Howdens RKC8199 Manual

HL Corner Storage (LH & RH)

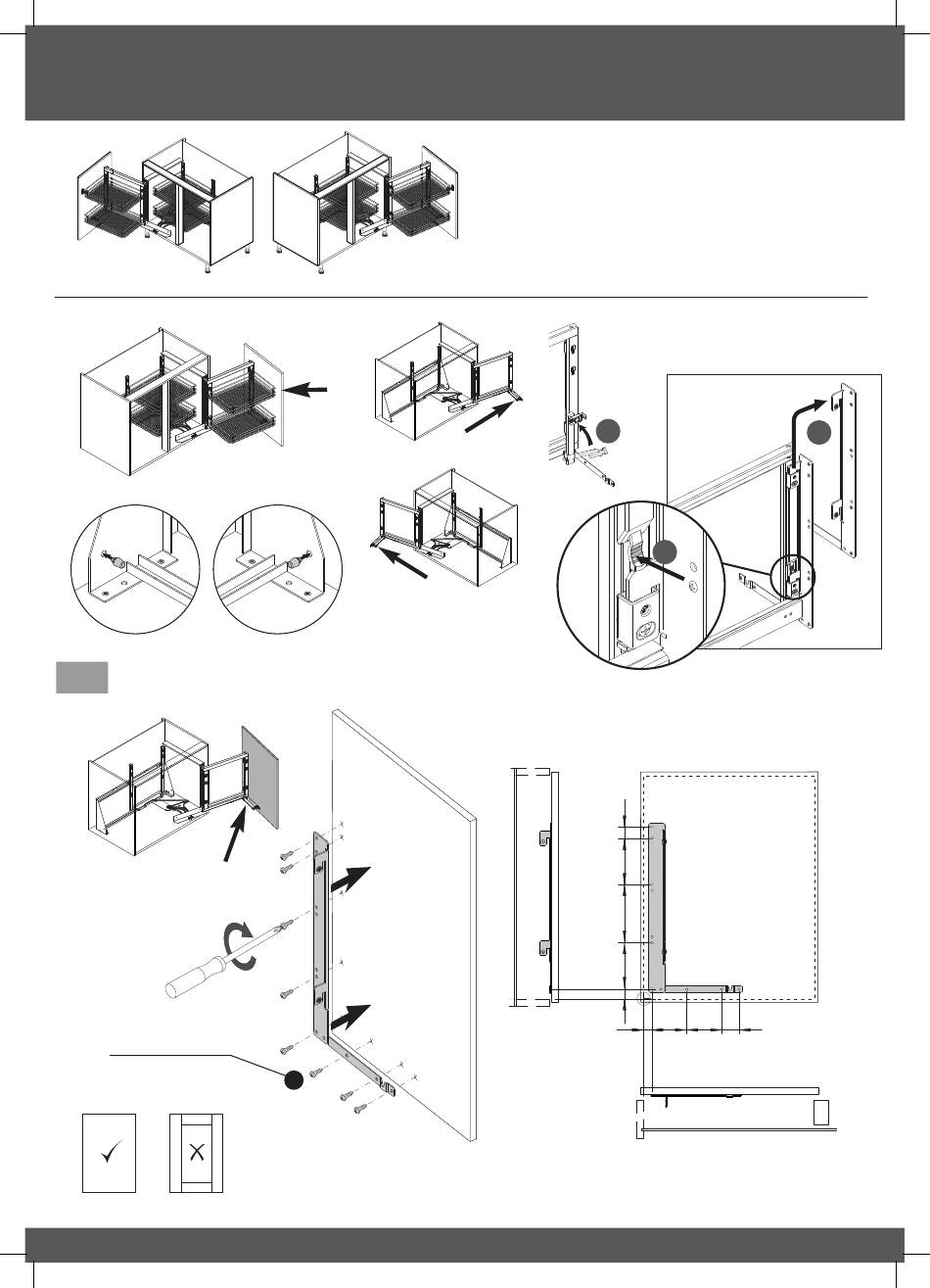

Frontal fitting & adjustment
LH
LH
Using the dimensions shown spike side frame fixing positions
1
NOTE: LH & RH installations are identical (RH shown).
Screw x8
(4.5x16mm csk)
Slab 600mm Shaker
HD516081
RH
RH
Please note: The door bracket arm is not suitable for use
with 600mm shaker door
44010851
Do not use a power driver for this product installation
Maximum load per basket: 8kgs Front/9.5kgs Back
Ensure packaging is disposed of in a safe environmentally friendly way
Assembly for the LH & RH applications is identical
CAUTION: DO NOT LEAN OR SIT ON THE PULL-OUT
Important: Remove door bracket arm first
1
2
32mm
128mm
160mm
128mm
23mm
18mm 96mm 96mm
LEAFVSMC
Important Notes:
3
48mm
LEAFVSMC
