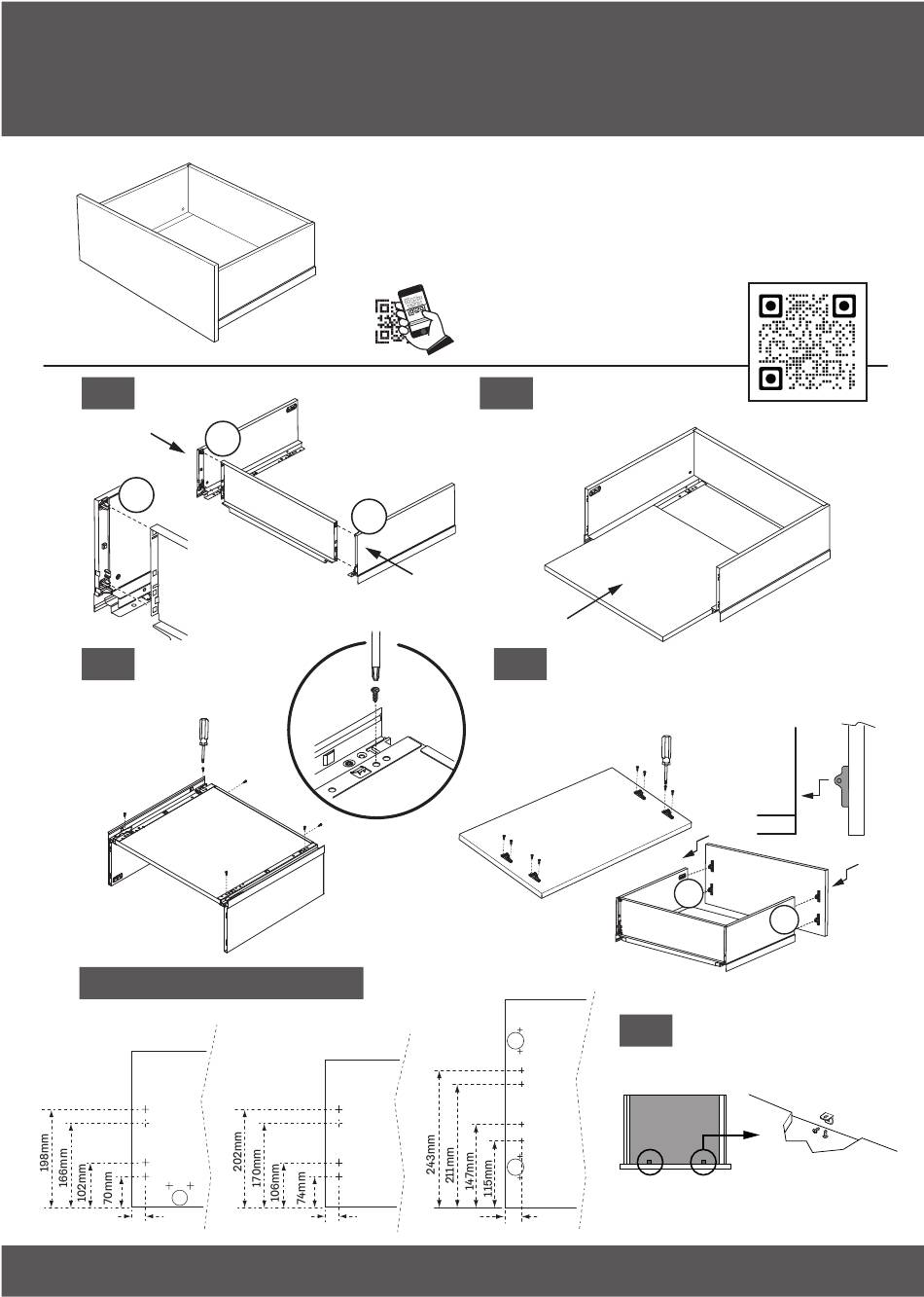

Pan Drawers
Assembly & Installation
1
Fit back and sides
CLICK!
CLICK!
3
Secure base using
screws
Bracket fixing positions
275/356mm
Frontals
32mm
HD121102
Ensure packaging is disposed of in a safe environmentally friendly way
Push to open drawer kits (HYH4409) are available for these drawer boxes
Scan the QR code with your smart
device to access a short installation
& adjustment video
CLICK!
Screw
3.5 x 15mm
csk x6
342mm
Frontal
32mm
LEAFFGV01
Please refer to the kitchen installation manual for
all other aspects of kitchen installation including how to
2
Fit base to sides and back
Note: Drawer bases supplied in separate
pack
4
Fit brackets to the back of drawer front
(see fixing positions below)
Note: Ensure frontal brackets are
positioned the correct way up
390mm
Frontal
5
32mm
Important Notes:
fit internal drawer boxes
Screw
3 x 13mm
csk x8
CLICK!
CLICK!
Fit two brackets to the
underside of the drawer
box to support the base
Screw- 3.5 x 15mm csk x4
Brackets x2

Advertisement

loading
Need help?

Need help?

Do you have a question about the LEAFFGV01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Howdens LEAFFGV01

  • Page 1 Pan Drawers LEAFFGV01 Assembly & Installation Important Notes: Ensure packaging is disposed of in a safe environmentally friendly way Please refer to the kitchen installation manual for all other aspects of kitchen installation including how to fit internal drawer boxes...
  • Page 2 Runner fixing positions 250mm 27mm 4.8 x 15mm csk x8 Primary fixing x2 Secondary fixing x6 27mm 27mm 27mm Note: Side panel fixing locations are identical to existing runner positions shown in your kitchen & handleless installation manuals. Drawer fixing & adjustment Locate drawers onto runners then push into cabinet Drawer box release clips are located under...
