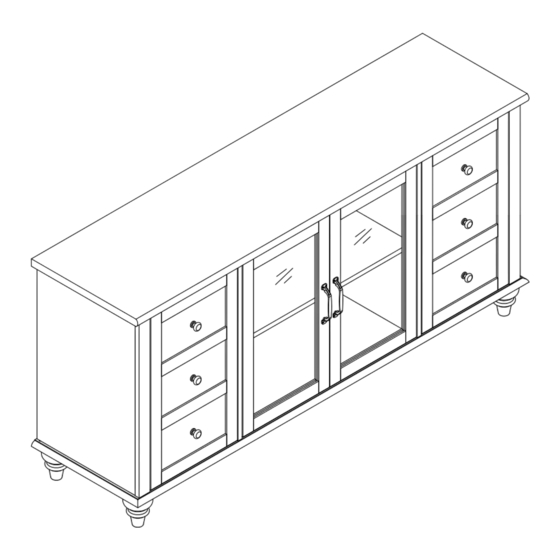

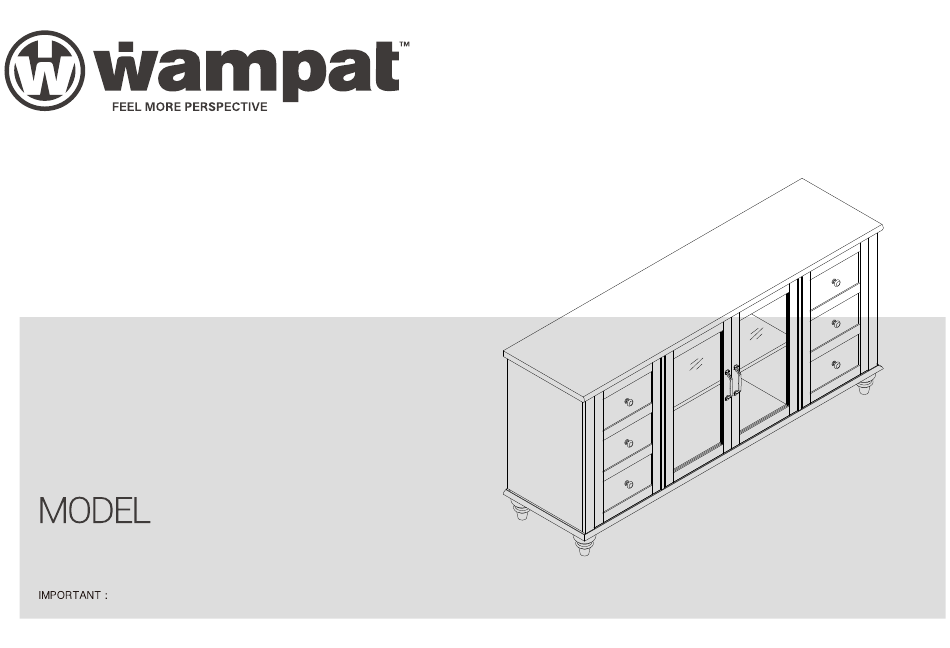

- Page 1 Assembly Instructions W01F3152W-N W01F3153C-N W01F3154A W01F3155L-C Please read this manual carefully before beginning assembly of this product.Keep this manual for future reference.
- Page 4 Screw Plastic wedge Wooden dowel Cam bolt Cam lock Sticker Ø4x40 Ø8x30mm Ø15x11mm Ø6x35mm x 14 x 20 x 12 x 12 x 16 Flat-head screw Handle bolt Handle bolt Handle Glue tube Handle Ø3x16mm Ø5/32x12mm Ø5/32x21mm x 14 Shelf support pin Screw Screw Footpads...
- Page 5 ●The provided glue(H) is to secure When first inserting dowels, locate the wood dowels (A) in place . appropriate hole for the dowel , place a small amount of glue in the hole and insert the dowel . Wipe away excess glue immediately. ●...
- Page 6 x 20 · lnsert dowels (A) into panels (3,4,5,6).
- Page 7 · Attach panels (7) to panels (3,4). · Insert and secure cam locks (C) to panels (3,4) to lock it.
- Page 8 · Attach panels (3,4,5,6) to panel (1). · Insert and secure cam locks (C) to panels (3,4,5,6) to lock it.
- Page 9 ·Carefully slide panels(10,11,12) into place along the back of the assembly.
- Page 10 · Attach panel (2) to panels (3,4,5,6) with screws (E).
- Page 11 · Attach legs (8,15) to panel (2) . · Stick the skid pads (M) on the bottom of the legs (8).
- Page 12 x 14 x 14 · Secure parts (F) with Screws (G).
- Page 13 · Stick stickers (D) on panel (2). x 12 ·Attach panels (9,13) to panels (3,4,5,6) with parts (P).
- Page 14 ·Attach parts (O) to panels (14,16) with screws (N). ·Attach Handles (I,L) to panels (14,16) with bolts (J,K). x 16...
- Page 15 x 16 ·Attach panels (14,16) to panels (3,5) with screws (N).
- Page 16 x 16 ·Attach panels (14,16) to panels (4,6) with screws (N).
- Page 17 · To adjust the vertical height. Loosen the four screws "A" on both hinges. Two of them are usually in slotted holes which mean and you can adjust up or down by a few mm. Then tighten back up. · To adjust depth. Loosen screw"B"...
- Page 18 · Stick stickers (D) on cam locks( C). If the ground is uneven, adjust the foot levelers by rotating them to your preferred height. Once the TV stand is x 12 standing and the levelers are adjusted, make sure the unit does not wobble.
-
Page 19: Final Assembly
WARNING Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall. Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors.
