Summary of Contents for Wampat W07Q5151N

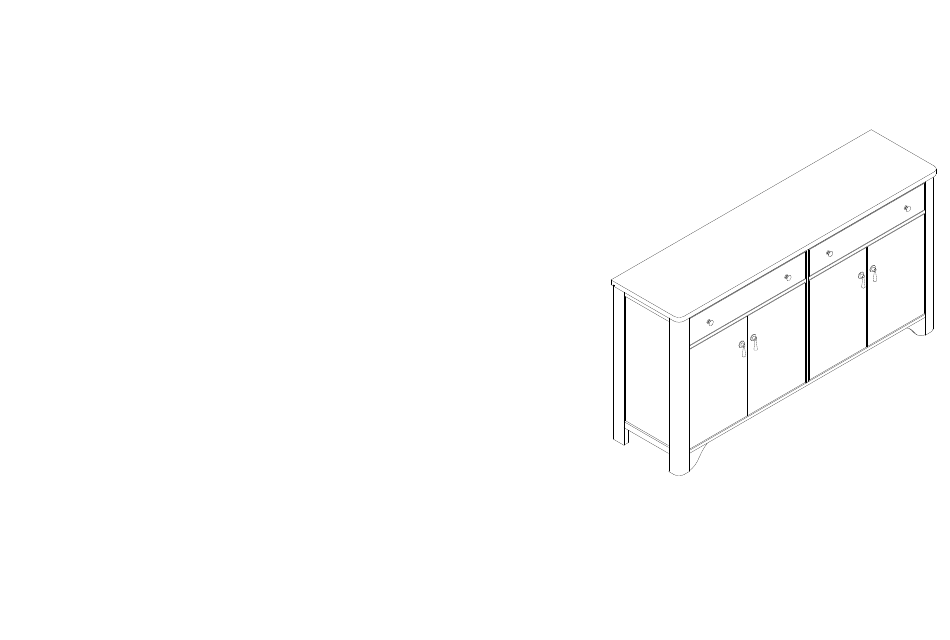

- Page 1 Assembly Instructions...
- Page 4 x 24 x 23 x 30 x 30 x 16 Screw Cam bolt Wooden dowel Cam lock Screw Ø6x24mm Ø3.5X12mm Ø15x9.5mm Ø8x30mm Ø4x30mm bolt M4x20mm x 10 x 10 Screw Wooden dowel Shelf support pin Ø3x16mm Ø6x30mm x 48 Screw Screw Ø4x12mm Ø4x40mm...
- Page 5 · Slides must be separated before assembly. · Set aside after separating slides until required for assembly · Push lever up, then remove runner. ３...
-
Page 6: Mounting Holes
Mounting Holes Mounting Holes 180° · Attach parts (M) to panel (20) using screws (D) correctly. - Page 7 180° · Screw cam bolts (A) into panel (20).
- Page 8 Mounting Holes · Attach parts (M) to panels (2,3) using screws (D) correctly.
- Page 9 x 10 · Screw cam bolts (A) into panels (2,3).
- Page 10 · Screw cam bolts (A) into panel (4). · Insert dowels (C) into panel (4). · Attach panels (5,6) to panel (4), · Insert and secure cam locks (B) to panels (5,6) to lock it.
- Page 11 2 Person Task · Insert dowels (C) into panel (20). · Attach part (4) to panel (20) with screws (R).
- Page 12 2 Person Task · Insert dowel (C) into panel (9). · Attach panel (9) to panel (20). · Insert and secure cam lock (B) to panel (9) to lock it. · Insert dowels (C) into panels (4,5,9). · Attach panel (2) to panels (4,5,9). ·...
- Page 13 2 Person Task · Attach panel (8) to panel (20). · Insert and secure cam lock (B) to panels (8) to lock it. · Insert dowels (C) into panels (4,6,8). · Attach part (3) to panels (4,6,8). · Insert and secure cam locks (B) to panels (4,6,8) to lock it.
- Page 14 · Stick the skid pads (F,G) on the bottom of the legs. · Attach legs (23) to panel (4) with parts (Q)
- Page 15 · Carefully slide panel (11) into place along the back of the assembly. · Stick stickers (U) on holes.
- Page 16 · Screw cam bolts (A) into panel (1). · Insert dowels (C) into panel (1). · Attach panels (7) to panel (1) with screws (E).
- Page 17 2 Person Task · Insert dowels (C) into panels (2,3,20). · Attach part (1) to panels (2,3,20). · Insert and secure cam locks(B) to panels (2,3,20) to lock it. · Adjust parts (23) to level the unit.
- Page 18 x 10 x 10 · Secure parts (P) to panels (1,2,3,4) using screws (N).
- Page 20 x 16 · Attach parts (S) to panels (18,19) with screws (T) correctly.
- Page 21 2 Person Task x 32 · Attach handles (18,19) to panels (2,3,20) with screws (T) correctly.
- Page 22 · Attach handles (H) to panels (18,19) with bolts (J) correctly. · Stick parts (V) on panels (10,21) correctly.
- Page 23 Adjust Height / 高さを調節 Adjust front and back / 前後を調節 Adjust Left and right 左右を調節...
- Page 24 · Insert dowels (L) into panels (17). x 10 · Attach panels (15,16,17) to panels (13) with screws (E). · Carefully slide panels (14) into place along the bottom of the assembly.
- Page 25 · Screw cam bolts (A) into panels (12). · Insert dowels (L) into panels (17). x 10 x 10 · Attach panels (12) to panels (15,16,17). · Insert and secure cam locks (B) to panels (15,16,17) to lock it.
- Page 26 Mounting Holes · Attach parts (M) to panels (15,16) using screws (D) correctly. x 12 · Attach handles (I) to panels (12) with bolts (J).
- Page 27 Slider arm Slider bracket · Assembled the drawers as per diagram Note : If the drawer does not go in smoothly. Press or lift the plastic release lever. Pull out the slider bracket from the slider arm. Loosen the screws on slider brackets, You can adjust up or down by a few mm.
- Page 28 WARNING Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall. Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors.
