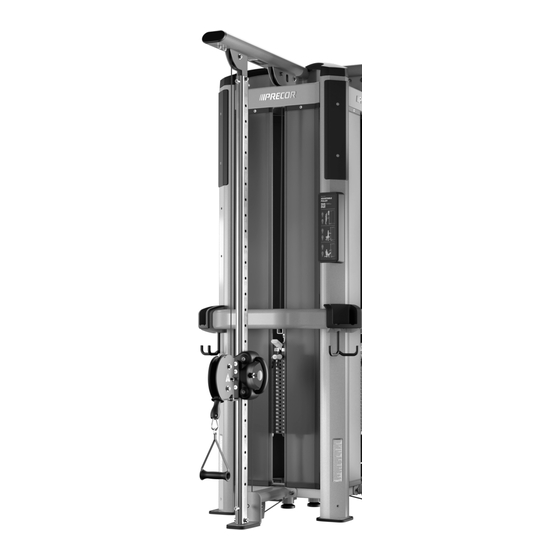

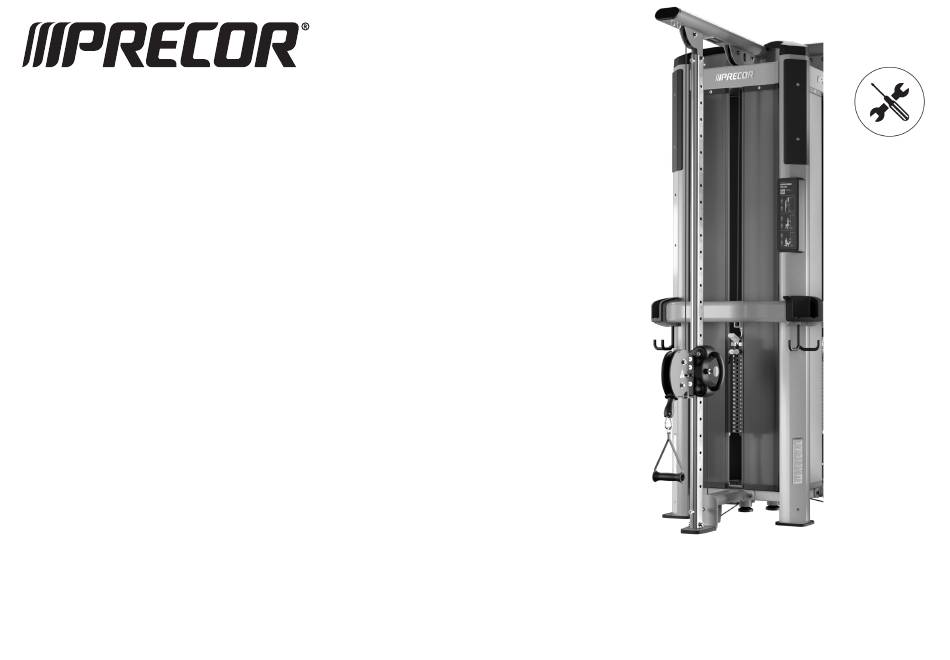

- Page 1 ENGLISH Resolute™ Multi-Stations Adjustable Pulley Station Assembly Guide...
-
Page 2: Assembly Requirements
Pliers - large, medium, and small Single Tower Trademarks Base Frame Resolute is a trademark and Precor is a registered trademark of Peloton Interactive, Inc. All other trademarks belong to their respective owners. Single Tower September 2023 |CW39971-101 ENU | 2... - Page 3 SHCS M8 x 20 mm SHCS M6 x 10 mm SHCS M6 x 10 mm Washer 13 mm Washer 13 mm Top shroud plate, Precor logo Top shroud plate, Precor logo Top shroud corner cover Top frame, single tower Cup tray...
- Page 4 Adjustable Pulley Station Parts List** Part # Name Quantity Part # Name Quantity Adjustable pulley base frame Washer 13 mm Adjustable pulley top frame Nylon lock nut M10 Side frame Nylon lock nut M12 Adjustable handle frame Guide rod Pulley bracket Weight stack top plate Bottom back pulley bracket Weight stack label...
-
Page 5: Tower Assembly
Tower Assembly IMPORTANT Depending on your configuration, you may assemble a quad tower, a single tower, or both. The parts numbers are different for each. Please refer to the Parts List for each tower earlier in this document. Quad Tower Frame Assembly (use Quad Tower Parts Lists) DO NOT tighten fasteners until instructed to do so. - Page 6 Adjustable Pulley Side Frame Assembly ( Adjustable Pulley Parts List) Attach the side frame (notches on sides up) to the tower and secure with 2 M12 x 25 mm SHCS and 2 13 mm washers (Figure 8). Hand-tighten only. FOR QUAD TOWERS ONLY For any other stations going on a quad tower, secure their side frames at this time as well.
- Page 7 146.18 in/12.18 ft (3,712.96 mm/371.296 cm) Figure 14 2. Remove the end caps from the Adjustable Pulley station top frames that will be connected. 3. Attach the end of the connector plates to each top frame with 2 M12 x 30 mm SHCS and 2 13 mm washers (Figure 15).
- Page 8 For the standard weight stack, place a 76 mm weight stack spacer, followed by 152 mm weight stack spacer, and a bumper onto each front guide rod (Figure 17). For the heavy weight stack, place a 76 mm weight stack spacer and a bumper onto each front guide rod (Figure 18).
-
Page 9: Route The Cable
Complete the Adjustable Pulley Assembly Attach the cable to the weight stack by threading the bolt into the top plate assembly until the cable meets ALL the following requirements: Place the 35 mm black washer, then the 35 mm silver washer, into the top •... - Page 10 Stabilizing arms are required in most configurations. If the tower will be bolted Attach the top shroud Precor plate to the top frame and secure it with to the floor, then stabilizing arms are not required. Angled storage hooks are M8 x 20 mm SHCS (from the Quad Tower parts list) (Figure 31).
- Page 11 (use Single Tower Parts List & Adjustable Pulley Parts List) Attach the top shroud Precor plate to the top frame and secure it with M8 x 20 mm SHCS (from the Single Tower parts list) (Figure 32). Attach the left blank top shroud plate and the right blank top shroud plate to the top frame.
-
Page 12: Complete The Assembly
Standards can be changed or updated. Precor recommends that you keep apprised of your local industry standards. Precor shall not be liable for failure to properly secure and bolt strength equipment to the floor.
