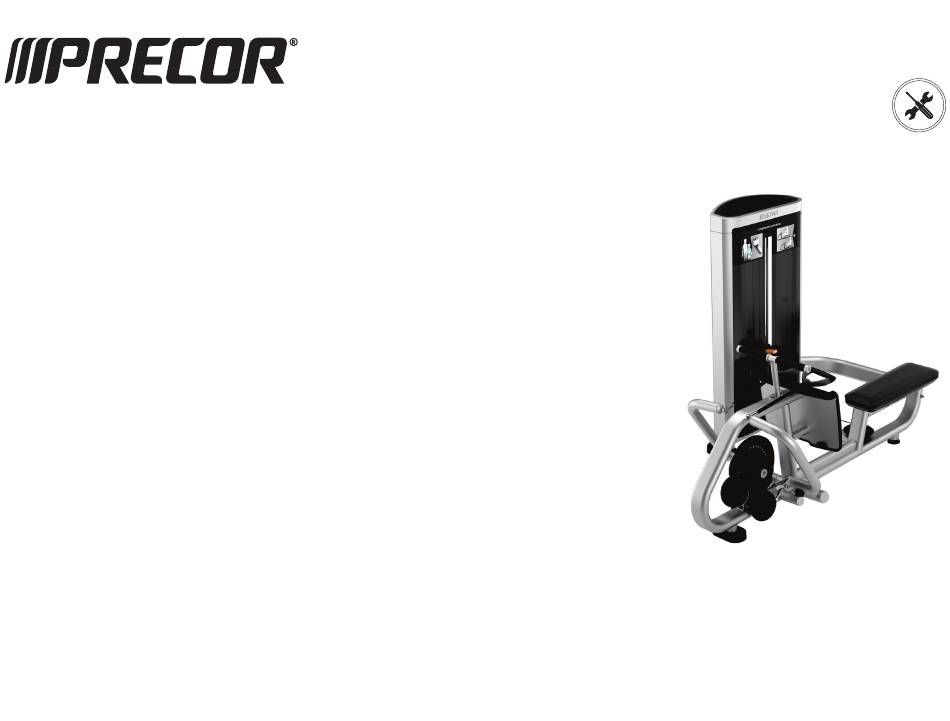

- Page 1 ENGLISH ENGLISH Resolute™ Strength Selectorized Line Diverging Low Row RSL 324 Assembly Guide...
-
Page 2: Assembly Requirements
Assembly Requirements CAUTION At least two people are required to assemble the equipment. DO NOT attempt to assemble this by yourself. Precor recommends that all strength equipment be bolted to the Installation Requirements Unpack the boxes and assemble the equipment close to where you plan to use it. -
Page 3: Parts List
Button head cap screws (BHCS) M10 x 125 mm Button head cap screwt (BHCS) M6 x 15 mm Hex head screws 5/16-inch x 1½-inch Top tray Bumpers Pulley cover Cable retainer ©2019 Precor Inc. | Diverging Low Row RSL 324 | Assembly Guide... -
Page 4: Frame Assembly
M10 x 125 mm BHCS Hand tighten only. They will be removed temporarily in a later step. M12 x 35 mm SHCS Connect lower cross brace to main frame ©2019 Precor Inc. | Diverging Low Row RSL 324 | Assembly Guide... - Page 5 55 ft-lb (75 N-m). Do not tighten the M10 screws installed in step 1 at this time. Torque wrench They will be removed temporarily in a later step. ©2019 Precor Inc. | Diverging Low Row RSL 324 | Assembly Guide...
-
Page 6: Moving Parts
Place washers onto arm shafts. Hold washers centered and secure arms. Remove all labels. M12 x 25 mm SHCS end plugs with sleeves Place end plugs with sleeves on ends of arms. Tap gently with mallet if needed. ©2019 Precor Inc. | Diverging Low Row RSL 324 | Assembly Guide... -
Page 7: Seat Assembly
Tighten to 50 ft-lb (67.7 N-m). the cable retainer. Route the cable around the pulley and then replace the cable retainer. Tighten to 50 ft-lb (67 N-m) of torque. Torque wrench ©2019 Precor Inc. | Diverging Low Row RSL 324 | Assembly Guide... - Page 8 Place the top 10 lb (4.5 kg) weight plates top plate assembly user side. ©2019 Precor Inc. | Diverging Low Row RSL 324 | Assembly Guide...
- Page 9 M10 x 65 mm SHCS Replace the cap to the top of the rod and secure top of rod to weight stack tower frame. M10 nylon lock nut ©2019 Precor Inc. | Diverging Low Row RSL 324 | Assembly Guide...
- Page 10 Remove pin and place into a lower hole on labels. Re-align labels as adhere. Peel the extra label away and rub remaining labels again. Lubricant. Remove any excess with a clean cloth or tissue. ©2019 Precor Inc. | Diverging Low Row RSL 324 | Assembly Guide...
- Page 11 M10 x 40 mm SHCS Place shroud crown on top and secure. Recommended bolt torque is 25 ft-lb (34 N-m). Torque wrench Securely snap top tray into place. ©2019 Precor Inc. | Diverging Low Row RSL 324 | Assembly Guide...
