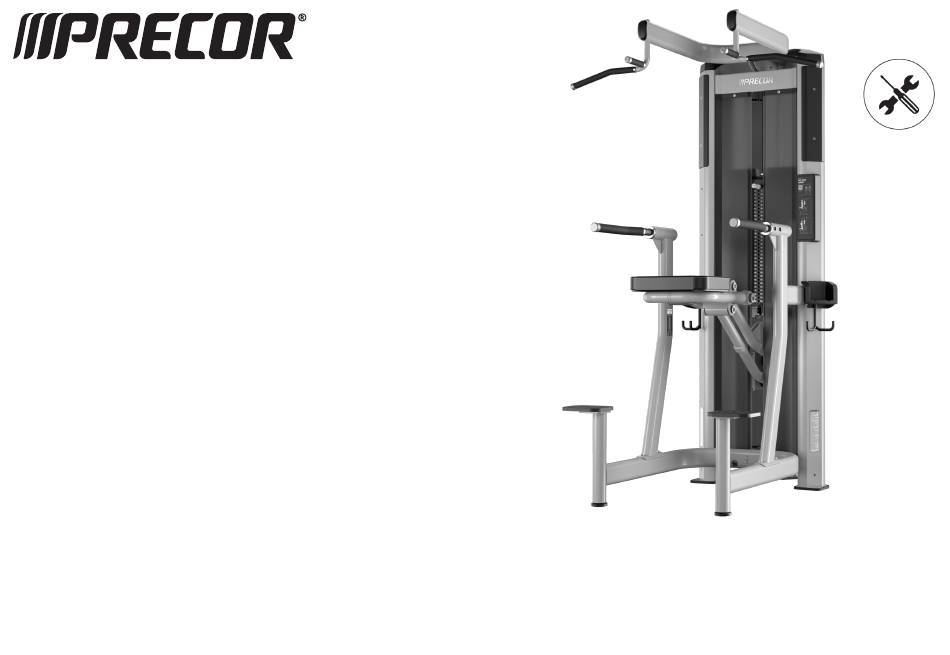

- Page 1 ENGLISH Resolute™ Multi-Stations Dip-Chin Assist Station Assembly Guide...
-
Page 2: Assembly Requirements
Trademarks Single Tower Base Frame Resolute is a trademark and Precor is a registered trademark of Peloton Interactive, Inc. All other trademarks belong to their respective owners. September 2023 | CW39910-101 ENU | 2 ©2023 Peloton Interactive | RMS Dip-Chin Assist Station | Assembly Guide... - Page 3 SHCS M8 x 20 mm SHCS M6 x 10 mm SHCS M6 x 10 mm Washer 13 mm Washer 13 mm Top shroud plate, Precor logo Top shroud plate, Precor logo Top shroud corner cover Top frame, single tower Cup tray...
- Page 4 Dip-Chin Assist Station Parts List Part # Name Quantity Part # Name Quantity Dip-Chin base frame Shroud, front Dip-Chin top frame Shroud bottom retainer Vertical side frame, right Shroud top retainer Vertical side frame, left Knee pad Rear support frame Weight stack top plate Dip-Chin arm assembly Weight plates 10 lbs/4.5 kg...
-
Page 5: Tower Assembly
Tower Assembly IMPORTANT Depending on your configuration, you may assemble a quad Single Tower Frame Assembly (use Single Tower Parts Lists) tower, a single tower, or both. The parts numbers are different for each. Please refer to the Parts List for each tower earlier in this document. Place the single tower ground frame where it is to be installed. - Page 6 Dip-Chin Assist Station Assembly Dip-Chin Assist Rear Support Frame Assembly (use Dip-Chin Parts List) Align the rear support frame over the front of the ground frame and secure the sides to the tower columns with 4 M12 x 25 SHCS and 4 13 mm washers (Figure 6).
- Page 7 Dip-Chin Assist Station Weight Stack Assembly Connect remaining Dip-Chin Assist Frame Parts (Dip-Chin Parts List) The Dip-Chin Assist has a 320 lb/145.5kg weight stack. Connect the dip-chin base frame to the tower ground frame. Secure with 2 M12 x 25 mm SHCS and 2 13 mm washers (Figure 10).
-
Page 8: Route The Cable
Place a guide rod retaining spring into a guide rod cap over the each guide rod. Press down on the cap and snap each rod into place in the holes of the top frame (Figure 14). Figure 17 Route the Cable Unfurl the cable at the top pulley. - Page 9 (use Quad Tower & Dip-Chin Parts List) Attach the top shroud Precor plate to the top frame and secure it with M8 x 20 mm SHCS (from the Quad Tower parts list) (Figure 22). Attach Stabilizing Arms or Angled Hooks to Tower...
- Page 10 (use Single Tower Parts List & Dip- Chin Parts List) Attach the top shroud Precor plate to the top frame and secure it with M8 x 20 mm SHCS (from the Single Tower parts list) (Figure 23). Attach the left blank top shroud plate and the right blank top shroud plate to the top frame.
-
Page 11: Complete The Assembly
Standards can be changed or updated. Precor recommends that you keep apprised of your local industry standards. Precor shall not be liable for failure to properly secure and bolt strength equipment to the floor. - Page 12 September 2023 | CW39910-101 ENU | 12 ©2023 Peloton Interactive | RMS Dip-Chin Assist Station | Assembly Guide...
