ENGLISH

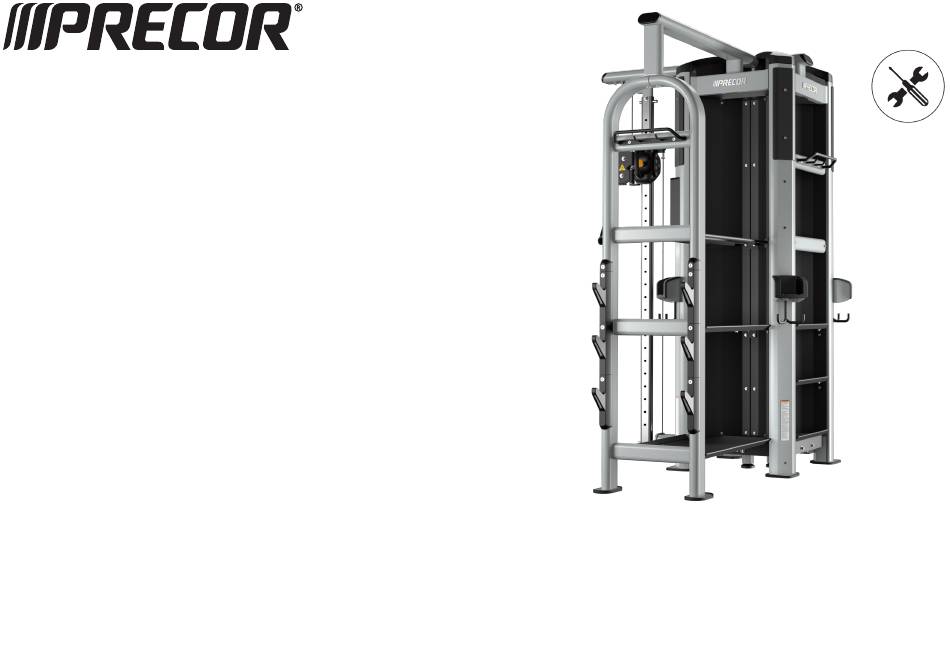

Resolute™ Multi-Stations
Extended and Integrated Storage Stations
Assembly Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Resolute RMS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Precor Resolute RMS

  • Page 1 ENGLISH Resolute™ Multi-Stations Extended and Integrated Storage Stations Assembly Guide...
  • Page 2: Assembly Requirements

    Holder Hook Quad Tower Trademarks Ground Frame Trays Resolute is a trademark and Precor is a registered trademark of Peloton Interactive, Inc. All other trademarks belong to their respective owners. Quad Tower Right Panel Floor Frame September 2023 | CW39981-101 ENU | 2...
  • Page 3 Rear L-bracket SHCS M6 x 10 mm Integrated storage top frame Washer 13 mm Cup holder, left Top shroud plate, Precor logo Cup holder, right Top shroud corner cover SHCS M12 x 25 mm Cup tray SHCS M8 x 15 mm...
  • Page 4 Tower Assembly Part # Name Quantity Quad Tower Frame Assembly (use Quad Tower Parts Lists) Rear L-bracket Cup holder, right DO NOT tighten fasteners until Cup holder, left instructed to do so. Have your assistant hold frame SHCS M12 x 75 mm parts in place during assembly.
  • Page 5 Extended Storage Station Top Frame Assembly Quad Tower Only: Other Top Station Frame Assembly (use Extended Storage Parts List) Connect all top station frames to Quad Tower (use Quad Tower Parts List) Place the extended storage top frame on To attach all other stations to the Quad Tower, follow their assembly guides to top of the tower.
  • Page 6 Integrated Storage Station Assembly Align the holes on the backs of the left and right panels. Secure them together with 4 M8 x 15 mm SCHS and 4 9mm washers (Figure 10). Hand- Integrated Storage Floor Frame (use Integrate Storage Parts List) tighten only.
  • Page 7 Integrated Storage Shelf Assembly Install the lower integrated storage trays and secure each with 3 M8 x 20 mm (use Integrated Storage Parts List) FHCS (Figure 14). Fully tighten. Prepare the lower area for storage trays. At the bottom of the each panel, secure the backs with 2 M8 x 15 mm SCHS and 2 9 mm washers (Figure 12).
  • Page 8 Install the upper and lower shelves and secure each with 4 M8 x 15 mm NOTE If you are not installing an Extended Storage Station, skip to the SHCS and 4 9 mm washers (Figure 16). Fully tighten. Attach Stabilizing Arms or Angled Hooks to Tower section to finish. Extended Storage Station Assembly Extended Storage Floor Frame (use Extended Storage Parts List)
  • Page 9 Extended Storage Shelf Assembly (use Extended Storage Parts List) Align the holes on the backs of the left and right panels. Secure them together with 4 M8 x 15 mm SCHS and 4 9mm washers (Figure 22). Hand- side L-brackets vertically to each Place a tighten only.
  • Page 10 Place 1 extended storage tray on the rear and side L-brackets. Secure with 3 M8 x 20 mm FCHS (Figure 26). Connect the end of the tray to the front frame with 3 M8 x 15 mm SHCS and 3 9 mm large washers (22 mm OD).
  • Page 11 3. Tighten all frame fasteners to the following torques: IMPORTANT It is recommended you complete all stations on the tower M12 fasteners = 55 ft-lb (75 N-m) to this point before proceeding with the remaining steps. M10 fasteners = 32 ft-lb (44 N-m) M8 fasteners = 16 ft-lb (22 N-m) Attach Stabilizing Arms or Angled Hooks to Tower Attach Shrouds and Cup Holders to Tower...
  • Page 12: Complete The Assembly

    Standards can be changed or updated. Precor recommends that you keep apprised of your local industry standards. Precor shall not be liable for failure to properly secure and bolt strength equipment to the floor.
