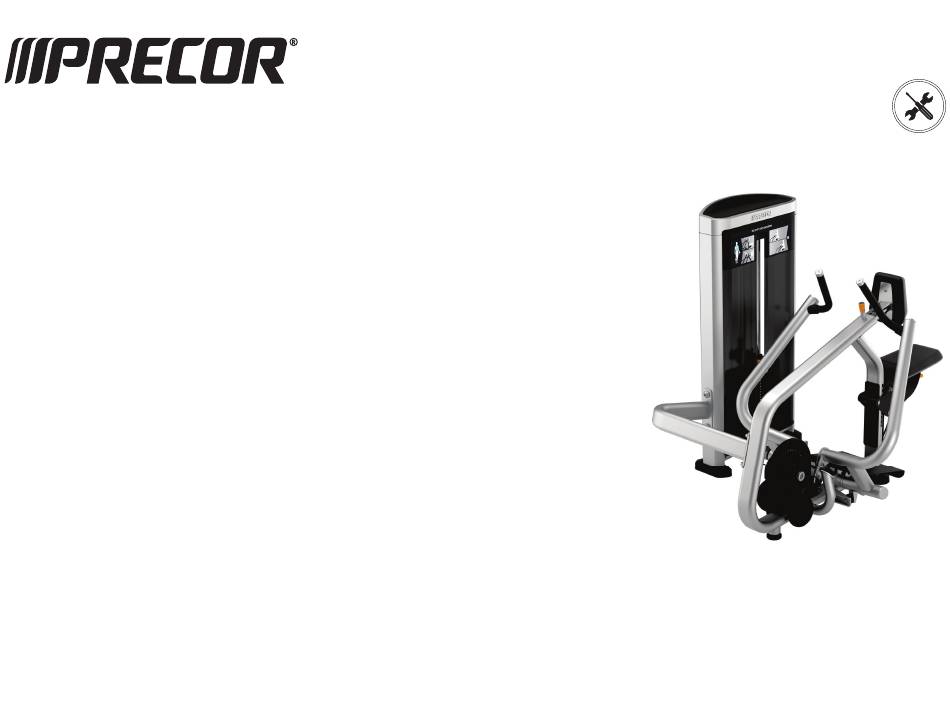

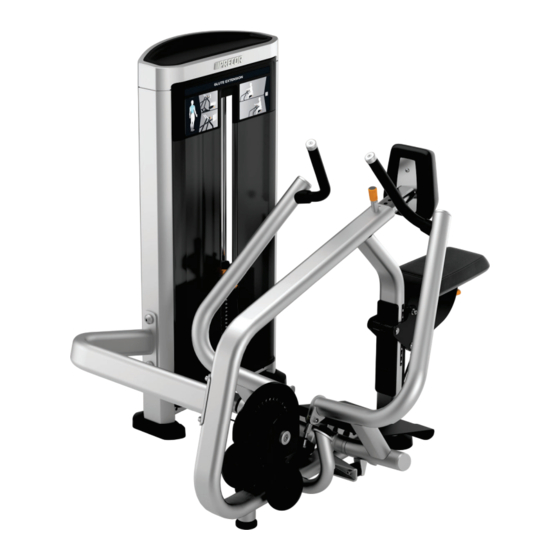

- Page 1 ENGLISH ENGLISH Resolute™ Strength Selectorized Line Diverging Seated Row RSL 310 Assembly Guide...
-
Page 3: Assembly Requirements
Assembly Requirements CAUTION At least two people are required to assemble the equipment. DO NOT attempt to assemble this by yourself. Precor recommends that all strength equipment be bolted to the Installation Requirements Unpack the boxes and assemble the equipment close to where you plan to use it. -
Page 4: Parts List
Socket head cap screws (SHCS) M12 x 25 mm Socket head cap screws (SHCS) M12 x 35 mm Counterweight Socket head cap screws (SHCS) M12 x 130 mm Top tray ©2019 Precor Inc. | Diverging Seated Row RSL 310 | Assembly Guide... -
Page 5: Frame Assembly
M10 x 125 mm BHCS plate. Hand tighten only. These will be removed temporarily in a later step. M12 x 35 mm SHCS Attach lower cross brace to main frame ©2019 Precor Inc. | Diverging Seated Row RSL 310 | Assembly Guide... - Page 6 55 ft-lb (75 N-m). Do not tighten the M10 screws installed in step 1 at this time. Torque wrench They will be removed temporarily in a later step. ©2019 Precor Inc. | Diverging Seated Row RSL 310 | Assembly Guide...
-
Page 7: Moving Parts
Remove all labels. M12 x 25 mm SHCS Torque wrench end plugs with sleeves Slide end plugs with sleeves onto arm ends. Tap gently with mallet if needed. ©2019 Precor Inc. | Diverging Seated Row RSL 310 | Assembly Guide... -
Page 8: Seat Assembly
(ensure the position of the roller tool does not change). Remove tool. hex head screws Attach seat pad to seat assembly with the wider end towards frame. ©2019 Precor Inc. | Diverging Seated Row RSL 310 | Assembly Guide... -
Page 9: Route The Cable
Maximum distance is 25 mm. remove the cable retainer. Route the cable around the pulley and then replace the cable retainer. Tighten to 50 ft-lb (67 N-m) of torque. Torque wrench ©2019 Precor Inc. | Diverging Seated Row RSL 310 | Assembly Guide... - Page 10 Place the top 10 lb (4.5 kg) weight plates top plate assembly user side. ©2019 Precor Inc. | Diverging Seated Row RSL 310 | Assembly Guide...
- Page 11 Torque wrench plate. Let the guide rods drop onto the bolts and fully tighten the bolts. Tighten M10 screws to 32 ft-lb (43 N-m) of torque. ©2019 Precor Inc. | Diverging Seated Row RSL 310 | Assembly Guide...
- Page 12 Re-align labels as necessary and then extra label away and rub remaining labels again. rior Lubricant. Remove any excess with a clean cloth or tissue. ©2019 Precor Inc. | Diverging Seated Row RSL 310 | Assembly Guide...
- Page 13 M10 x 40 mm SHCS Place shroud crown on top and secure. Recommended bolt torque is 25 ft-lb (34 N-m). Torque wrench Securely snap top tray into place. ©2019 Precor Inc. | Diverging Seated Row RSL 310 | Assembly Guide...
-
Page 14: Complete The Assembly
Complete the Assembly equipment. IMPORTANT types. Standards can be changed or updated. Precor recommends that you keep apprised of your local industry standards. Precor shall not be liable for fail- Final Checklist • • • • moderate weight and repeat.
