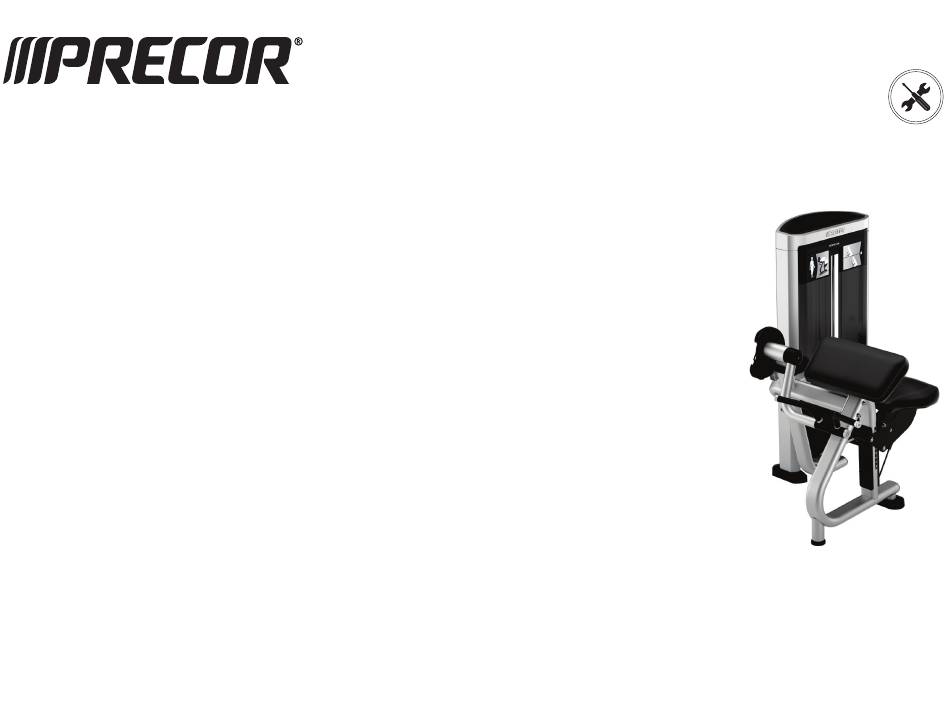

ENGLISH
Resolute™ Strength Selectorized Line
Biceps Curl RSL 204
Assembly Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the Resolute RSL 204 and is the answer not in the manual?

Questions and answers

Related Manuals for Precor Resolute RSL 204

Summary of Contents for Precor Resolute RSL 204

  • Page 1 ENGLISH Resolute™ Strength Selectorized Line Biceps Curl RSL 204 Assembly Guide...

  • Page 2: Assembly Requirements

    Assembly Requirements CAUTION Installation Requirements Required Tools Box cutter Rubber mallet Trademarks ©2019 Precor Inc. | Biceps Curl RSL 204 | Assembly Guide...

  • Page 3: Parts List

    Parts List Part # Name Quantity Part # Name Quantity Main frame Spacer Seat base frame End cap Handlebars Bumpers Kick plate Guide rods Weight stack labels Seat pad ©2019 Precor Inc. | Biceps Curl RSL 204 | Assembly Guide...

  • Page 4: Frame Assembly

    M12 nylon lock nuts Align to the last hole on left under pulley. Insert both guide rod fasteners from user side to align the kick plate. Hand tighten only. later step. ©2019 Precor Inc. | Biceps Curl RSL 204 | Assembly Guide...
  • Page 5 Gently rock the frame to align. Tighten all M12 fasteners to a torque of 55 ft-lb (75 N-m). Do not tighten the M10 screws installed in step 3 at this time. ©2019 Precor Inc. | Biceps Curl RSL 204 | Assembly Guide...

  • Page 6: Moving Parts

    Moving Parts Image Hardware Instructions Align arrows on handlebars and frame to ensure handlebars are on correctly. spacer end cap Remove all arrow labels. Seat Assembly Image Hardware Instructions ©2019 Precor Inc. | Biceps Curl RSL 204 | Assembly Guide...

  • Page 7: Route The Cable

    Route the Cable Image Hardware Instructions arm cam and pulley before you start to route the cable. replace the cable retainer. Tighten to 50 ft-lb (67 N-m) of torque. ©2019 Precor Inc. | Biceps Curl RSL 204 | Assembly Guide...
  • Page 8 Finish the Weight Stack Tower Image Hardware Instructions step 3 of the Frame Assembly. guide rods bumpers top plate assembly user side. ©2019 Precor Inc. | Biceps Curl RSL 204 | Assembly Guide...
  • Page 9 Secure them to the kick plate. Let the guide rods drop onto the bolts and fully tighten the bolts. Tighten M10 screws to 32 ft-lb (43 N-m) of torque. M10 nylon lock nut bumpers frame. M10 nylon lock nut ©2019 Precor Inc. | Biceps Curl RSL 204 | Assembly Guide...
  • Page 10 ALL 41 mm 1.61 inch (41mm). be no more than Tighten the locking bolt against the select stem to 50 ft-lb (81 N-m) of torque. ©2019 Precor Inc. | Biceps Curl RSL 204 | Assembly Guide...
  • Page 11 Install the upper rear and front shrouds . Ensure to hook them M10 x 40 mm SHCS Recommended bolt torque is 25 ft-lb (34 N-m). Securely snap top tray into place. ©2019 Precor Inc. | Biceps Curl RSL 204 | Assembly Guide...
