ENGLISH
Resolute™ Multi-Stations

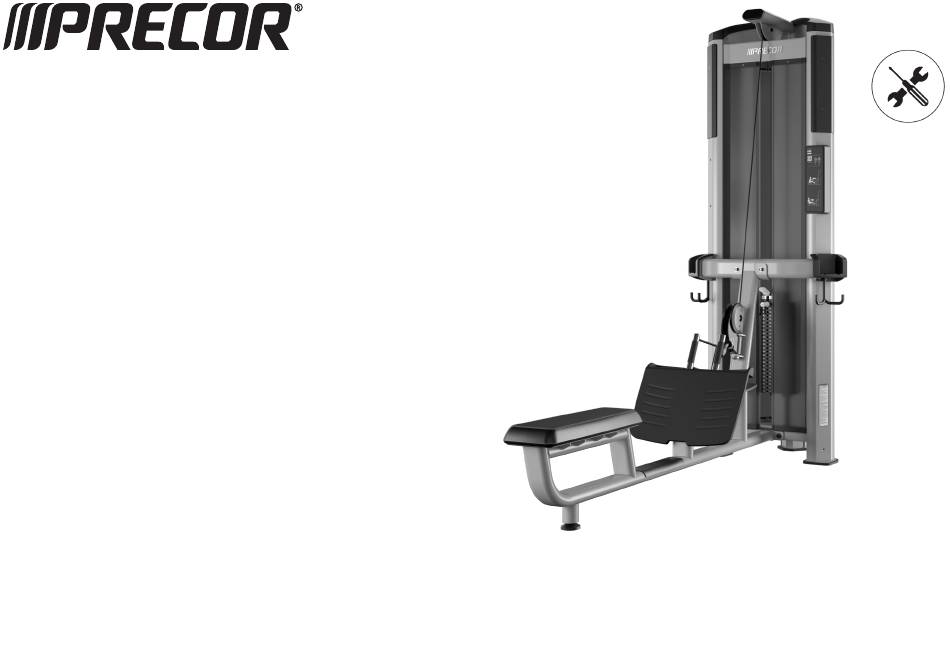

Low Row Station
Assembly Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Resolute RMS Low Row Station and is the answer not in the manual?

Questions and answers

Summary of Contents for Precor Resolute RMS Low Row Station

  • Page 1 ENGLISH Resolute™ Multi-Stations Low Row Station Assembly Guide...
  • Page 2: Assembly Requirements

    Pliers - large, medium, and small Single Tower Base Frame Trademarks Resolute is a trademark and Precor is a registered trademark of Peloton Interactive, Inc. Single Tower All other trademarks belong to their respective owners. September 2023 | CW39916-101 ENU | 2...
  • Page 3 SHCS M8 x 20 mm SHCS M6 x 10 mm SHCS M6 x 10 mm Washer 13 mm Washer 13 mm Top shroud plate, Precor logo Top shroud plate, Precor logo Top shroud corner cover Top frame, single tower Cup tray...
  • Page 4 Low Row Station Parts List Part # Name Quantity Part # Name Quantity Low row base frame Seat pad Low row top frame Weight stack top plate Side frame Weight stack label Foot plate Weight plates 10 lbs/4.5 kg (standard/heavy) 24 / 32 Storage plate Shroud, front...
  • Page 5: Tower Assembly

    Tower Assembly IMPORTANT Depending on your configuration, you may assemble a quad tower, a single tower, or both. The parts numbers are different for each. Please refer to the Parts List for each tower earlier in this document. Quad Tower Frame Assembly (use Quad Tower Parts Lists) DO NOT tighten fasteners until instructed to do so.
  • Page 6 Quad Tower Only: Other Top Station Frame Assembly Low Row Top Frame Assembly (use Low Row Parts List) Connect all top station frames to Quad Tower (use Quad Tower Parts List) Place the low row top frame on top of the tower (regardless if a quad or single To attach all other stations to the Quad Tower, follow their assembly guides to attach tower).
  • Page 7 Low Row Station Weight Stack Assembly Connect remaining Low Row Frame Parts (Low Row Parts List) The Low Row is available with two different weight stack configurations: Connect the low row base frame to the side frame and tower ground frame. •...
  • Page 8 Place the third guide rod into the ground frame bracket hole. Add the Remove the back from the labels. Use the selector pin to hang labels from the add-on weight spacer, a bumper, the add-on weight, and the add-on top weight plate and align holes. Rub labels vigorously so they adhere firmly. weight handle (Figure 16).
  • Page 9: Route The Cable

    Route the Cable Unfurl the cable at the top pulley. Remove the hardware from the pulleys and the pulley covers on the base frame. Route the cable through the pulleys as shown in Figure 21. 1.61 in / 41 mm Replace the pulley covers and hardware.
  • Page 10 Stabilizing arms are required in most configurations. If the tower will be bolted Attach the top shroud Precor plate to the top frame and secure it with to the floor, then stabilizing arms are not required. Angled storage hooks are M8 x 20 mm SHCS (from the Quad Tower parts list) (Figure 27).
  • Page 11 (use Single Tower Parts List & Low Row Parts List) Attach the top shroud Precor plate to the top frame and secure it with M8 x 20 mm SHCS (from the Single Tower parts list) (Figure 28). Attach the left blank top shroud plate and the right blank top shroud plate to the top frame.
  • Page 12: Complete The Assembly

    Standards can be changed or updated. Precor recommends that you keep apprised of your local industry standards. Precor shall not be liable for failure to properly secure and bolt strength equipment to the floor.
