GTD-F5 II BEAM
Moving Head User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the GTD-F5 II BEAM and is the answer not in the manual?

Questions and answers

Related Manuals for GTD GTD-F5 II BEAM

Summary of Contents for GTD GTD-F5 II BEAM

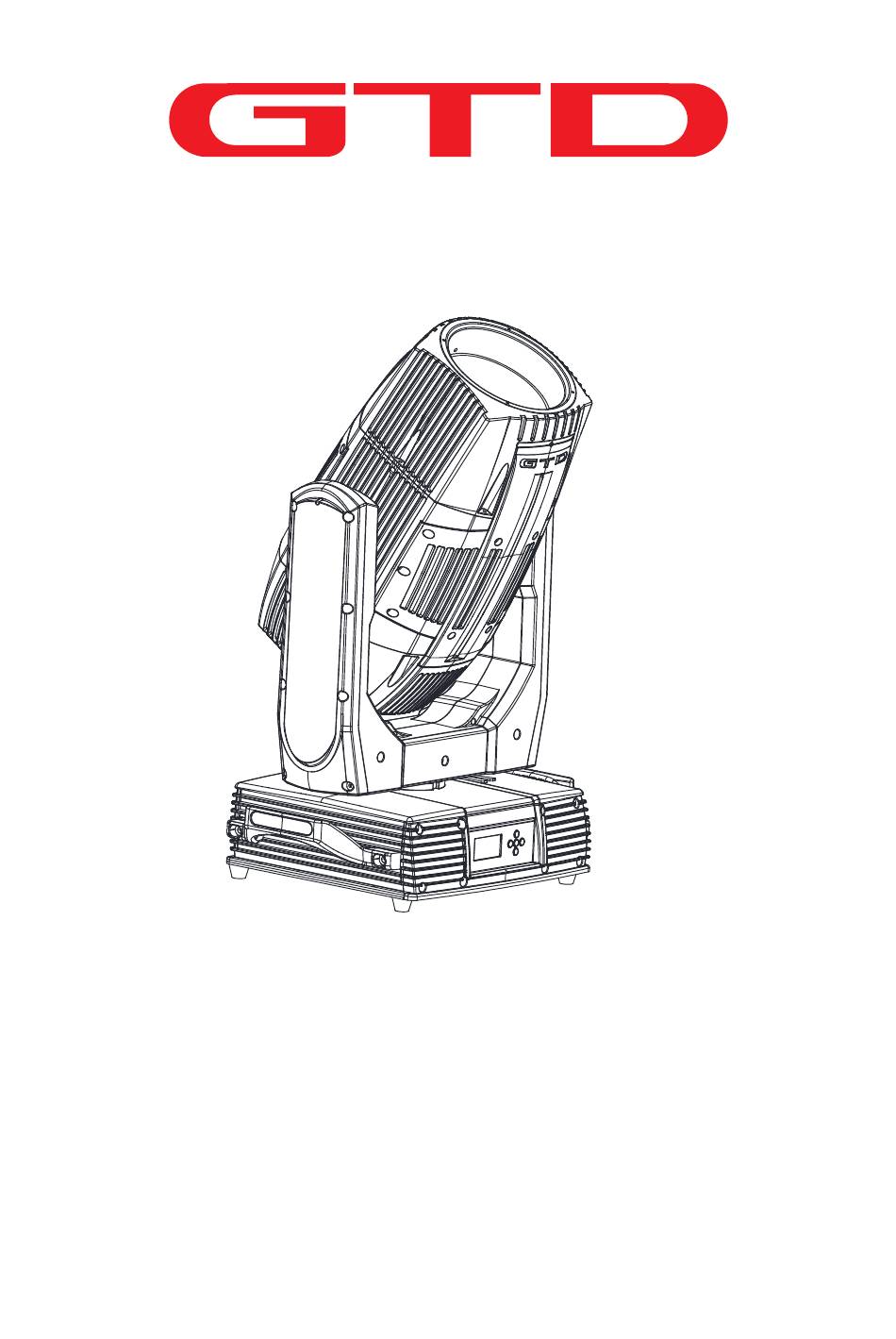

  • Page 1 GTD-F5 II BEAM Moving Head User Manual...
  • Page 2 GTD and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product.
  • Page 3 1.Table of contents 1.Contents..............................3 2.Safety instructions...........................4 3.Product introductions..........................6 3.1 Dimensions .............................6 3.2 Fixture overview ............................7 3.3 Accessories.............................7 4.Packing and shipping..........................8 4.1 Protection lock............................8 4.2 Unpacking..............................8 4.3 Packing after use.............................8 5.Installation..............................9 5.1 Clamps installation...........................9 5.2 Device installation............................9 5.3 Lamp fitting and adjustment........................10 6.Power / Control connection........................11 6.1 Power connection..........................11 6.2 Control connection..........................11...
  • Page 4 2.Safety instructions Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.
  • Page 5 GTD-F5 II BEAM General guidelines  Never open this fixture while in use.  The fixture should be kept clean. DO NOT operate the fixture in extreme heat or dusty environ- ments. Avoid contact with chemical liquid.  Minimum distance to lighted objects must be 49.21feet (15m).
  • Page 6 GTD-F5 II BEAM 3.Production instructions 3.1 Diamension Lighting...
  • Page 7 GTD-F5 II BEAM 3.2 Fixture overview Fixed lens module Zoom lens module Color & gobo wheels module CMY module CMY module Cooling module Cooling module CMY module 3.3 Accessories Item Unit Remark User Manual 3-pins signal line Safety cable φ 5*60cm 7*19 pc with hook Material：Steel...
  • Page 8 GTD-F5 II BEAM 4.Packing and shipping 4.1 Protection lock Pan and tilt locks are equipped to ensure safe transportation. PAN: 4 lock positions are located evenly on the Pan. TILT: 5 lock positions are located on left and right side of the Tilt with the third one in the center.
  • Page 9 GTD-F5 II BEAM 5.Installation 5.1 Clamps installation The fixture can be placed on the stage or mounted on the truss facing any direction. Attach the clamps to the mounting position on the base of the fixture. Warning Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clock- wise to lock.
  • Page 10 GTD-F5 II BEAM 5.3 Lamp fitting and adjustment 1. Disconnect the fixture from AC power. Cool down the fixture. Set the Tilt lock in a horizontal position. 2. Remove the lamp holder lower cover and plug out the proofwater terminal when disassemble the bulb, then loosen the fixed plate and take out the bulb.
  • Page 11 GTD-F5 II BEAM 6.Power/ Control connection 6.1 Power connection Connection method:  L (Live) Brown wire  E (Earth) Yellow / Green bi-color wire  N (Neutral) Blue wire  The voltage and frequency of the power source must be in compliance with the ones marked on the fixture.
  • Page 12 GTD-F5 II BEAM 7.Control panel 7.1 Using the control panel GTD-F5 II BEAM  The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code and functions menu.  Press UP or DOWN to view or select the function menu.
  • Page 13 GTD-F5 II BEAM 8.Technical specification  Optical Light source: PHILIPS 550W MSD Platinum 25 R Expected average lifetime: 1500 h Color temperature correction: 7800K Zoom: 0º-1.7º CRI：Ra≥70 Focus: High-precision glass lenses, electronic linear HD focus Prism: 1 pc tip 8-facet prism,1 pc flat 8-facet prism, 1 pc spherical-surface prism,1 pc 4-facet gradient prism, control the effect independently, make double concentric effect when combine two prism ...
  • Page 14 GTD-F5 II BEAM  Dynamic effects Pan/Tilt movement: 540˚/270˚ Iris: Motorized adjustable iris, wide range of variable pulse effects Strobe: 1-25Hz, synchronized, pulse effects Dimmer: 0-100%, mechanical dimming  Thermal Operating range: 5˚F to 113˚F (-15˚C to +45˚C) Startup range: -13˚F to 113˚F (-25˚C to +45˚C) Storage range: -40˚F to 140˚F (-40˚C to +60˚C)
  • Page 15 GTD-F5 II BEAM 9.Gobos and colors 9.1 Gobo specification All patterns are made onto the metal gobos, and can be customized according to user’s requirement. The customized size is as below: Gobo material Outer dimension Effective dimension Thickness 0.5mm Metal gobo ￠18 mm...
  • Page 16 GTD-F5 II BEAM Color wheel 2 + Y: 6 colors + Y  1: Magenta 2: Blue 3: Brown 4: Claybank 5: Cool color 6: Fluores- C wheel  Lighting...
  • Page 17 GTD-F5 II BEAM 10.Menu structure GTD-F5 II BEAM – M enu Structure Revision: A Valid from firmware version: 1.0 Level 1 Level 2 Level 3 Level 4 Info Run setting Address Setting Address: 001~ XXX Setting the DMX address Value Display Strobe……...
  • Page 18 GTD-F5 II BEAM Fan Speed Smart Control Auto fans speed High Speed Fans high speed Low Speed Fans low speed 1~60 Display Setting Backlight Time Backlight off time Key Lock Min/Disable, Key Lock Setting System Disp Rev Display Rev. 5Min...
  • Page 19 GTD-F5 II BEAM 11.DMX protocol DMX mode DMX value DMX percentage Name Function Standard Basic Extended 0.0% 12.2% Closed 12.5% 24.7% Open 25.1% 37.3% Synchronous strobe from slow to fast 37.6% 49.8% Open Strobe/Shutter 50.2% 62.4% Pulse strobe from slow to fast 62.7%...
  • Page 20 GTD-F5 II BEAM DMX mode DMX value DMX percentage Name Function Standard Basic Extended 7.8% 9.4% Gobo 4 9.8% 11.4% Gobo 5 11.8% 13.3% Gobo 6 13.7% 15.3% Gobo 7 15.7% 18.4% Gobo 8 18.8% 22.4% Gobo 1 shake 22.7% 26.3%...
  • Page 21 GTD-F5 II BEAM DMX mode DMX value DMX percentage Name Function Standard Basic Extended 62.7% 66.3% Built-in program 5 66.7% 70.2% Built-in program 6 70.6% 74.1% Built-in program 7 74.5% 78.0% Special controls Built-in program 8 78.4% 82.0% Built-in program 9 82.4%...
  • Page 22 GTD-F5 II BEAM 12.System wiring diagram SMS8004C-2 SMS8004C-1 SMS8003C Prism1 Prism1 Fixed SMS8003C-1 SMS8003C-1 SMS8003C-1 switch rotaty gobo Ymagnetic Cmagnetic magnetic magnetic magnetic Program Signal input input SMS8004C Mmagnetic Fixed gobo Rotating gobo Prism2 Prism1 rotaty magnetic switch magnetic rotary motor...
  • Page 23 It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting. Notes Damage resulted from dust, smoke, oil or improper use is not covered by warranty.
  • Page 24 GTD-F5 II BEAM Problem Possible Cause Suggested Correction Test the lamp in an adjacent fixture which is known to be Normal end of lamp life. operating properly and then replace as necessary. Whether the function of the relay board is Repair or replace.
  • Page 25 GTD-F5 II BEAM 14.Spare parts list Name Notes Adapter board0212B-1 5801060004A SCB8004A 12 pin 1 Hall plate0802C-1 5801914003A SLS0802C 16 pin 1 GTD-F5 II BEAM-101A10 5809010497A Display board SDI8003C GTD-F5 II BEAM-201A10 Pan scanning driver 5809010 SCR8004D GTD-F5 II BEAM-301A10...
  • Page 26 Guangzhou GTD Lighting Technology Co., Ltd. Tel: +86-20-61808296 Fax: +86-20-61812282 http://www.gtd-lighting.com...
