Summary of Contents for GTD GTD-F8 II BSWP

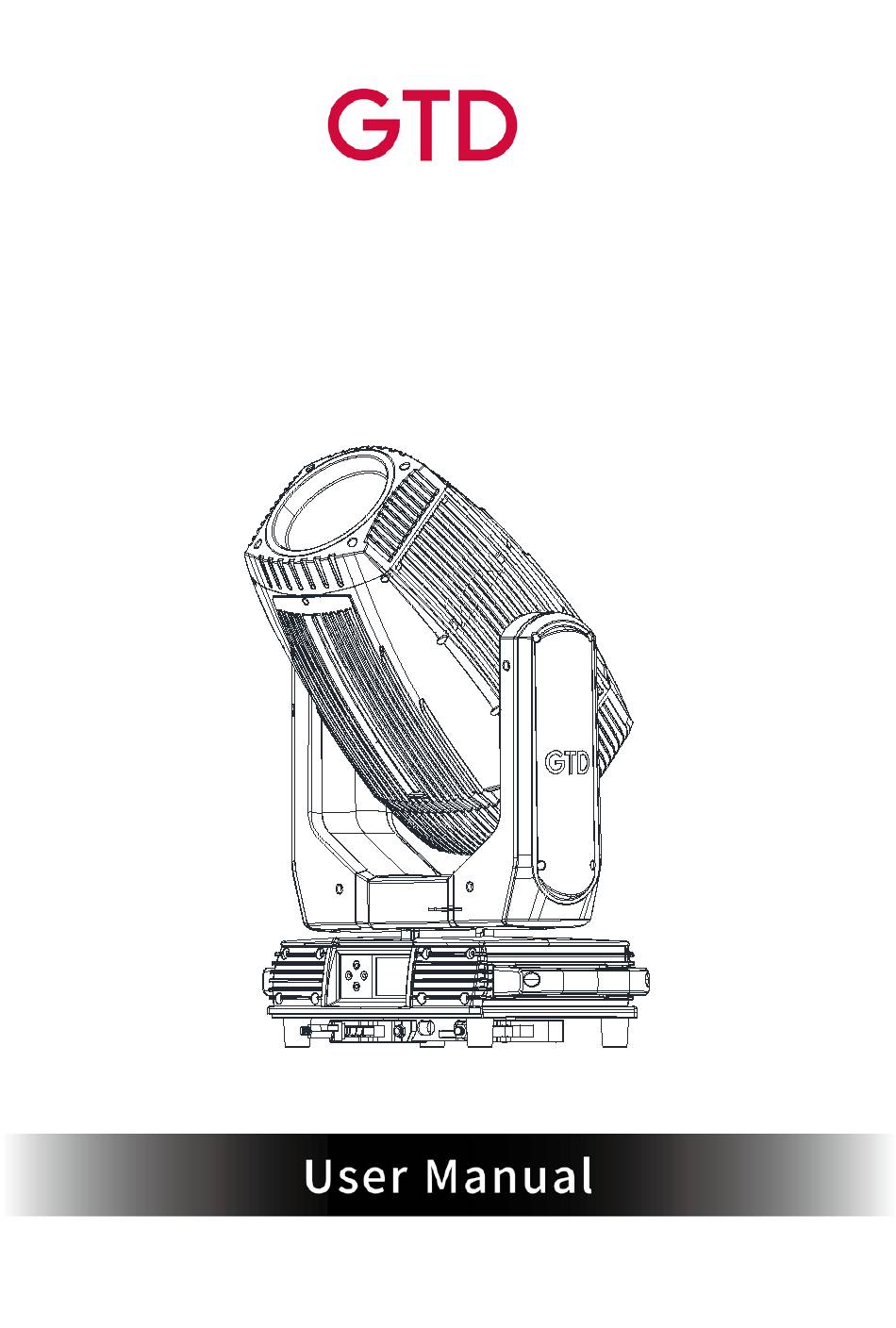

  • Page 1 GTD-F8 II BSWP...
  • Page 2 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    Contents 1. Safety instructions ............................1 2. Product introductions............................ 3 2.1 Dimensions ..............................3 2.2 Fixture overview ............................4 2.3 Accessories ..............................4 3. Packing and shipping ............................. 5 3.1 Protection lock ............................5 3.2 Unpacking ..............................5 3.3 Packing after use ............................5 4.

  • Page 4: Safety Instructions

    Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.

  • Page 5: General Guidelines

    Broken or damaged cables and light source can only be fixed or changed by certified technicians, certified  local distributors or the manufacturer to ensure operational safety. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD  manufactured parts.

  • Page 6: Dimensions

    2. Production instructions 2.1 Dimension 406.1mm （15.99"） 475.3mm （18.71"） 286.1 （11.26"） 701mm （27.6"） 585.6mm （23.05"） 125.2mm 464.4mm 280.0 （4.93"） （18.28"） （11.02"）...

  • Page 7: Fixture Overview

    270° 270° 270° 2.2 Fixture overview...

  • Page 8: Accessories

    Head module Cutting module Framing blade system Heat module 水 Pan-tilt frame Base module 2.3 Accessories Item Unit Remark User Manual Φ5*60cm 7*19 pc with hook Material：Steel Safety cable...

  • Page 9: Packing And Shipping

    3. Packing and shipping 3.1 Protection lock Pan and tilt locks are equipped to ensure safe transportation. PAN: 4 lock positions are located evenly on the Pan. TILT: 7 lock positions are located on left and right side of the Tilt with the third one in the center. Tilt lock Pan lock 3.2 Unpacking...

  • Page 10: Installation

    Lock pan and tilt. Flight case: Wrap the fixture in plastic bags. Hold it by the handles, and then carefully place it inside the flight case along with all the accessories. Close the cover. Do not upside down. Cardboard box: Wrap the fixture in plastic bags. Put it in the packaging foam along with all the accessories. Place the other set of packaging foam on top then carefully put it inside the cardboard box.

  • Page 11: Power/ Control Connection

    122.0mm (4.8") 736.6mm (29") 202mm (7.95") 5. Power/ Control connection 5.1 Power connection Connection method:  L (Live) Brown wire  E (Earth) Yellow / Green bi-color wire  N (Neutral) Blue wire  The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually.

  • Page 12: Testing

    Connect the fixture to AC power. Check if the lamp is on and the fixture is independently controllable before putting into operation. 6. Control panel 6.1 Panel instruction GTD-F8 II BSWP  The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code and functions menu.

  • Page 13: Technical Specification

    value of the setting item, then press the right key to confirm, and press the left key to exit the menu setting item successively until exiting the menu.  Press up and down to set the address, left to exit, right to confirm. ...
  • Page 14 Protocol: DMX-512 RDM Display: LCD  Physical / Installation Weight: 33Kg IP rating: IP66 Material: Aluminum, steel, plastic, iron, copper Mounting points: Two 1/2 rotary folding lamp hooks + attachment points for safety wire  Dynamic effects Pan/Tilt movement: 540˚/270˚ Iris: Motorized adjustable iris 5~100%, wide range of variable pulse effects Strobe: 1-25Hz, synchronized, pulse effects Dimmer: 0-100%, mechanical dimming...

  • Page 15: Gobos And Colors

     Enhanced stability of the fixture due to the wide input voltage AC/DC switching power supply which both reduces the impact of power and voltage fluctuations, and removes the restriction of voltage and frequency variations in different countries.  Sleep mode: uses the most advanced technology to remotely activate sleep mode. When the fixture is disconnected from signal, the sleep mode is enabled automatically to make it more stable and safer.

  • Page 16: Colors

    Fixed gobo wheel Rotating gobo wheel Effect wheel 8.3 Colors One color wheel: 6 colors, split color, CW/C CW rotation, “Rainbow effect” in both directions...

  • Page 17: Menu Structure

    Ra≥70 1: Red 2: Orange 3: Green 4: Blue 5: Fluorescent color 6: CRI Cutting effect CYAN YELLOW MAGENTA 9. Menu structure Level 4 Info Level 1 Level 2 Level 3...
  • Page 18 Address Setting Address: 001~ XXX Setting the DMX address setting Value Display Pan ……，All，Off Display the channel value Auto-Program Master /Slave Run auto program in master or slave Time Info Since power on XXXXXX Hour Since power on time Total Time XXXXXX Hour Product total run time Last Time...
  • Page 19 Wireless transfer DMX data Wireless Reset to another Wireless reset Restore Default Yes/No Restore to default value Product Select - Password- GTD xxx xxx xxx Product Name Select Dimmer Mode Mode1/2/3 Dimmer curve mode select Reset System Reset System reset ColorReset...
  • Page 20 Mode3 Program Select Prog. Program Unit 1 Program 1 ~10 Choose build-in program for Edit slave 1 Program Unit 2 Program 1 ~ 10 Choose build-in program for Program Unit 3 Program 1 ~ 10 slave 2 Choose build-in program for slave 3 Program Edit Auto-Program1...

  • Page 21: Dmx Protocol

    10. DMX Protocol Standard Default Standard Name DMX value DMX percentage Function (37ch) Value 0.0% 100.0% 0(0%) 65535 0.0% 100.0% Pan, fine (LSB) 0.0% 100.0% Tilt Tilt (50.0%) 65535 0.0% 100.0% Tilt, fine (LSB) Scan 0.0% 100.0% Scan speed from fast to slow 0(0%) speed 0.0%...
  • Page 22 18.8% 26.3% Color 3 26.7% 34.1% Color 4 34.5% 42.0% Color 5 42.4% 49.8% Color 6 Color continous rotation CW 50.2% 73.3% from slow to fast 73.7% 76.5% Stop Color continous rotation CCW 76.9% 100.0% from slow to fast 0.0% 2.7% Open 3.1%...
  • Page 23 0.0% 3.1% Open 3.5% 6.3% Gobo 1 6.7% 9.4% Gobo 2 9.8% 12.5% Gobo 3 12.9% 15.7% Gobo 4 16.1% 18.8% Gobo 5 19.2% 22.0% Gobo 6 22.4% 25.1% Gobo 7 25.5% 28.6% Gobo 1 shake Rotating 29.0% 32.2% Gobo 2 shake gobo 0(0%) wheel...
  • Page 24 Blade1 Blade1 position from outside to 0.0% 100.0% 0(0%) Positi. inside Blade1 Blade1 degree from positive to 0.0% 100.0% 0(0%) Degree negative Blade2 Blade2 position from outside to 0.0% 100.0% 0(0%) Positi. inside Blade2 Blade2 degree from positive to 0.0% 100.0% 0(0%) Degree...
  • Page 25 32.2% 34.1% Built-in blade macro 11 34.5% 36.5% Built-in blade macro 12 36.9% 38.8% Built-in blade macro 13 39.2% 41.2% Built-in blade macro 14 41.6% 43.5% Built-in blade macro 15 43.9% 45.9% Built-in blade macro 16 46.3% 48.2% Built-in blade macro 17 48.6% 50.6% Built-in blade macro 18...
  • Page 26 0.0% 49.8% Prism indexed Prism continous rotation CW 50.2% 73.3% from slow to fast Prism 0(0%) rotation 73.7% 76.5% Stop Prism continous rotation CCW 76.9% 100.0% from slow to fast 0.0% 12.2% Frost 0(0%) Frost zoom from smallest to 12.5% 100.0% biggest 0.0%...
  • Page 27 74.5% 78.0% Built-in program 7 78.4% 82.0% Built-in program 8 82.4% 85.9% Built-in program 9 86.3% 89.8% Built-in program 10 90.2% 90.6% 4kHz - dimmer frequency 91.0% 91.4% 12kHz - dimmer frequency 91.8% 92.2% 20kHz - dimmer frequency 92.5% 93.7% Reserved 94.1% 94.5%...
  • Page 28 87.8% 100.0% Open No light → Full light Intensity 0.0% 100.0% 0(0%) White → Full cyan Cyan 0.0% 100.0% 0(0%) White → Full magenta Magenta 0.0% 100.0% 0(0%) White → Full yellow Yellow 0.0% 100.0% 0(0%) 0.0% 5.9% CMY color macro off CMY synchronous color from 6.3% 52.9%...
  • Page 29 19.6% 21.6% Gobo 8 22.0% 25.1% Gobo 1 shake 25.5% 28.6% Gobo 2 shake 29.0% 32.2% Gobo 3 shake 32.5% 35.7% Gobo 4 shake 36.1% 39.2% Gobo 5 shake 39.6% 42.7% Gobo 6 shake 43.1% 46.3% Gobo 7 shake 46.7% 49.8% Gobo 8 shake Gobo wheel continous rotation...
  • Page 30 73.7% 76.5% Stop Gobo wheel continous rotation 76.9% 100.0% CCW from slow to fast 0.0% 49.8% Gobo rotation/positioning Gobo Gobo continous rotation CCW 50.2% 73.3% rotating/ from slow to fast positioni 0(0%) 73.7% 76.5% Stop ng gobo wheel Gobo continous rotation CW 76.9% 100.0% from slow to fast...
  • Page 31 Blade macro Off(Degree 0.0% 5.9% operation mode) 6.3% 8.2% Built-in blade macro 0 8.6% 10.6% Built-in blade macro 1 11.0% 12.9% Built-in blade macro 2 13.3% 15.3% Built-in blade macro 3 15.7% 17.6% Built-in blade macro 4 18.0% 20.0% Built-in blade macro 5 20.4% 22.4% Built-in blade macro 6...
  • Page 32 Open → Close Iris 0.0% 100.0% 0(0%) 0.0% 12.2% Off / Open iris Effect - Synchronous open from 12.5% 24.7% slow to fast 25.1% 37.3% Effect - Synchronous off Iris Effect - Random open from slow 0(0%) macro 37.6% 49.8% to fast 50.2% 62.4%...
  • Page 33 All gobo motor reset after 5 31.4% 34.9% seconds 35.3% 38.8% Strobe reset after 5 seconds 39.2% 42.7% Blade motor reset after 5 seconds 43.1% 46.7% Other motor reset after 5 seconds 47.1% 47.5% Reserved 47.8% 48.2% short distance(10m) auto focus 48.6% 50.6% Reserved...
  • Page 34 Extended Default Extended Name DMX value DMX percentage Function (53ch) Value 0.0% 100.0% 0(0%) 65535 0.0% 100.0% Pan, fine (LSB) 0.0% 100.0% Tilt Tilt (50.0%) 65535 0.0% 100.0% Tilt, fine (LSB) Scan 0.0% 100.0% Scan speed from fast to slow 0(0%) speed 0.0%...
  • Page 35 Warm → Cold 0.0% 100.0% 0(0%) 65535 0.0% 100.0% CTO fade, fine (LSB) 0.0% 2.7% Open 3.1% 10.6% Color 1 11.0% 18.4% Color 2 18.8% 26.3% Color 3 26.7% 34.1% Color 4 Color 34.5% 42.0% Color 5 0(0%) wheel 42.4% 49.8% Color 6 Color continous rotation CW from...
  • Page 36 Gobo wheel continous rotation CW 50.2% 73.3% from slow to fast 73.7% 76.5% Stop Gobo wheel continous rotation 76.9% 100.0% CCW from slow to fast 0.0% 3.1% Open 3.5% 6.3% Gobo 1 6.7% 9.4% Gobo 2 9.8% 12.5% Gobo 3 12.9% 15.7% Gobo 4...
  • Page 37 Gobo rotation/positioning, fine 65535 0.0% 100.0% (LSB) 0.00% 12.16% Open Effect 12.55% 49.80% Effect wheel rotation/positioning 0(0%) Wheel Effect wheel rotates back and forth 50.20% 100.00% from slow to fast Blade1 position from outside to 0.0% 100.0% Blade1 inside 0(0%) Positi.
  • Page 38 Framing Framing Rotation speed from fast Rotation 0.0% 100.0% 0(0%) to slow speed Blade macro Off(Degree operation 0.0% 5.9% mode) 6.3% 8.2% Built-in blade macro 0 8.6% 10.6% Built-in blade macro 1 11.0% 12.9% Built-in blade macro 2 13.3% 15.3% Built-in blade macro 3 15.7% 17.6%...
  • Page 39 Blade macro off(Position operation 65.1% 67.1% mode) Blade macro random from slow to 67.5% 100.0% fast Open → Close Iris 0.0% 100.0% 0(0%) 0.0% 12.2% Off / Open iris Effect - Synchronous open from 12.5% 24.7% slow to fast 25.1% 37.3% Effect - Synchronous off Iris...
  • Page 40 11.8% 15.3% Color wheel half color switch 15.7% 19.2% Color wheel random positioning 19.6% 23.1% Reserved 23.5% 27.1% Reset all motor after 5 seconds All color motor reset after 5 27.5% 31.0% seconds All gobo motor reset after 5 31.4% 34.9% seconds 35.3%...

  • Page 41: System Wiring Diagram

    96.5% 96.9% Fan smart mode 97.3% 97.6% Fan high speed mode 98.0% 98.4% Fan silent mode 98.8% 99.2% Reserved 99.6% 100.0% Reserved 11. System wiring diagram...
  • Page 42 PWM1 PWM1 PWM2 M5 M4 M3 M2 M1 JE1 JE2 JB3 JB2 JB1 M6 M7 M8 M9 M10...

  • Page 43: Maintenance And Troubleshooting

    It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting. Notes: Damage resulted from dust, smoke, oil or improper use is not covered by warranty.
  • Page 44 Problem Possible Cause Suggested Correction wrong response to Open circuit or short circuit fault in the DMX Replace DMX cables as required. the commands of cables. the control system Ensure the address in “Run setting > Address Wrong DMX address for the fixture in the Setting >Address”...
  • Page 45 Problem Possible Cause Suggested Correction and draft conditions. The ballast incorporate internal automatic- resetting thermal protection, which deactivates the ballast should it overheat. Normal operation Overheat ballast resulting in premature failure resumes once the ballast has cooled sufficiently. Burned-out or failing lamps, or high or damaged ballast.
  • Page 46 Problem Possible Cause Suggested Correction Test the lamp in an adjacent fixture which is Normal end of lamp life known to be operating properly and then replace as necessary Follow the instructions stated in this user Excessive dusts or smudges on the rotating Wrong color manual to clean the rotating gobo wheel or color gobo wheel or color wheel.
