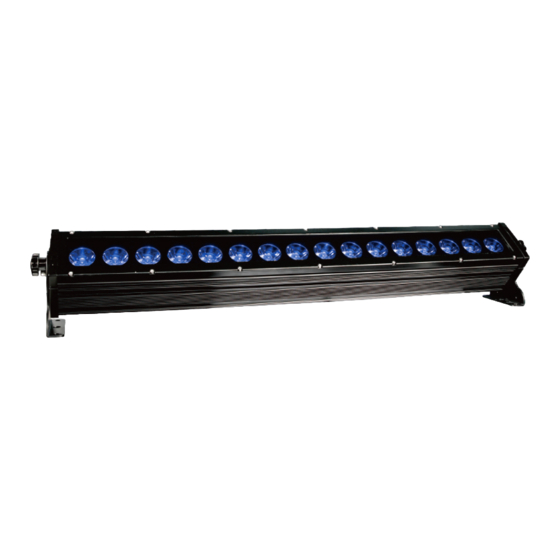

- Page 1 LED Effect Light GTD-L2016P User’s Manual Guangzhou GTD Lighting Technology Co., Ltd. Tel: +86-20-61808296 Fax: +86-20-61812282 www.gtd-lighting.com http://...
- Page 2 © 2017 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
GTD-L2016P User Manual Contents Safety instructions ..................................3 General guidelines ..................................4 Packing and shipping .................................. 5 Unpacking ....................................... 5 Packing after use..................................... 5 Accessories ....................................5 Product introduction .................................. 6 Installation ....................................6 Device installation ..................................6 Power / Control connection ............................... 7 Power connection ................................... -
Page 4: Safety Instructions
GTD-L2016P User Manual Safety instructions WARNING! Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual. -
Page 5: General Guidelines
Broken or damaged cables can only be fixed or changed by certified technicians, certified local distributors or the manufacturer to ensure operational safety. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured parts. ... -
Page 6: Packing And Shipping
GTD-L2016P User Manual Packing and shipping Unpacking Notes All products are quality controlled and checked for any faults before they are dispatched to customers. If the fixture is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim. -
Page 7: Product Introduction
GTD-L2016P User Manual Product introduction DMX input Power indicator DMX output Power output DMX indicator MENU, UP, DOWN, ENTER buttons Power input Cast aluminm cover LED lens 10 Bracket 11 Manual adjusting screw Installation Device installation This fixture can be installed on stage or mounted in any directions. -
Page 8: Power/ Control Connection
GTD-L2016P User Manual Power/ Control connection Power connection Connection method: L (Live) Brown wire E (Earth) Yellow / Green bi-color wire N (Neutral) Blue wire The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. Please apply series connection when many sets of fixtures are connected to the power source to avoid heavy load to the power source. -
Page 9: Control Panel
GTD-L2016P User Manual Control panel The control panel with buttons and digital display can access the function menu and configure the fixture easily. Press MENU to check or modify the functions of the fixture; Press UP or DOWN to view or select the function menu. -
Page 10: Menu Structure
GTD-L2016P User Manual Menu structure L2016P – Menu Structure Revision: A Valid from firmware version: 1.0 Level 1 Level 2 Level 3 Level 4 Info Addr AXXX A001 Setting the DMX address MSTR/ ALON Running build-in program as the master or the slave... -
Page 11: Dmx Protocol
GTD-L2016P User Manual DMX protocol L2016P - DMX Protocol Revision: A Valid from firmware version: 1.0 DMX mode Default Name DMX value DMX percentage Function Standard Basic Value (72ch) (11ch) 0.0% 12.2% Closed 12.5% 24.7% Open 25.1% 49.8% Synchronous strobe from slow to fast... - Page 12 GTD-L2016P User Manual DMX mode Default Name DMX value DMX percentage Function Standard Basic Value (72ch) (11ch) Green 6 0.0% 100.0% No light → Full light 0(0%) Blue 6 0.0% 100.0% No light → Full light 0(0%) white 6 0.0% 100.0%...
- Page 13 GTD-L2016P User Manual DMX mode Default Name DMX value DMX percentage Function Standard Basic Value (72ch) (11ch) white 15 0.0% 100.0% No light → Full light 0(0%) Red 16 0.0% 100.0% No light → Full light 0(0%) Green 16 0.0% 100.0%...
- Page 14 GTD-L2016P User Manual DMX mode Default Name DMX value DMX percentage Function Standard Basic Value (72ch) (11ch) 37.6% 39.2% Flash effect 17 39.6% 41.2% Flash effect 18 41.6% 43.1% Flash effect 19 43.5% 45.1% Flash effect 20 45.5% 47.1% Flash effect 21 47.5%...
-
Page 15: Technical Specification
GTD-L2016P User Manual Technical specification Optical Light source: LED 20W (RGBW 4-in-1), quantity: 16pcs Expected average lifetime: 50000 hours Beam angle: 6°(50% peak angle) RGBW linear color mixing, individually controllable which can make beautiful flash effects. -
Page 16: Cleaning And Maintenance
GTD-L2016P User Manual Safety: EN 60598-2-17:1989/A2:1991 Photometric Cleaning and maintenance It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting. -
Page 17: Troubleshooting
GTD-L2016P User Manual Troubleshooting Possible Cause Suggested Correction Problem Power switch not turned on. Turn on power switch. Locate the blown fuse. Remove the broken fuse. Insert a Take out the fuse and check if it is blown. replacement fuse of the correct amperage. -
Page 18: System Wiring Diagram
GTD-L2016P User Manual System wiring diagram LJB0523C LJB0523C LCR0542B LCR0542B POWER 12V+ 12V- Signal line 1 Signal line 2 ESS170-12PN SDI0516C Water proof socket POWER 12V+ 12V- ESS170-12PN JIN1 Water proof socket GTD-L2016P Spare parts list Item Notes Switching Power Supply 1412050051B ESS170-12PN 2.0 version... - Page 19 GTD-L2016P User Manual Notes: P/N: 1502011061B Time: September 25 , 2017...
