GTD -F5 II BSW User Manual

550w ii moving head
Hide thumbs Also See for GTD-F5 II BSW:
Table of Contents

Advertisement

Quick Links

Download this manual
GTD-F5 II BSW
550W II Moving Head
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTD-F5 II BSW and is the answer not in the manual?

Questions and answers

Related Manuals for GTD GTD-F5 II BSW

Summary of Contents for GTD GTD-F5 II BSW

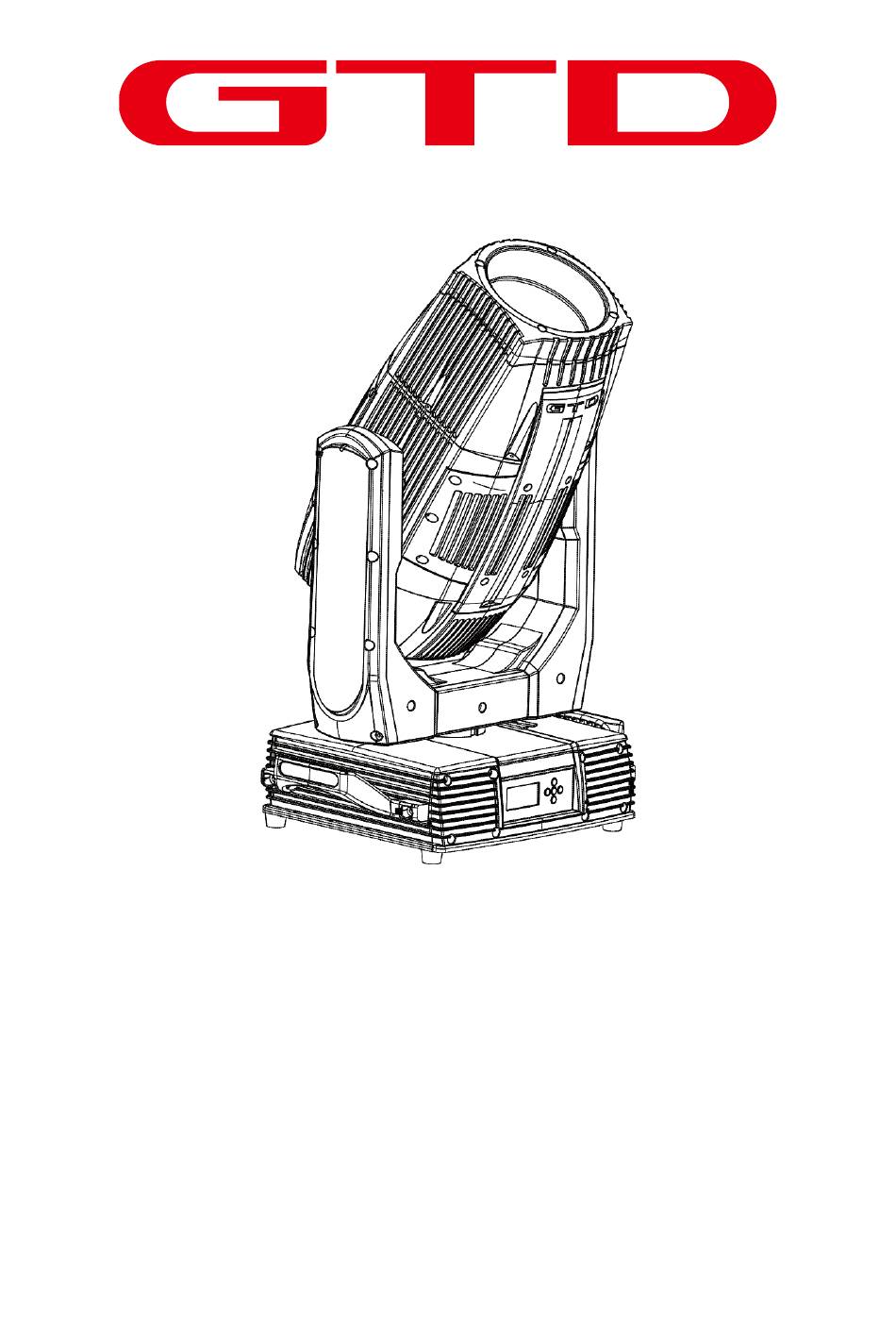

  • Page 1 GTD-F5 II BSW 550W II Moving Head User Manual...
  • Page 2 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    GTD-F5 II BSW Table of contents 1. Safety instructions................................1 2. Product introductions..............................3 2.1 Dimensions................................3 2.2 Fixture overview...............................4 2.3 Accessories................................4 3. Packing and shipping..............................5 3.1 Protection lock................................5 3.2 Unpacking................................5 3.3 Packing after use..............................5 4. Installation..................................6 4.1 Clamps installation..............................6 4.2 Device installation..............................

  • Page 4: Safety Instructions

    Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.

  • Page 5: General Guidelines

    Broken or damaged cables and light source can only be fixed or changed by certified technicians, certified local  distributors or the manufacturer to ensure operational safety. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured  parts.

  • Page 6: Dimensions

    GTD-F5 II BSW 2. Production instructions 2.1 Dimensions...

  • Page 7: Fixture Overview

    GTD-F5 II BSW 2.2 Fixture overview...

  • Page 8: Accessories

    GTD-F5 II BSW 1. Head module 2. Frost module 3. Framing blade system 4. CMY 5. Light module 6. Lamp-holder assembly 7. Pan-tilt frame 8. Base module 2.3 Accessories Item Unit Remark User Manual Clamps 02A+21A 42-52mm Load weight 200KG Safety cable Φ4*60cm 7*19 pc with hook Material：Steel...

  • Page 9: Protection Lock

    GTD-F5 II BSW 3.1 Protection lock Pan and tilt locks are equipped to ensure safe transportation. PAN: 4 lock positions are located evenly on the Pan. TILT: 5 lock positions are located on left and right side of the Tilt with the third one in the center.

  • Page 10: Installation

    GTD-F5 II BSW 4. Installation 4.1 Clamps installation The fixture can be placed on the stage or mounted on the truss facing any direction. Attach the clamps to the mounting position on the base of the fixture. Warning：Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise to lock.

  • Page 11: Lamp Fitting And Adjustment

    GTD-F5 II BSW 4.3 Lamp fitting and adjustment 1. Disconnect the fixture from AC power. Cool down the fixture. Set the Tilt lock in a horizontal position. 2. Remove the lamp holder lower cover and plug out the waterproof terminal when disassemble the bulb, then loosen the fixed plate and take out the bulb.

  • Page 12: Power/ Control Connection

    GTD-F5 II BSW 1. Fitting another type of lamp will cause potential damage to the fixture. Change the lamp before it reaches its lifespan. Read the guidelines in the package carefully when fixing the lamp. 2. To avoid any impact on the beam, do not touch the bulb with your bare hands. The lamp must be kept clean with the use of the clean paper contained in its package 5.

  • Page 13: Testing

    GTD-F5 II BSW resistor between the pin 2 and pin 3) as shown below: 5.3 Testing Connect the fixture to AC power. Check if the lamp is on and the fixture is independently controllable before putting into operation. 6. Control panel 6.1 Panel instruction...

  • Page 14: Technical Specification

    GTD-F5 II BSW Lower 7. Technical specification Optical  Light source: PHILIPS 550W MSD Platinum 25 R Expected average lifetime: 1500 h Color temperature correction: 7800K Zoom: BEAM 1.7° / SPOT 0° -17° / WASH 3.4°～ 48° CRI：Ra≥85 Focus: High-precision glass lenses, electronic linear HD focus Prism: 1 pc tip 16-facet prism，1 pc Symmetry facet prism, prims can be controlled independently ,...
  • Page 15 GTD-F5 II BSW Power supply unit: Auto-ranging electronic SMPS Main fuse: 250V/10A Ballast: Electronic Power input: Self-contained power cord DMX data input/output: Chassis 3-pin (in/out) Control and programming  Control channels (DMX): 27/25/35 Protocol: DMX-512 RDM Display: OLED Physical / Installation ...
  • Page 16 GTD-F5 II BSW Other teatures ...

  • Page 17: Gobos And Colors

    GTD-F5 II BSW Enhanced stability of the fixture due to the wide input voltage AC/DC switching power supply which both reduces the  impact of power and voltage fluctuations, and removes the restriction of voltage and frequency variations in different countries.

  • Page 18: Colors

    GTD-F5 II BSW Rotating gobo wheel Fixed gobo wheel Effect gobo wheel 8.3 Colors Color wheel: 7 colors + open, split color, CW/CCW rotation,“Rainbow effect”in both direction C+CTO...

  • Page 19: Menu Structure

    GTD-F5 II BSW 1.Red 2. Yellow 3.Blue Green 4.Green 5.Light Blue -purple 6.Fuchsia 1.Rose Red 2.Blue 3.Brown 4. Claybank 5.Cool color 6.Fluorescence 9. Menu structure Address Setting Address 001~ XXX Setting the DMX address Value Display strobe…… Display the channel value...
  • Page 20 GTD-F5 II BSW Language English/Chinese Change the language Temperature Unit Celsius Temperature unit Fahrenheit Restore Default Restore/Cancel Restore to default value System reset System Reset Pan an tilt motor reset Scan Reset All color motor reset Color Reset All gobo motor reset...

  • Page 21: Dmx Protocol

    GTD-F5 II BSW 10. DMX Protocol DMX mode Name DMX value DMX percentage Function Stan Exte Basic dard nded 0.0% 12.2% Close 12.5% 24.7% Shutter open 25.1% 49.8% Strobe, slow→fast Strobe/Shutter 50.20% 62.4% Shutter open 62.8% 87.5% Random strobe , slow→fast 87.8%...
  • Page 22 GTD-F5 II BSW 7.8% 14.5% Color 1 14.9% 21.6% Color 2 22.0% 28.6% Color 3 29.0% 35.7% Color 4 36.1% 42.7% Color 5 43.1% 49.8% Color 6 Color1 continous rotation CW 50.2% 73.3% from fast to slow 73.7% 76.5% Stop...
  • Page 23 GTD-F5 II BSW 18.4% 19.2% Gobo 13 19.6% 21.6% Gobo 1 shake 22.0% 23.9% Gobo 2 shake 24.3% 26.3% Gobo 3 shake 26.7% 28.6% Gobo 4 shake 29.0% 31.0% Gobo 5 shake 31.4% 33.3% Gobo 6 shake 33.7% 35.7% Gobo 7 shake 36.1%...
  • Page 24 GTD-F5 II BSW 50.2% 73.3% Gobo wheel continous rotation CW from slow to fast 73.7% 76.5% Stop 76.9% 100.0% Gobo wheel continous rotation CCW from slow to fast 0.0% 49.8% Gobo rotation positioning 50.2% 73.3% Gobo continous rotation CW Gobo...
  • Page 25 GTD-F5 II BSW 53.3% 100.0% macro random from slow to fast 0.0% 49.8% Frost 50.2% 100.0% 0.0% 100.0% Pan, fine (LSB) 0.0% 100.0% Pan, fine (LSB) Tilt 0.0% 100.0% Tilt Tilt, fine (LSB) 0.0% 100.0% Tilt, fine (LSB) Scan speed 0.0%...

  • Page 26: System Wiring Diagram

    GTD-F5 II BSW 11. System wiring diagram...
  • Page 27 GTD-F5 II BSW F5 II BSW SMS8004D-2 SMS8004D-2 Prism1 Zoom Fan1 ISP1 SMS8003D-1 Fan2 Prism2 ISP1 Focus SMS8004D-2 SMS8004D-2 SCR8010A Frost 2X SMS8003D-1 SCR8011A Focus L-Frost Y+CTO Zoom Strobe1 Strobe2 Prism2 Prism1 Prism.ROT Fan2 Fan3 Fan4 Fan-Lamp-R SMS8003D Fixed Fan-...

  • Page 28: Maintenance And Troubleshooting

    GTD-F5 II BSW 12. Maintenance and Troubleshooting 12.1 Cleaning and maintenance It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting.
  • Page 29 GTD-F5 II BSW Problem Possible Cause Suggested Correction control system. Setting >Address” of the fixture is consistent with the address in the control system. Choose the channel mode in “Channel setting > Misuse in “Channel setting > Channel Channel Mode” of the fixture as required by the Mode”of the fixture.
  • Page 30 GTD-F5 II BSW Problem Possible Cause Suggested Correction Normal operation resumes once the ballast has cooled sufficiently. Burned-out or failing lamps, or high temperatures in or around the fixture, can cause the ballast to overheat, so we need solve the problem and replace components as required Thermostat damaged.
  • Page 31 GTD-F5 II BSW Problem Possible Cause Suggested Correction gobo wheel or color wheel. manual to clean the rotating gobo wheel or color wheel. Rotating gobo wheel, color wheel with Replace the worn-off, damaged or deformed coating wearing off, damages or deformation...

  • Page 32: Spare Parts List

    Switch power 1412050083A EDS850-38528P 385V 1.5A/28V 10A Electronic trigger 5801913004A PHILIPS 550W MSD Platinum 25 R Display 5809010524A GTD-F5 II BSW-101A10 SDI8003C Scan board 5809010492A GTD-F5 II BSW-201A10 SCR8004D Fan drive board 5809010496A GTD-F5 II BSW-601A10 SJC8003A Motor drive board3...
  • Page 35 Guangzhou GTD Culture & Technology Group Co., Ltd. Tel：86-20-61808288 Fax：86-20-61812282 http://www.gtd-china.com...
