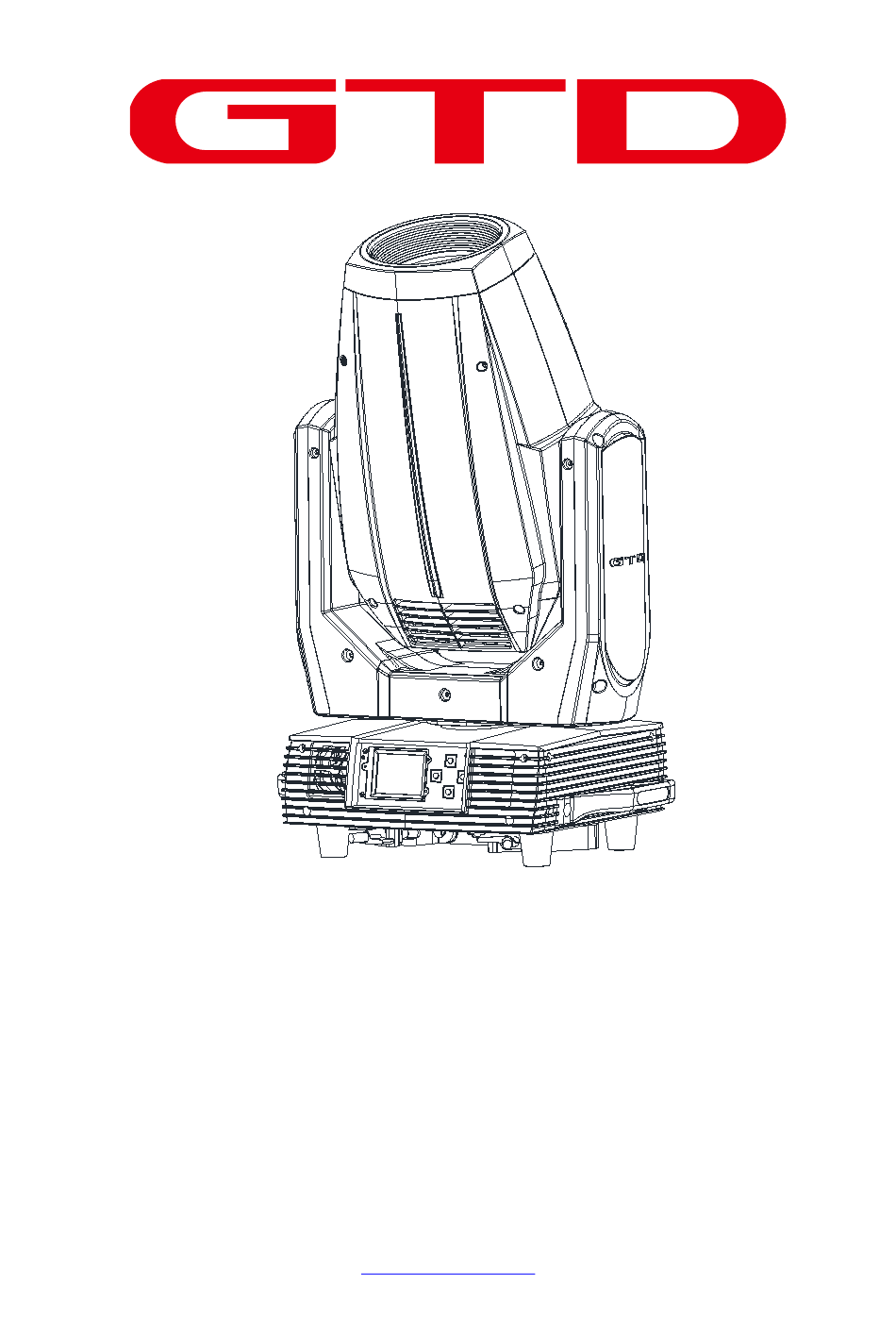

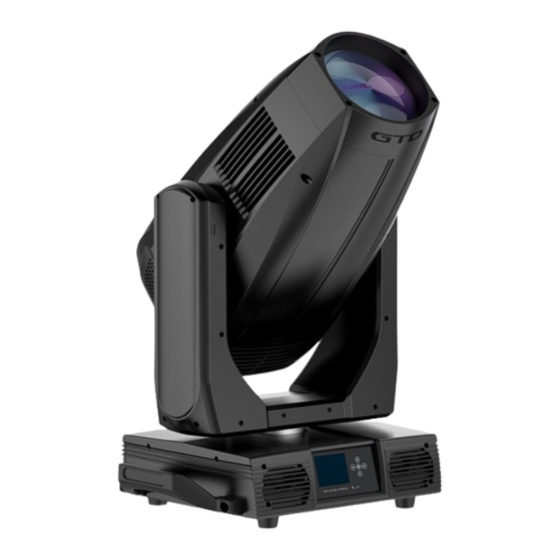

GTD-LM1000 II BSWP
User Manual
Guangzhou GTD Culture & Technology Group Co.,Ltd.
Tel: +86-20-61808296
Fax: +86-20-61812282
www.gtd-lighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTD-LM1000 II BSWP and is the answer not in the manual?

Questions and answers

Related Manuals for GTD GTD-LM1000 II BSWP

Summary of Contents for GTD GTD-LM1000 II BSWP

  • Page 1 GTD-LM1000 II BSWP User Manual Guangzhou GTD Culture & Technology Group Co.,Ltd. Tel: +86-20-61808296 Fax: +86-20-61812282 www.gtd-lighting.com...
  • Page 2 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    Contents 1. Safety instructions ............................... 1 2. Product introductions..............................3 2.1 Dimensions ................................3 2.2 Fixture overview ..............................4 2.3 Accessories ................................4 3. Packing and shipping ..............................5 3.1 Protection lock ................................. 5 3.2 Unpacking ................................5 3.3 Packing after use ..............................6 4.

  • Page 4: Safety Instructions

    Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.
  • Page 5 To ensure operational safety, broken or damaged cables and light source can only be fixed or replaced by certified  technicians, certified local distributors or the manufacturer. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured  parts.

  • Page 6: Dimensions

    2. Production instructions 2.1 Dimensions [17.35"] [23.11"] [11.27"] [17.66"]...

  • Page 7: Fixture Overview

    2.2 Fixture overview Frost module Head module Lens module Y lock Framing balde system CMY module Lamp-holder assembly Pan-tilt frame X lock Base module Display Lamp 2.3 Accessories Item Unit Remark User Manual Φ5*60cm 7*19 pc with hook Material：Steel Safety cable 3-pins signal line...

  • Page 8: Packing And Shipping

    3. Packing and shipping 3.1 Protection lock Pan and tilt locks are equipped to ensure safe transportation. The horizontal axis has 8 locking points and the vertical axis has 4 locking points. 3.2 Unpacking Notes All products are quality controlled before they dispatched to customers. If the fixture is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim.

  • Page 9: Installation

    4. Installation 4.1 Clamps installation The fixture can be placed on the stage or mounted on the truss which faces any direction. Attach the clamps to the mounting position on the base of the fixture. Warning：Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise to lock.

  • Page 10: Power/ Control Connection

    5. Power/ Control connection 5.1 Power connection Connection method:  L (Live) Brown wire  E (Earth) Yellow / Green bi-color wire  N (Neutral) Blue wire  The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually.

  • Page 11: Control Panel

    6. Control panel 6.1 Panel instruction  The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code and functions menu.  Press MENU to view or select the function, press UP or DOWN to view or select the function menu. ...

  • Page 12: Technical Specification

    7. Technical specification  Optical Light source: LED 730W Expected average lifetime: 20000 h Color temperature correction: 6500k Lumens: large angle：38000lm Zoom range：6°~45°Linear high speed zoom，the spot is uniform and consistent in any range CRI：Ra≥90 Focus: high precision glass lens, electron linear focus Prism: 1 four-prism Frost: 1-independent frost effect ...
  • Page 13 Mounting points: 4 fixed folding lamp hook + attachment points for safety wire Dynamic effects  Pan/Tilt movement: 540˚/270˚，adopting a function which resets 32bit accurately and automatically Strobe: 1-20Hz Dimmer: 0-100%, mechanical linear dimming  Thermal Operating range: 14˚F to 113˚F (-10˚C to 45˚C) ...
  • Page 14 Power setting: built-in continuous rechargeable battery, allowing setting functional data via LCD interface  without power connection. Communications Design：DMX wired/wireless transmission, bidirectional-control technology, upgrade the  software quickly and conveniently by using DMX cable. Thermal design: The wind drainage and intelligent temperature monitoring technology can monitor lighting’s ...

  • Page 15: Gobos And Colors

    8. Gobos and colors 8.1 Gobo specification All patterns are made onto the metal gobos, and can be customized according to user’s requirement. The customized size is as below: Gobo material Outer dimension Effective dimension Thickness Φ27mm Φ22mm Glass gobo 1.1mm Φ27mm Φ27mm...

  • Page 16: Colors

    8.3 Colors Color wheel CMY/CTO 1.CPI filter 2.Red 3.Orange 4.Green 5.Yellow 6.Blue 8.4 Cutting effect some effect...

  • Page 17: Menu Structure

    9. Menu structure Level 4 Info Level 1 Level 2 Level 3 Address Address: 001~ Setting the DMX address setting Setting Display the channel value Value Display Pan ……， All， Off Run auto program in master or slave Auto-Program Master /Slave Time Info Since power on XXXXXX Hour...
  • Page 18 Default Product Select - Password- GTD xxx xxx xxx Product Name Select Reset System Reset System reset Scan Reset Pan and tilt motor reset ColorReset Color motor reset Gobo Reset All gobo motor reset Other Reset All other motor reset...

  • Page 19: Dmx Protocol

    10. DMX Protocol Standard DMX mode Default Standard Name DMX value DMX percentage Function Value (36ch) 0.0% 12.2% Closed 12.5% 24.7% Open 25.1% 49.8% Synchronous strobe from slow to fast Strobe/ 0(0%) Shutter 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open...
  • Page 20 DMX mode Default Name DMX value DMX percentage Function Standard Value (36ch) 7.1% 8.6% Gobo 1 9.0% 10.6% Gobo 2 11.0% 12.5% Gobo 3 12.9% 14.5% Gobo 4 14.9% 16.5% Gobo 5 16.9% 18.4% Gobo 6 18.8% 20.4% Gobo 7 20.8% 22.4% Gobo 8...
  • Page 21 DMX mode Default Name DMX value DMX percentage Function Standard Value (36ch) Gobo 5 shake 40.8% 43.5% 43.9% 46.7% Gobo 6 shake 47.1% 49.8% Gobo 7 shake Rotating gobo Gobo wheel continous rotation CW wheel 1 0(0%) 50.2% 73.3% from slow to fast 73.7% 76.5% Stop...
  • Page 22 DMX mode Default Name DMX value DMX percentage Function Standard Value (36ch) 25.1% 37.3% Effect - Synchronous off Effect - Random open from slow to 37.6% 49.8% fast 0(0%) Iris macro 50.2% 62.4% Effect - Random off 62.7% 74.9% Strobe follow 75.3% 100.0% Closed iris...
  • Page 23 DMX mode Default Name DMX value DMX percentage Function Standard Value (36ch) 54.9% 58.4% Built-in program 2 58.8% 62.4% Built-in program 3 62.7% 66.3% Built-in program 4 66.7% 70.2% Built-in program 5 0(0%) Special 70.6% 74.1% Built-in program 6 controls 74.5% 78.0% Built-in program 7...
  • Page 24 Basic Default mode Name DMX value DMX percentage Function Basic Value (33ch) 0.0% 12.2% Closed 12.5% 24.7% Open 25.1% 49.8% Synchronous strobe from slow to fast Strobe/ 0(0%) Shutter 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open...
  • Page 25 Default mode Name DMX value DMX percentage Function Basic Value (33ch) 14.9% 16.5% Gobo 5 16.9% 18.4% Gobo 6 18.8% 20.4% Gobo 7 20.8% 22.4% Gobo 8 22.7% 24.3% Gobo 9 24.7% 26.3% Gobo 10 26.7% 28.2% Gobo 11 28.6% 30.2% Gobo 1 shake 30.6%...
  • Page 26 Default mode Name DMX value DMX percentage Function Basic Value (33ch) Gobo wheel continous rotation CW from slow 50.2% 73.3% to fast Rotating gobo 73.7% 76.5% Stop 0(0%) wheel 1 Gobo wheel continous rotation CCW from 76.9% 100.0% slow to fast 0.0% 49.8% Gobo rotation/positioning...
  • Page 27 Default mode Name DMX value DMX percentage Function Basic Value (33ch) Effect 0.0% 49.8% Effect wheel rotation/positioning wheel 0(0%) rotation 50.2% 100.0% Continous rotation from slow to fast (Fire) Near → Far Focus 0.0% 100.0% 0(0%) Narrow → Wide Zoom 0.0% 100.0% 0(0%)
  • Page 28 Default mode Name DMX value DMX percentage Function Basic Value (33ch) 70.6% 74.1% Built-in program 6 74.5% 78.0% Built-in program 7 78.4% 82.0% Built-in program 8 Special 0(0%) controls 82.4% 85.9% Built-in program 9 86.3% 89.8% Built-in program 10 90.2% 100.0% Reserved...
  • Page 29 Extended DMX mode Default Extended Name DMX value DMX percentage Function (52ch) Value 0.0% 12.2% Closed 12.5% 24.7% Open Strobe/ 25.1% 49.8% Synchronous strobe from slow to fast 0(0%) Shutter 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open...
  • Page 30 DMX mode Default Name DMX value DMX percentage Function Extended Value (52ch) 0.0% 6.7% Open 7.1% 8.6% Gobo 1 9.0% 10.6% Gobo 2 11.0% 12.5% Gobo 3 12.9% 14.5% Gobo 4 14.9% 16.5% Gobo 5 16.9% 18.4% Gobo 6 18.8% 20.4% Gobo 7 20.8%...
  • Page 31 DMX mode Default Name DMX value DMX percentage Function Extended Value (52ch) 40.8% 43.5% Gobo 5 shake 43.9% 46.7% Gobo 6 shake 47.1% 49.8% Gobo 7 shake Rotating Gobo wheel continous rotation CW from gobo 50.2% 73.3% 0(0%) slow to fast wheel 1 73.7% 76.5%...
  • Page 32 DMX mode Default Name DMX value DMX percentage Function Extended Value (52ch) Effect - Synchronous open from slow to 12.5% 24.7% fast 25.1% 37.3% Effect - Synchronous off 0(0%) Iris 37.6% 49.8% Effect - Random open from slow to fast macro 50.2% 62.4%...
  • Page 33 DMX mode Default Name DMX value DMX percentage Function Extended Value (52ch) 31.4% 34.9% Scan motor reset after 5 seconds 35.3% 38.8% All color motor reset after 5 seconds 39.2% 42.7% All gobo motor reset after 5 seconds 43.1% 46.7% All strobe reset after 5 seconds 47.1% 50.6%...

  • Page 34: System Wiring Diagram

    11. System wiring diagram...

  • Page 35: Maintenance And Troubleshooting

    It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting.
  • Page 36 Problem Possible Cause Suggested Correction Choose the channel mode in “Channel setting > Misuse in “Channel setting > Channel Mode Channel Mode” of the fixture as required by the of the fixture. user Malfunctioning of DMX cannon input/output Troubleshooting the DMX XLR signal plate of connectors.
  • Page 37 Problem Possible Cause Suggested Correction the ballast to overheat, so we need solve the problem and replace components as required Thermostat damaged. Replace. No function the connector between gobo wheel motor and drive, loose, damaged, or Reconnect the gobo wheel motor to the drive, and replace cables as required.

  • Page 38: Spare Parts List

    Problem Possible Cause Suggested Correction Follow the instructions stated in this user Excessive dusts or smudges on the rotating manual to clean the rotating gobo wheel or color gobo wheel or color wheel wheel. Follow the instructions stated in this user Excessive dusts or smudges on the focus Non-clear shape manual to clean the focus module or objective...
  • Page 39 Guangzhou GTD Culture & Technology Group Co., Ltd. Tel：86-20-61808288 Fax：86-20-61812282 www.gtd-lighting.com...
