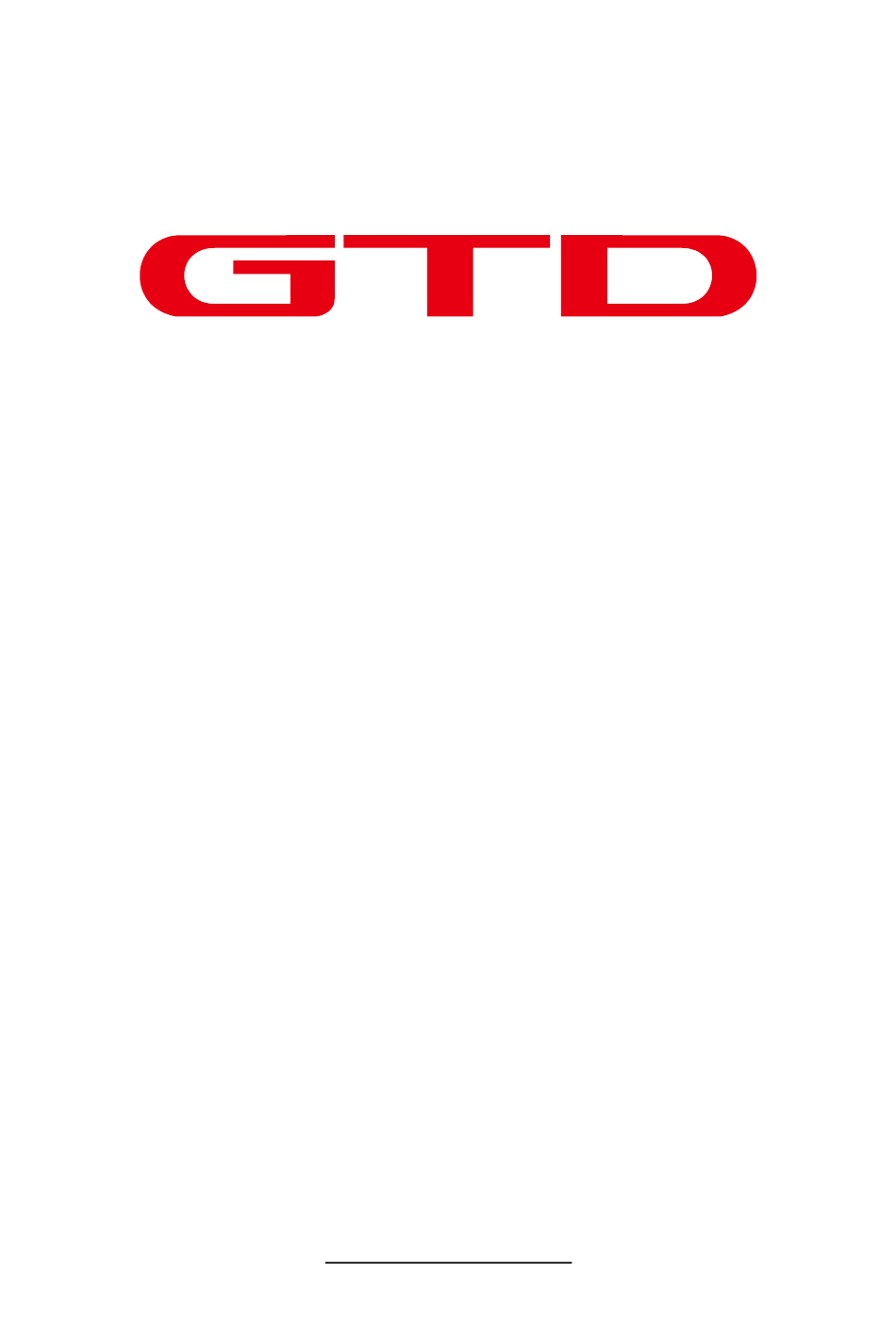

- Page 1 LED Wall Washer GTD-L1508P User’s Manual Guangzhou GTD Lighting Technology Co., Ltd. Tel: +86-20-61808296 Fax: +86-20-61812282 www.gtd-lighting.com http://...
- Page 2 © 2017 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
GTD-L1508P User Manual Contents Safety instructions ..................................3 General guidelines ..................................4 Packing and shipping .................................. 5 Unpacking ....................................... 5 Packing after use..................................... 5 Accessories ....................................5 Product introduction .................................. 6 Installation ....................................6 Device installation ..................................6 Power / Control connection ............................... 7 Power connection ................................... -
Page 4: Safety Instructions
GTD-L1508P User Manual Safety instructions WARNING! Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual. -
Page 5: General Guidelines
Broken or damaged cables can only be fixed or changed by certified technicians, certified local distributors or the manufacturer to ensure operational safety. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured parts. ... -
Page 6: Packing And Shipping
GTD-L1508P User Manual Packing and shipping Unpacking Notes All products are quality controlled and checked for any faults before they are dispatched to customers. If the fixture is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim. -
Page 7: Product Introduction

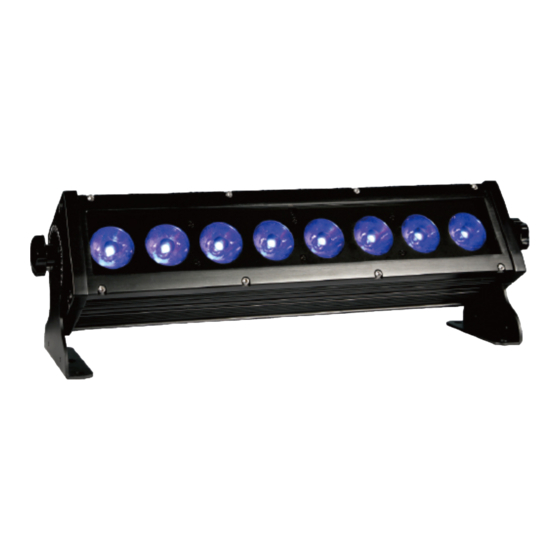

GTD-L1508P User Manual Product introduction LED lens Manual adjusting screw Cast aluminm cover Bracket DMX input Power indicator DMX output Power input MENU, UP, DOWN, ENTER buttons 10 DMX indicator 11 Power output Installation Device installation This fixture can be installed on stage or mounted in any directions. -
Page 8: Power/ Control Connection
GTD-L1508P User Manual Power/ Control connection Power connection Connection method: L (Live) Brown wire E (Earth) Yellow / Green bi-color wire N (Neutral) Blue wire The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. Please apply series connection when many sets of fixtures are connected to the power source to avoid heavy load to the power source. -
Page 9: Testing
GTD-L1508P User Manual Testing Connect the fixture to AC power. Check if the LED lamp is on and the fixture is independently controllable before putting into operation. Control panel The control panel with buttons and digital display can access the function menu and configure the fixture easily. -
Page 10: Menu Structure
GTD-L1508P User Manual Menu structure L1508P – Menu Structure Revision: A Valid from firmware version: 1.0 Level 1 Level 2 Level 3 Level 4 Info Addr AXXX A001 Setting the DMX address MSTR/ ALON Running build-in program as the master or the slave... -
Page 11: Dmx Protocol
GTD-L1508P User Manual DMX protocol L1508P - DMX Protocol Revision: A Valid from firmware version: 1.0 DMX mode Default Name DMX value DMX percentage Function Standard Simplified (15ch) (10ch) Value 0.0% 12.2% Closed 12.5% 24.7% Open 25.1% 49.8% Synchronous strobe from slow to fast... - Page 12 GTD-L1508P User Manual DMX mode Default Name DMX value DMX percentage Function Standard Simplified Value (15ch) (10ch) 0.0% 9.4% No function 9.8% 13.7% 3200K 14.1% 18.0% 3400K 18.4% 22.4% 3600K 22.7% 26.7% 3800K 27.1% 31.0% 4000K 31.4% 35.3% 4200K 35.7% 39.6%...
-
Page 13: Technical Specification
GTD-L1508P User Manual Technical specification Optical Light source: LED 15W (RGBW 4-in-1), quantity: 8pcs Expected average lifetime: 50000 hours Beam angle: 10°(50% peak angle), 25°(10% peak angle) RGBW linear color mixing with built-in macros Color temperature: 3200K-7200K linear regulation ... -
Page 14: Cleaning And Maintenance
GTD-L1508P User Manual Certification and Safety EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013 Safety: EN 60598-2-17:1989/A2:1991 Photometric Cleaning and maintenance It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. -
Page 15: Troubleshooting
GTD-L1508P User Manual this happens, please check that the fans are not blocked, and clean them if they are dirty. Check whether the fans are operational. If not, call a qualified technician. Troubleshoot and correct the problem before switching on the fixture again. -
Page 16: System Wiring Diagram
GTD-L1508P User Manual System wiring diagram LCR0527B 信号线2 信号线1 water-proof socket SDI0516D POWER 28V+ 28V- JF1 JF2 36V- EDS160-3624P 36V+ JIN1 water-proof socket GTD-L1508P Spare parts list Item Notes Switching Power Supply 1412050050A EDS160-3624P 36V*4A 24V*0.5A Aluminum substrate 5802010053B LJB0527B... - Page 17 GTD-L1508P User Manual Notes: P/N: 1502011082A Time: December 16 , 2017...
