GTD -F3 II BSW User Manual

Moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GTD-F3 II BSW
Moving Head
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTD-F3 II BSW and is the answer not in the manual?

Questions and answers

Related Manuals for GTD GTD-F3 II BSW

Summary of Contents for GTD GTD-F3 II BSW

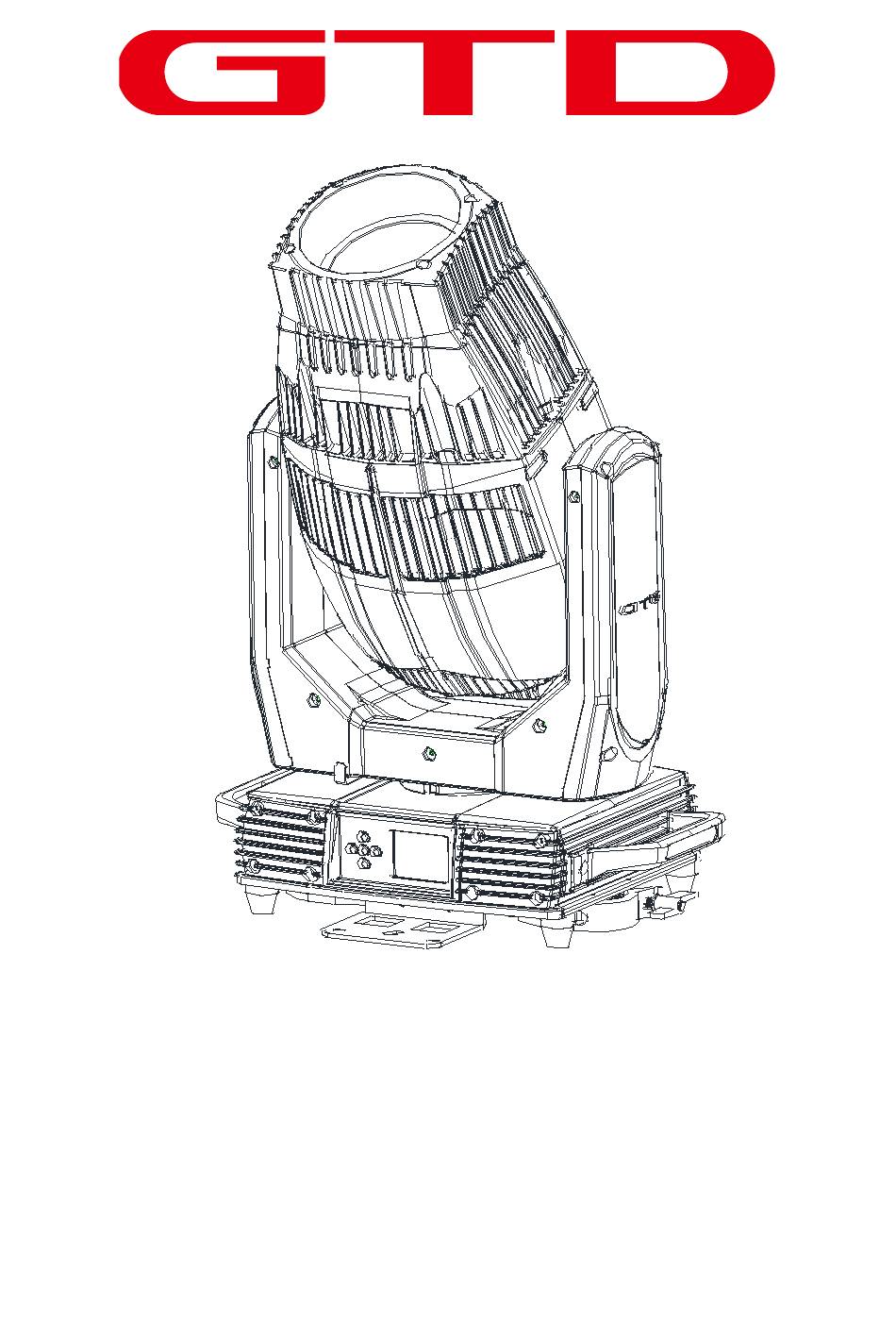

  • Page 1 GTD-F3 II BSW Moving Head User Manual...
  • Page 2 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    Contents 1. Safety instructions ............................... 1 2. Product introductions..............................3 2.1 Dimensions ................................3 2.2 Fixture overview ..............................4 2.3 Accessories ................................4 3. Packing and shipping ..............................5 3.1 Protection lock ................................. 5 3.2 Unpacking ................................5 3.3 Packing after use ..............................6 4.

  • Page 4: Safety Instructions

    Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.
  • Page 5 To ensure operational safety, broken or damaged cables and light source can only be fixed or replaced by certified  technicians, certified local distributors or the manufacturer. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured  parts.

  • Page 6: Dimensions

    2. Production instructions 2.1 Dimension...

  • Page 7: Fixture Overview

    2.2 Fixture overview 2.3 Accessories Item Unit Remark User Manual Clamps Hanging integrated folding lamp. Φ4*60cm 7*19 pc with hook Material：Steel Safety cable 3-pins signal line 1.5m*2.5mm² connect blue plug...

  • Page 8: Packing And Shipping

    3. Packing and shipping 3.1 Protection lock Pan and tilt locks are equipped to ensure safe transportation. The horizontal axis has 4 locking points and the vertical axis has 5 locking points. 3.2 Unpacking Notes All products are quality controlled before they dispatched to customers. If the fixture is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim.

  • Page 9: Installation

    4. Installation 4.1 Clamps installation The fixture can be placed on the stage or mounted on the truss which faces any direction. Attach the clamps to the mounting position on the base of the fixture. Warning：Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise to lock.
  • Page 10 4.3 Lamps installation Disconnect the power, cool down the fixture, and set the Tilt lock-catch on the arm in a horizontal position. Use a screwdriver to rotate 1/4 circle counter-clockwise to unscrew the four quick bolts on the lamp’s back-cover. Pull the back cover out gently in parallel direction by hands, and pull it in full place to let it drop down naturally.
  • Page 11 Attention The fixture is equipped with PHILIPS MSD Platinum Flex 300S which is featured with high efficiency and short-arc characteristic, such as a stable 7200K color-temperature and average lifespan of 6000h. Attention 1. There is potential damage to the fixture if fitting another type of lamp. Change the lamp before it reaches its lifespan.

  • Page 12: Power/ Control Connection

    5. Power/ Control connection 5.1 Power connection Connection method:  L (Live) Brown wire  E (Earth) Yellow / Green bi-color wire  N (Neutral) Blue wire  The numbers of series circuit：6 （220VAC/50HZ）  The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually.

  • Page 13: Control Panel

    6. Control panel 6.1 Panel instruction  The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code and functions menu.  Press UP or DOWN to view or select the function menu. ...

  • Page 14: Technical Specification

    7. Technical specification  Optical Light source: PHILIPS MSD Platinum Flex 300S Expected average lifetime: 6000 h Color temperature correction: 7200K Lumens: 16000lm Zoom range：BEAM 0°～2.5°/ SPOT 3°～ 43°/ WASH 4°～ 45° CRI：Ra≥80 Focus: with precision HD Glass lens, electronic linear focus clearly Prism: 1 sixteen-prism, double opposite mirror Frost: 1-independent frost effect ...
  • Page 15  Dynamic effects Pan/Tilt movement: 540˚/270˚，adopting a function which resets 32bit accurately and automatically Strobe: 1-25Hz, strobe randomly, pulse randomly, strobe synchronously and asynchronously Dimmer: 0-100%, mechanical linear dimming Thermal  Operating range: 5˚F to 113˚F ( -15˚C to 45˚C) ...
  • Page 16 I l l u m i n a n c e ( L U X ) 137000 789000 45800 536000 4° 4240 45 ° 4° 45° D ista n ce (m /ft.) 0 5/16.4 10/32.81 15/49.21 20/65.62 (4°) e a m D ia m e te r(m /ft.) Ø0.16/0.52 Ø0.34/1.11 Ø0.38/1.25...

  • Page 17: Gobos And Colors

    8. Gobos and colors 8.1 Gobo specification All patterns are made onto the metal gobos, and can be customized according to user’s requirement. The customized size is as below: Gobo material Outer dimension Effective dimension Thickness Φ14.4mm Φ6mm Glass gobo 0.5mm Gobo material: Glass 8.2 Gobos...

  • Page 18: Menu Structure

    9. Menu structure Level 4 Info Level 1 Level 2 Level 3 Run setting Address Setting Address: 001~ XXX Setting the DMX address Value Display Pan ……，All，No Display the channel value Auto-Program Master/Alone Run auto program in master or slave Time Info This Time XXXXXX Hour...
  • Page 19 Fahrenheit Value Default Pan…… Pan =XXX The default value Wireless Off Wireless Dev Wireless off Wireless On Wireless on Wireless Trans. Wireless transfer DMX data Wireless Reset to another Wireless reset Dimmer Mode M0:...~M5:... M1 Dimmer mode select Restore Default Restore/Cancel Restore to default value Motor...

  • Page 20: Dmx Protocol

    10. DMX Protocol Standard DMX mode Default Name DMX value DMX percentage Function Standard Value (19ch) 0.0% 12.2% Closed 12.5% 24.7% Open 25.1% 49.8% Synchronous strobe from slow to fast Strobe/ 0(0%) Shutter 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open...
  • Page 21 DMX mode Default Name DMX value DMX percentage Function Standard Value (19ch) 26.3% 29.4% Gobo 2 shake 29.8% 32.9% Gobo 3 shake 33.3% 36.5% Gobo 4 shake 36.9% 40.0% Gobo 5 shake 40.4% 43.5% Gobo 6 shake Gobo 0(0%) 43.9% 47.1% Gobo 7 shake wheel...
  • Page 22 DMX mode Default Name DMX value DMX percentage Function Standard Value (19ch) Near →Far Focus 0.0% 100.0% 0(0%) Near →Far Zoom 0.0% 100.0% 0(0%) Prism 0.0% 12.2% 0(0%) plate1 12.5% 100.0% Prism On 0.0% 49.8% Prism indexed Prism continous rotation CW from slow Prism 50.2% 73.3%...
  • Page 23 DMX mode Default Name DMX value DMX percentage Function Standard Value (19ch) 39.2% 42.7% All strobe motor reset after 5 seconds 43.1% 46.7% Other motor reset after 5 seconds 47.1% 50.6% Built-in program 1 51.0% 54.5% Built-in program 2 54.9% 58.4% Built-in program 3 58.8%...
  • Page 24 Simplified DMX mode Default Simplified Name DMX value DMX percentage Function (16ch) Value 0.0% 12.2% Closed 12.5% 24.7% Open Strobe/ 25.1% 49.8% Synchronous strobe from slow to fast 0(0%) Shutter 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open...
  • Page 25 DMX mode Default Simplified Name DMX value DMX percentage Function (16ch) Value 43.9% 47.1% Gobo 7 shake 47.5% 49.8% Open gobo 0(0%) Gobo Gobo wheel continous rotation CW from slow to 50.2% 73.3% wheel fast (static) 73.7% 76.5% Stop Gobo wheel continous contrarotation CCW from 76.9% 100.0% slow to fast...
  • Page 26 DMX mode Default Simplified Name DMX value DMX percentage Function (16ch) Value Prism 73.7% 76.5% Stop plate 1 Prism continous rotation CCW from slow to fast 76.9% 100.0% rotation 0.0% 12.2% Prism 0(0%) plate 2 Prism On 12.5% 100.0% 0.0% 49.8% Prism indexed Prism...
  • Page 27 Extended DMX mode Default Name DMX value DMX percentage Function Extended Value (22ch) 0.0% 12.2% Closed 12.5% 24.7% Open 25.1% 49.8% Synchronous strobe from slow to fast Strobe/S 0(0%) hutter 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open...
  • Page 28 DMX mode Default Name DMX value DMX percentage Function Extended Value (22ch) 33.3% 36.5% Gobo 4 shake 36.9% 40.0% Gobo 5 shake 40.4% 43.5% Gobo 6 shake 43.9% 47.1% Gobo 7 shake Gobo 47.5% 49.8% Open gobo wheel Gobo wheel continous rotation CW 0(0%) (static) 50.2%...
  • Page 29 DMX mode Default Name DMX value DMX percentage Function Extended Value (22ch) Focus 65535 0.0% 100.0% Focus, fine (LSB) Near →Far 0.0% 100.0% Zoom 0(0%) 65535 0.0% 100.0% Zoom, fine (LSB) 0.0% 12.2% Prism 0(0%) plate1 12.5% 100.0% Prism On 0.0% 49.8% Prism indexed...
  • Page 30 DMX mode Default Name DMX value DMX percentage Function Extended Value (22ch) 54.9% 58.4% Built-in program 3 58.8% 62.4% Built-in program 4 62.7% 66.3% Built-in program 5 Special 66.7% 70.2% Built-in program 6 controls 70.6% 74.1% Built-in program 7 74.5% 78.0% Built-in program 8 78.4%...

  • Page 31: System Wiring Diagram

    11. System wiring diagram +28V...

  • Page 32: Maintenance And Troubleshooting

    It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting.
  • Page 33 Problem Possible Cause Suggested Correction Choose the channel mode in “Channel setting > Misuse in “Channel setting > Channel Mode Channel Mode” of the fixture as required by the of the fixture. user Malfunctioning of DMX cannon input/output Troubleshooting the DMX XLR signal plate of connectors.
  • Page 34 Problem Possible Cause Suggested Correction the ballast to overheat, so we need solve the problem and replace components as required Thermostat damaged. Replace. No function the connector between gobo wheel motor and drive, loose, damaged, or Reconnect the gobo wheel motor to the drive, and replace cables as required.

  • Page 35: Spare Parts List

    Problem Possible Cause Suggested Correction Follow the instructions stated in this user Excessive dusts or smudges on the rotating manual to clean the rotating gobo wheel or color gobo wheel or color wheel wheel. Follow the instructions stated in this user Excessive dusts or smudges on the focus Non-clear shape manual to clean the focus module or objective...
  • Page 36 Guangzhou GTD Culture & Technology Group Co., Ltd. Tel：86-20-61808288 Fax：86-20-61812282 http://www.gtd-china.com...
