Summary of Contents for GTD GTD-F400 II BSW

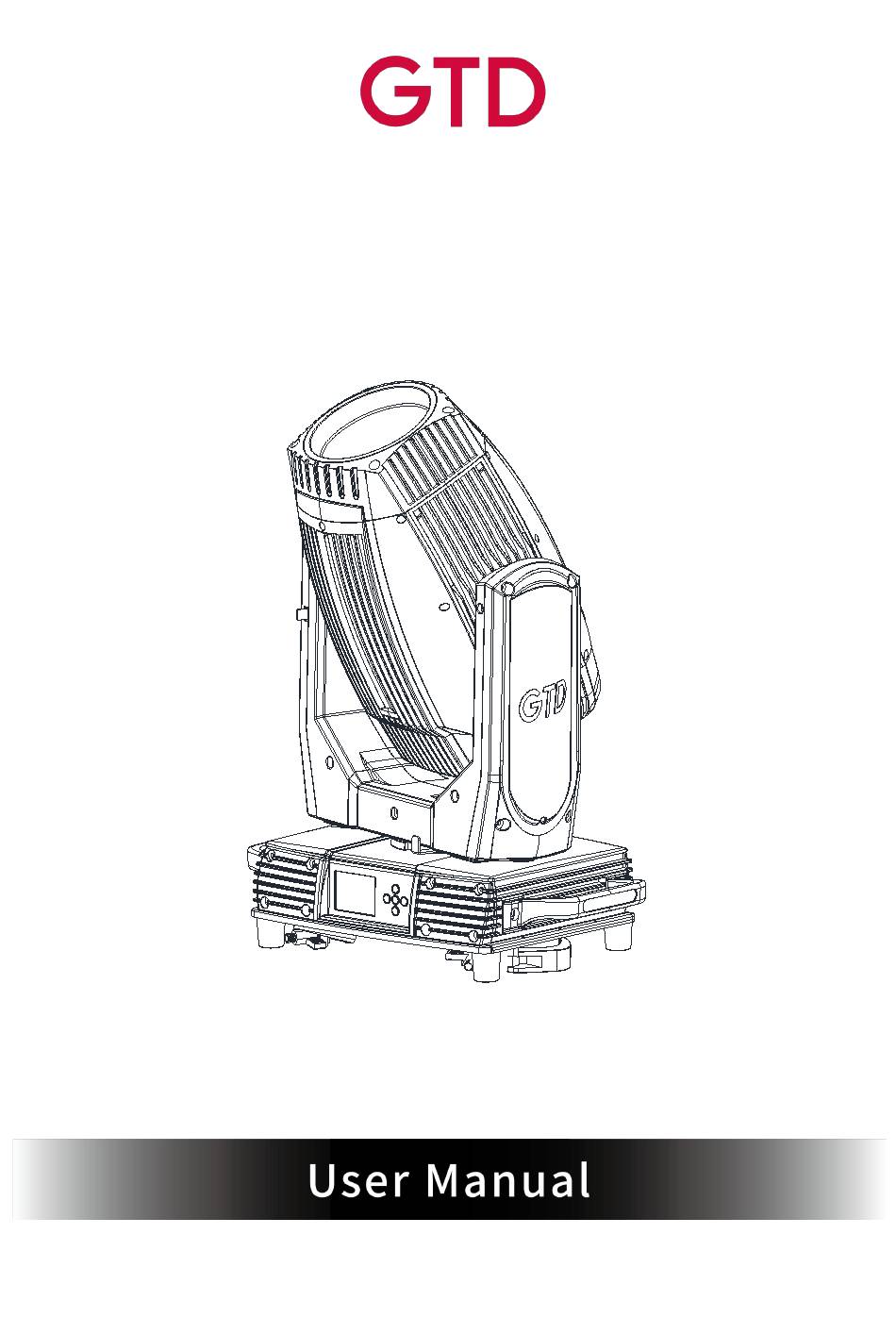

  • Page 1 GTD-F400 II BSW...
  • Page 2 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    Contents 1. Safety instructions ............................... 1 2. Product introductions..............................3 2.1 Dimensions ................................3 2.2 Fixture overview ..............................4 2.3 Accessories ................................4 3. Packing and shipping ..............................5 3.1 Protection lock ................................. 5 3.2 Unpacking ................................5 3.3 Packing after use ..............................5 4.

  • Page 4: Safety Instructions

    Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.

  • Page 5: General Guidelines

    To ensure operational safety, broken or damaged cables and light source can only be fixed or replaced by certified  technicians, certified local distributors or the manufacturer. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured  parts.

  • Page 6: Product Introductions

    2. Production instructions 2.1 Dimensions [15.75] [16.80] [18.66] 270°...

  • Page 7: Fixture Overview

    2.2 Fixture overview Head module 固定镜头组件 Focus lens module 调焦放大组件 Gobos system 花样架组件 CMY module CMY组件 Radiator module 散热组件 Pan-tilt frame 水平垂直扫描架 Base module 底箱组件 2.3 Accessories Item Unit Remark User Manual Safety cable Φ4*60cm 7*19 pc with hook Material: Steel 3-pins signal line Power line...

  • Page 8: Packing And Shipping

    3. Packing and shipping 3.1 Protection lock Pan and tilt locks are equipped to ensure safe transportation. The pan axis has 4 locking points. Pan lock 3.2 Unpacking Notes All products are quality controlled before they dispatched to customers. If the fixture is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim.

  • Page 9: Installation

    Cardboard box: Wrap the fixture in plastic bags. Put it in the packaging foam along with all the accessories. Place the other set of packaging foam on top then put it carefully in the cardboard box. 4. Installation 4.1 Clamps installation The fixture can be placed on the stage or mounted on the truss which faces any direction.

  • Page 10: Power/ Control Connection

    5. Power/ Control connection 5.1 Power connection Connection method:  L (Live) Brown wire  E (Earth) Yellow / Green bi-color wire  N (Neutral) Blue wire  The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. Please apply series connection when many sets of fixtures are connected to the power source to avoid heavy load to the power source.

  • Page 11: Control Panel

    6. Control panel 6.1 Panel instruction GTD-F400 II BSW  The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code and functions menu. Press UP or DOWN to view or select the function menu.
  • Page 12 Gobo  Rotating gobo wheel: 1 interchangeable gobo rotator, 7 optional pattern pieces Fixed gobo wheel: 7 gobos + open, CW/CCW rotation, variable speed Color  Color wheel: 9 colors and open gobo, linear adjustment function, “Rainbow effect” in both directions CMY: The infinite color mixed Electrical ...

  • Page 13: Other Features

    Other features  Enhanced stability of the fixture due to the wide input voltage AC/DC switching power supply which both reduces the  impact of power and voltage fluctuations, and removes the restriction of voltage and frequency variations in different countries.

  • Page 14: Gobos And Colors

    8. Gobos and colors 8.1 Gobo specification All patterns are made onto the metal gobos, and can be customized according to user’s requirement. The customized size is as below: Gobo material Outer dimension Effective dimension Thickness Glass gobo Φ23mm Φ13mm 1.1mm Gobo material: Glass 8.2 Gobos...

  • Page 15: Menu Structure

    9. Menu structure Level 1 Level 2 Level 3 Level 4 Info Address Setting Address: 001~ XXX Setting the DMX address setting Value Display Pan ……，All，Off Display the channel value Auto-Program Master /Slave Run auto program in master or slave Time Info This Time XXXXXX Hour...
  • Page 16 Wireless Reset another Wireless reset Restore Default Yes/No Restore to default value Product Select - Password- Product Name Select GTD xxx xxx xxx Dimmer Mode Mode1/2/3 Dimmer curve mode select Reset System Reset System reset Scan Reset Scan motor Reset...
  • Page 17 Set Custom Mode1 Max Channel Channel = XX Change the channel order Set Custom Mode2 Pan = CH01 Set Custom Mode3 Program Select Group Program Unit 1 Program 1 ~10 Choose build-in program for Edit slave 1 Program Unit 2 Program 1 ~ 10 Choose build-in program for Program Unit 3...

  • Page 18: Dmx Protocol

    10. DMX Protocol Standard Default Standard Name DMX value DMX percentage Function (24ch) Value 0.0% 100.0% 0(0%) 65535 0.0% 100.0% Pan, fine (LSB) 0.0% 100.0% Tilt Tilt (18.0%) 65535 0.0% 100.0% Tilt, fine (LSB) Scan 0.0% 100.0% Reserved 0(0%) speed 0.0% 12.2% Closed...
  • Page 19 24.71% 29.41% Color 5 29.80% 34.51% Color 6 34.90% 39.61% Color 7 40.00% 44.71% Color 8 45.10% 49.80% Color 9 50.20% 73.33% Color continous rotation CW from slow to fast 73.73% 76.47% Stop Color continous rotation CCW from slow to 76.86% 100.00% fast...
  • Page 20 wheel 9.41% 12.16% Gobo 2 12.55% 15.29% Gobo 3 15.69% 18.43% Gobo 4 18.82% 21.57% Gobo 5 21.96% 24.71% Gobo 6 25.10% 27.84% Gobo 7 28.24% 30.98% Gobo 1 shake 31.37% 34.12% Gobo 2 shake 34.51% 37.25% Gobo 3 shake 37.65% 40.39% Gobo 4 shake...
  • Page 21 0.0% 49.8% Prism indexed 50.2% 73.3% Prism continous rotation CW from slow to fast Prism 0(0%) 73.7% 76.5% Stop rotation Prism continous rotation CCW from slow to 76.9% 100.0% fast Frost 0.0% 100.0% Frost zoom from smallest to biggest 0(0%) 0.00% 3.53% No function...
  • Page 22 Basic Default Basic Name DMX value DMX percentage Function (20ch) Value 0.0% 100.0% 0(0%) 65535 0.0% 100.0% Pan, fine (LSB) 0.0% 100.0% Tilt Tilt (18.0%) 65535 0.0% 100.0% Tilt, fine (LSB) Scan speed 0.0% 100.0% Reserved 0(0%) 0.0% 12.2% Closed 12.5% 24.7% Open...
  • Page 23 34.90% 39.61% Color 7 40.00% 44.71% Color 8 45.10% 49.80% Color 9 50.20% 73.33% Color continous rotation CW from slow to fast 73.73% 76.47% Stop Color continous rotation CCW from slow to 76.86% 100.00% fast 0.00% 5.88% Open 6.27% 9.02% Gobo 1 9.41% 12.16%...
  • Page 24 15.69% 18.43% Gobo 4 18.82% 21.57% Gobo 5 21.96% 24.71% Gobo 6 25.10% 27.84% Gobo 7 28.24% 30.98% Gobo 1 shake 31.37% 34.12% Gobo 2 shake 34.51% 37.25% Gobo 3 shake 37.65% 40.39% Gobo 4 shake 40.78% 43.53% Gobo 5 shake 43.92% 46.67% Gobo 6 shake...
  • Page 25 0.00% 3.53% No function 3.92% 7.45% No function 7.84% 11.37% No function 11.76% 15.29% Color wheel half color switch 15.69% 19.22% Color wheel random positioning 19.61% 23.14% Reserved 23.53% 27.06% Reset all motor after 5 seconds 27.45% 30.98% Pan/Tilt motor reset after 5 seconds 31.37% 34.90% All color motor reset after 5 seconds...
  • Page 26 0.0% 100.0% Tilt Tilt (18.0%) 65535 0.0% 100.0% Tilt, fine (LSB) Scan 0.0% 100.0% Reserved 0(0%) speed 0.0% 12.2% Closed 12.5% 24.7% Open 25.1% 49.8% Synchronous strobe from slow to fast Strobe/ 0(0%) Shutter 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open...
  • Page 27 40.00% 44.71% Color 8 45.10% 49.80% Color 9 Color continous rotation CW from slow to 50.20% 73.33% fast 73.73% 76.47% Stop Color continous rotation CCW from slow to 76.86% 100.00% fast 0.00% 5.88% Open 6.27% 9.02% Gobo 1 9.41% 12.16% Gobo 2 12.55% 15.29%...
  • Page 28 18.82% 21.57% Gobo 5 21.96% 24.71% Gobo 6 25.10% 27.84% Gobo 7 28.24% 30.98% Gobo 1 shake 31.37% 34.12% Gobo 2 shake 34.51% 37.25% Gobo 3 shake 37.65% 40.39% Gobo 4 shake 40.78% 43.53% Gobo 5 shake 43.92% 46.67% Gobo 6 shake 47.06% 49.80% Gobo 7 shake...
  • Page 29 fast 73.7% 76.5% Stop Prism continous rotation CCW from slow to 76.9% 100.0% fast Frost 0.0% 100.0% Frost zoom from smallest to biggest 0(0%) 0.00% 3.53% No function 3.92% 7.45% No function 7.84% 11.37% No function 11.76% 15.29% Color wheel half color switch 15.69% 19.22% Color wheel random positioning...

  • Page 30: System Wiring Diagram

    11. System wiring diagram...

  • Page 31: Maintenance And Troubleshooting

    It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting. Notes: Damage resulted from dust, smoke, oil or improper use is not covered by warranty.
  • Page 32 Problem Possible Cause Suggested Correction with the address in the control system. Choose the channel mode in “Channel setting > Misuse in “Channel setting > Channel Mode Channel Mode” of the fixture as required by the of the fixture. user Malfunctioning of DMX cannon input/output Troubleshooting the DMX XLR signal plate of connectors.
  • Page 33 Problem Possible Cause Suggested Correction cooled sufficiently. Burned-out or failing lamps, or high temperatures in or around the fixture, can cause the ballast to overheat, so we need solve the problem and replace components as required Thermostat damaged. Replace. No function the connector between gobo wheel motor and drive, loose, damaged, or Reconnect the gobo wheel motor to the drive, and replace cables as required.
  • Page 34 Problem Possible Cause Suggested Correction wheel. Rotating gobo wheel, color wheel with Replace the worn-off, damaged or deformed coating wearing off, damages or deformation rotating gobo wheel and color wheel Follow the instructions stated in this user Excessive dusts or smudges on the rotating manual to clean the rotating gobo wheel or color gobo wheel or color wheel wheel.
