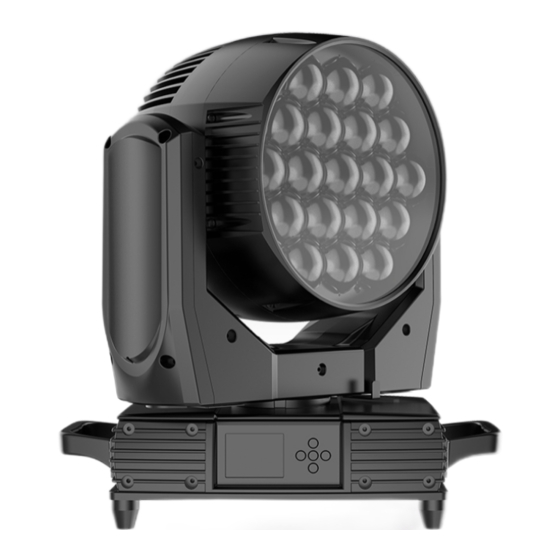

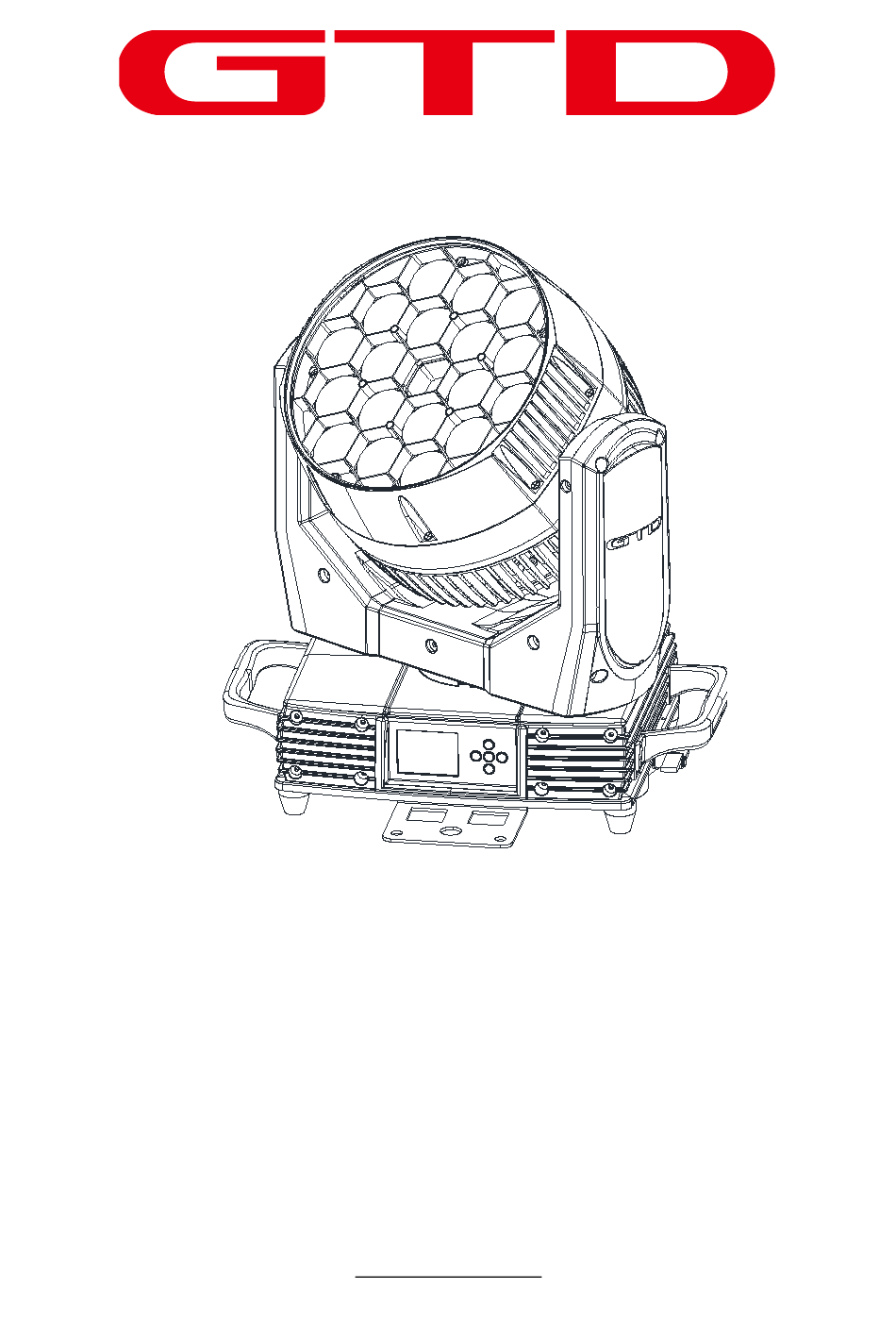

- Page 1 GTD-F4019 WASH User Manual Guangzhou GTD Culture & Technology Group Co.,Ltd. Tel: +86-20-61808296 Fax: +86-20-61812282 www.gtd-lighting.com...
- Page 2 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
Contents 1. Safety instructions ............................... 1 2. Product introductions..............................3 2.1 Dimensions ................................3 2.2 Fixture overview ..............................4 2.3 Accessories ................................4 3. Packing and shipping ..............................5 3.1 Protection lock ................................. 5 3.2 Unpacking ................................5 3.3 Packing after use ..............................5 4. -
Page 4: Safety Instructions
Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual. - Page 5 To ensure operational safety, broken or damaged cables and light source can only be fixed or replaced by certified technicians, certified local distributors or the manufacturer. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured parts.
-
Page 6: Product Introductions
2. Production instructions 2.1 Dimensions 418(16.46") 310(12.2") 280(11") 305(12") 344(13.54") 334(13.15") 390(15.35") 473(18.62") 230°... -
Page 7: Fixture Overview
2.2 Fixture overview 2.3 Accessories Item Unit Remark User Manual Clamps Hanging integrated folding lamp. Φ5*60cm 7*19 pc with hook Material：Steel Safety cable Power line 1.5m*2.5mm²... -
Page 8: Packing And Shipping
3. Packing and shipping 3.1 Protection lock Pan and tilt locks are equipped to ensure safe transportation. The horizontal axis has 2 locking points. 3.2 Unpacking Notes All products are quality controlled before they dispatched to customers. If the fixture is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim. -
Page 9: Installation
4. Installation 4.1 Clamps installation The fixture can be placed on the stage or mounted on the truss which faces any direction. Attach the clamps to the mounting position on the base of the fixture. Warning：Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise to lock. -
Page 10: Power/ Control Connection
5. Power/ Control connection 5.1 Power connection Connection method: L (Live) Brown wire E (Earth) Yellow / Green bi-color wire N (Neutral) Blue wire The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually. -
Page 11: Control Panel
6. Control panel 6.1 Panel instruction The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code and functions menu. Press UP or DOWN to view or select the function menu. ... -
Page 12: Technical Specification
7. Technical specification Optical Light source: OSRAM LE RTDUW S2WN Expected average lifetime: 20000 h Color temperature correction: 3200K~6500K Lumens: large angle：13000lm Zoom range：9.8°-48.8°(10%)/6.6°-33.6°（50%）Linear high speed zoom CRI：Ra≥70 Focus: Any multi-point focus, 5 m to infinity tracking focus Color: R/G/B/W, color conversion and perfect mix-color effect ... - Page 13 Humidity: ≤75% Certification and Safety EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013, GB/T 17743-2007, GB 17625.1-2012 Safety: EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-2008 Photometric Other features Enhanced stability of the fixture due to the wide input voltage AC/DC switching power supply which both ...
-
Page 14: Menu Structure
reduces the impact of power and voltage fluctuations, and removes the restriction of voltage and frequency variations in different countries. Automatic energy saving: when the shutter or CMY is closed, power consumption will be reduced automatically with the photoelectric tracking induction echnology. Sleep mode: uses the most advanced technology to activate sleep mode remotely. - Page 15 Level 1 Level 2 Level 3 Level 4 Info Run setting Address Setting Address: 001~ Setting the DMX address Value Display Display the channel value Auto-Program Pan ……，All，Off Run auto program in master or IP Address Setting Master /Slave slave Network Mask Set 192.168.xxx.xxx Setting the Artnet IP Address...
-
Page 16: Dmx Protocol
Wireless reset Restore Default Restore to default value Yes/No System Reset System reset Scan Reset Pan and tilt motor reset ColorReset Color motor reset Reset Gobo Reset All gobo motor reset Strobe Reset Strobe reset Other Reset All other motor reset Test Mode Pan……... - Page 17 Standard DMX mode Default Name DMX value Function Standard (21ch) percentage Value 0.0% 12.2% Closed 12.5% 24.7% Open 25.1% 49.8% Synchronous strobe from slow to fast Strobe/Shutter 0(0%) 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open No light →Full light...
- Page 18 DMX mode Default Name DMX value Function percentage Standard (21ch) Value No light →Full light 0.0% 100.0% Whit 3 0(0%) 65535 0.0% 100.0% Intensity fade, fine (LSB) 0.0% 3.5% No function 3.9% 15.3% Rainbow scene 1 15.7% 27.8% Rainbow scene 2 28.2% 40.4% Rainbow scene 3...
- Page 19 DMX mode Default Name DMX value Function percentage Standard (21ch) Value 0.0% 23.1% No function 23.5% 27.1% Reset all motor after 5 seconds 27.5% 31.0% Scan motor reset after 5 seconds 31.4% 34.9% Strobe reset after 5 seconds 35.3% 38.8% Zoom motor reset after 5 seconds 39.2% 42.7%...
- Page 20 DMX mode Default Name DMX value Function Basic (21ch) percentage Value 0.0% 12.2% Closed 12.5% 24.7% Open 25.1% 49.8% Synchronous strobe from slow to fast Strobe/Shutter 0(0%) 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open 0.0% 100.0%...
- Page 21 DMX mode Default Name DMX value Function Basic (21ch) percentage Value 0.0% 3.5% No function 3.9% 15.3% Rainbow scene 1 15.7% 27.8% Rainbow scene 2 28.2% 40.4% Rainbow scene 3 Rainbow 40.8% 52.9% Rainbow scene 4 0(0%) Function 53.3% 65.5% Rainbow scene 5 65.9% 78.0%...
- Page 22 DMX mode Default Name DMX value Function Basic (21ch) percentage Value 27.5% 31.0% Scan motor reset after 5 seconds 31.4% 34.9% Strobe reset after 5 seconds 35.3% 38.8% Zoom motor reset after 5 seconds 39.2% 42.7% Built-in program 1 43.1% 46.7% Built-in program 2 47.1%...
- Page 23 DMX mode Default Name DMX value Function Extended (37ch) percentage Value 0.0% 12.2% Closed 12.5% 24.7% Open 25.1% 49.8% Synchronous strobe from slow to fast Strobe/Shutter 0(0%) 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open 0.0% 100.0%...
- Page 24 DMX mode Default Name DMX value Function Extended (37ch) percentage Value 0.0% 3.5% No function 3.9% 15.3% Rainbow scene 1 15.7% 27.8% Rainbow scene 2 28.2% 40.4% Rainbow scene 3 Rainbow Function 40.8% 52.9% Rainbow scene 4 0(0%) 53.3% 65.5% Rainbow scene 5 65.9% 78.0%...
-
Page 25: System Wiring Diagram
DMX mode Default Name DMX value Function percentage Extended (37ch) Value 27.5% 31.0% Scan motor reset after 5 seconds 31.4% 34.9% Strobe reset after 5 seconds 35.3% 38.8% Zoom motor reset after 5 seconds 39.2% 42.7% Built-in program 1 43.1% 46.7% Built-in program 2 47.1%... - Page 26 12. Maintenance and Troubleshooting...
-
Page 27: Maintenance And Troubleshooting
It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting. - Page 28 Problem Possible Cause Suggested Correction user Malfunctioning of DMX cannon input/output Troubleshooting the DMX XLR signal plate of connectors. No input/output voltage to the the fixture, replace the main control board of the main control board of the fixture. fixture. Test the lamp in an adjacent fixture which is Normal end of lamp life.
- Page 29 Problem Possible Cause Suggested Correction Thermostat damaged. Replace. No function the connector between gobo wheel motor and drive, loose, damaged, or Reconnect the gobo wheel motor to the drive, and replace cables as required. broken cables connecting the gobo wheel and drive.
-
Page 30: Spare Parts List
Problem Possible Cause Suggested Correction Follow the instructions stated in this user Excessive dusts or smudges on the focus manual to clean the focus module or objective module or objective lens lens Damaged or deformed focus module or Replace the damaged or deformed focus module objective lens. - Page 31 Guangzhou GTD Culture & Technology Group Co., Ltd. Tel：86-20-61808288 Fax：86-20-61812282 www.gtd-lighting.com...
