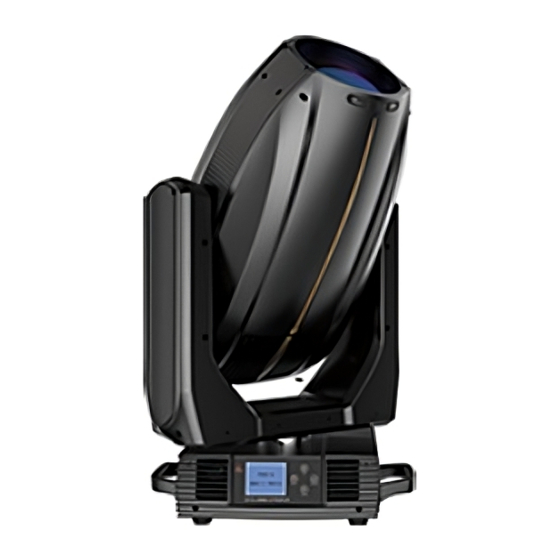

- Page 1 LED Moving Head GTD-LM660 II Profile User’s Manual Guangzhou GTD Lighting Technology Co., Ltd. Tel: +86-20-61808296 Fax: +86-20-61812282 www.gtd-lighting.com http://...
- Page 2 GTD-LM660II Profile User Manual © 2018 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
GTD-LM660II Profile User Manual Contents Safety instructions ..................................3 General guidelines ..................................4 Packing and shipping .................................. 5 Protection lock ....................................5 Unpacking ....................................... 5 Packing after use..................................... 5 Accessories ....................................6 Product introduction .................................. 6 Installation ....................................7 Clamps installation ..................................7 Device installation .................................. -
Page 4: Safety Instructions
GTD-LM660II Profile User Manual Safety instructions WARNING! Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual. -
Page 5: General Guidelines
Broken or damaged cables can only be fixed or changed by certified technicians, certified local distributors or the manufacturer to ensure operational safety. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured parts. ... -
Page 6: Packing And Shipping
GTD-LM660II Profile User Manual Packing and shipping Protection lock Pan and tilt locks are equipped to ensure safe transportation. PAN: 4 lock positions are located evenly on the Pan. TILT: 7 lock positions are located on left and right side of the Tilt with the third one in the center. -
Page 7: Accessories
GTD-LM660II Profile User Manual Accessories Item Unit Notes User Manual Straight 02A+21A 42-52mm load Clamps bearing:200KG Safety cable Signal r cable Power cable Notes Accessories are subject to change without any prior written notice. Product introduction 1 Head 2 Zoom... -
Page 8: Installation
GTD-LM660II Profile User Manual Installation Clamps installation The fixture can be placed on the stage or mounted on the truss facing any direction. Attach the clamps to the mounting position on the base of the fixture. Warning Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise to lock. Always remember to use the safety cable which goes through the mounting hole on the base. -
Page 9: Control Connection
GTD-LM660II Profile User Manual Notes It is essential that each fixture is correctly grounded and the electrical installation conforms to all relevant Standards / Codes of Practice for Safe Electrical Work. Control connection The fixture has 5-pin (3-pin optional) XLR connectors for DMX data input and output as shown below. Connection between the console and fixture, and between fixtures must be made with 2 core screened DMX signal cable. -
Page 10: Control Panel
GTD-LM660II Profile User Manual Control panel The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code and functions menu. Press UP or DOWN to view or select the function menu. -
Page 11: Colors
GTD-LM660II Profile User Manual Rotating gobo wheel fixed gobo wheel Colors One color wheel: 7colors + open, split color, CW/CCW rotation, variable speed Color 1: Red Color 2: Pale yellow Color 3: Deep yellow Color 4: Green Color 5: Blue Color 6: Deep blue Color 7：UV purple... -
Page 12: Menu Structure
GTD-LM660II Profile User Manual Menu structure LM660 II Profile– Menu Structure Revision: A Valid from firmware version: 1.0 Level 1 Level 2 Level 3 Level 4 Info Address Address: 001~ Setting the DMX address setting Setting Display the channel value Pan ……，All，... - Page 13 GTD-LM660II Profile User Manual Low Speed Fans low speed 1~80 Min/Disable Display Backlight Time Backlight off time Key Lock Setting Press <menu> 3s to unlock Enable/Disable Lightness 15~100% 80% Back lightness of screen Language Change the language Chinese/English Screen auto...
- Page 14 GTD-LM660II Profile User Manual Custom Mode2 Custom Mode3 Program Select Program Unit 1 Program 1 ~10 Choose build-in program for slave 1 Edit Prog. Program Unit 2 Program 1 ~ 10 Choose build-in program for slave 2 Program Unit 3...
-
Page 15: Dmx Protocol
GTD-LM660II Profile User Manual DMX protocol LM660 II Profile - DMX Protocol Revision: A Valid from firmware version: 1.0 DMX mode Default Extended Name DMX value DMX percentage Function (53ch) Value 0.0% 12.2% Closed 12.5% 24.7% Open Synchronous strobe from 25.1%... - Page 16 GTD-LM660II Profile User Manual Color continous rotation 50.2% 73.3% CW from slow to fast 73.7% 76.5% Stop Color continous rotation 76.9% 100.0% CCW from slow to fast 0.0% 5.9% Open 6.3% 9.0% Gobo 1 9.4% 12.2% Gobo 2 12.5% 15.3% Gobo 3 15.7%...
- Page 17 GTD-LM660II Profile User Manual Gobo wheel continous 76.9% 100.0% rotation CCW from slow to fast 0.0% 49.8% Gobo rotation/positioning Gobo continous rotation 50.2% 73.3% CCW from slow to fast Gobo 73.7% 76.5% Stop rotating/positioni 0(0%) Gobo continous rotation ng gobo wheel 1 76.9%...
- Page 18 GTD-LM660II Profile User Manual 0.0% 12.2% Off / Open iris Effect - Synchronous 12.5% 24.7% open from slow to fast 25.1% 37.3% Effect - Synchronous off Iris macro Effect - Random open 0(0%) 37.6% 49.8% from slow to fast 50.2% 62.4%...
- Page 19 GTD-LM660II Profile User Manual 0.0% 11.4% No function Color wheel half color 11.8% 15.3% switch Color wheel random 15.7% 19.2% positioning Blade motor reset after 5 19.6% 23.1% seconds Reset all motor after 5 23.5% 27.1% seconds Scan motor reset after 5 27.5%...
-
Page 20: Technical Specification
GTD-LM660II Profile User Manual Technical specification Optical Light source: OBS660-001A Expected average lifetime: 20000 hours Beam angle (zoom): 4°- 60° Focus: Variable range, from 5m to infinity Prism : One 3-facet prism, CW/CCW rotation, variable speed ... - Page 21 GTD-LM660II Profile User Manual Material: Aluminum, steel, plastic Mounting points: Four quarter-turn locking points + attachment points for safety wire Dynamic effects Pan/Tilt movement: 540˚/360˚(pan), 270˚(tilt) Iris: 5-100% high speed, with build-in macros Strobe: 1-25Hz ...
-
Page 22: Cleaning And Maintenance
GTD-LM660II Profile User Manual Power setting: built-in continuous rechargeable battery, allowing setting functional data via LCD interface without power connection. Communication design: DMX wired or wireless signal transmission, RDM bi-directional control technology, ART-NEY Ethernet data transmission, and remote function and effect upgrades Cleaning and maintenance It is required that the fixture should be kept clean and well maintained to ensure its reliability. -
Page 23: Troubleshooting
GTD-LM660II Profile User Manual Troubleshooting Problem Possible Cause Suggested Correction Power switch not turned on. Turn on power switch. Locate the blown fuse. Remove the broken fuse. Insert a replacement Take out the fuse and check if it is blown. -
Page 24: System Wiring Diagram
GTD-LM660II Profile User Manual System wiring diagram... -
Page 25: Spare Parts List
GTD-LM660II Profile User Manual Spare parts list Item Notes Display board 5809210093A LM660 II PROFILE-101J10 Scanning board 5809210225A LM660 II PROFILE-201O10 SCR0606C Motor drive 5809210547A LM660 II PROFILE-401O10 SCR0228B board 4 Motor drive 5809210548A LM660 II PROFILE-501O10 SCR0232B board 5... - Page 26 GTD-LM660II Profile User Manual Notes: P/N: Time: November 6, 2018...
