GTD -F300 II BEAM User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GTD-F300 II BEAM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTD-F300 II BEAM and is the answer not in the manual?

Questions and answers

Related Manuals for GTD GTD-F300 II BEAM

Summary of Contents for GTD GTD-F300 II BEAM

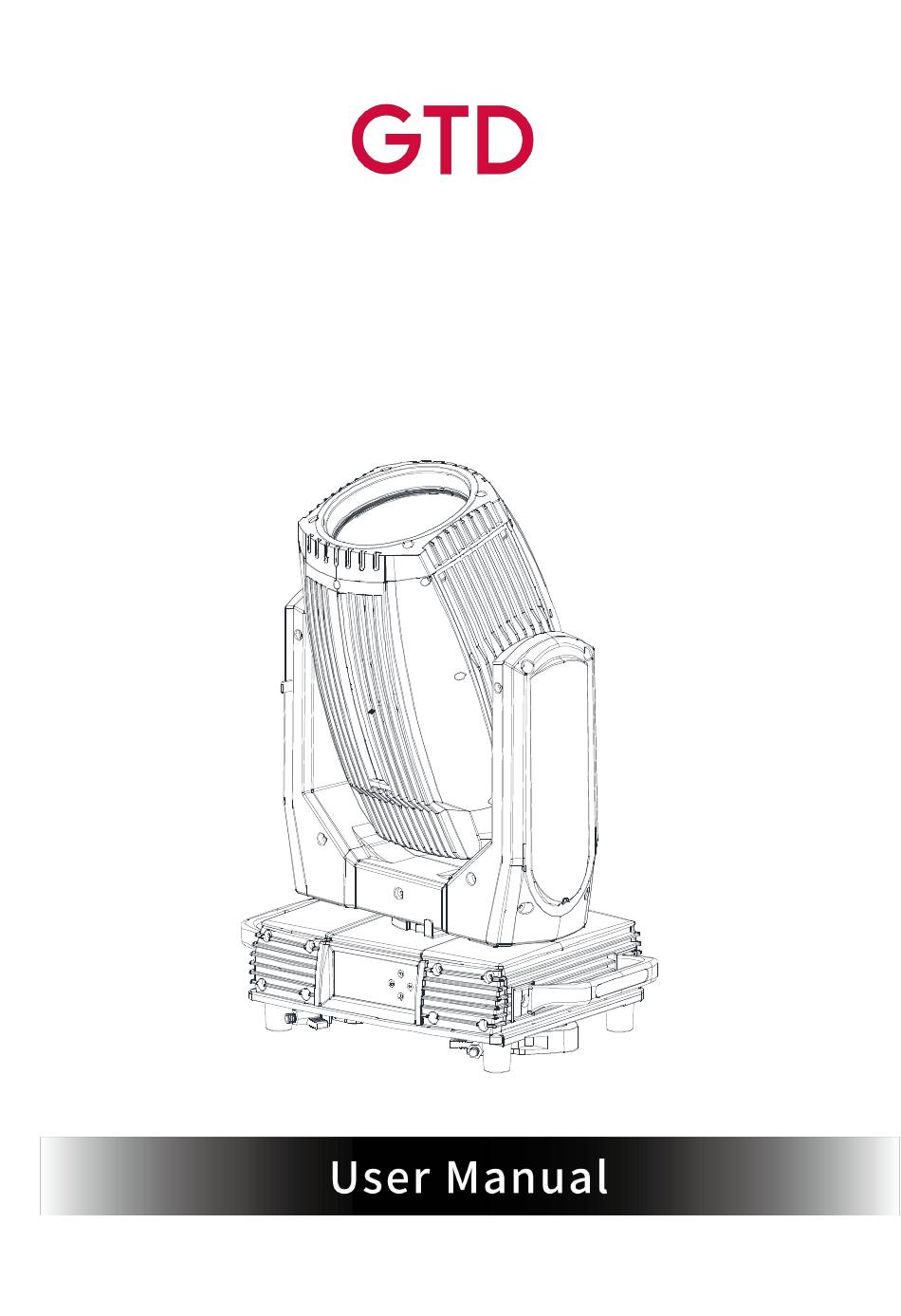

  • Page 1 GTD-F300 II BEAM...
  • Page 2 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    Contents 1. Safety instructions ............................... 1 2. Product introductions..............................3 2.1 Dimensions ................................3 2.2 Fixture overview ..............................4 2.3 Accessories ................................4 3. Packing and shipping ..............................5 3.1 Protection lock ................................. 5 3.2 Unpacking ................................5 3.3 Packing after use ..............................5 4.

  • Page 4: Safety Instructions

    Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.

  • Page 5: General Guidelines

    To ensure operational safety, broken or damaged cables and light source can only be fixed or replaced by certified  technicians, certified local distributors or the manufacturer. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured  parts.

  • Page 6: Product Introductions

    2. Production instructions 2.1 Dimensions [15.75] [15.60] [18.66] 270°...

  • Page 7: Fixture Overview

    2.2 Fixture overview Head module Focus lens module Gobos system Radiator module Pan-tilt frame Base module 2.3 Accessories Item Unit Remark User Manual Safety cable Φ4*60cm 7*19 pc with hook Material: Steel 3-pins signal line Power line 2.5m...

  • Page 8: Packing And Shipping

    3. Packing and shipping 3.1 Protection lock Pan and tilt locks are equipped to ensure safe transportation. The pan axis has 4 locking points. Pan lock 3.2 Unpacking Notes All products are quality controlled before they dispatched to customers. If the fixture is damaged during delivery, the customer must notify the shipper and manufacturer to file a damage insurance claim.

  • Page 9: Installation

    4. Installation 4.1 Clamps installation The fixture can be placed on the stage or mounted on the truss which faces any direction. Attach the clamps to the mounting position on the base of the fixture. Warning：Use two clamps when mounting the fixture. Always remember to use the safety cable which goes through the mounting hole on the base.

  • Page 10: Power/ Control Connection

    5. Power/ Control connection 5.1 Power connection Connection method:  L (Live) Brown wire  E (Earth) Yellow / Green bi-color wire  N (Neutral) Blue wire The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. Please ...

  • Page 11: Control Panel

    6. Control panel 6.1 Panel instruction GTD-F300 II BEAM  The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code and functions menu.  Press UP or DOWN to view or select the function menu.

  • Page 12: Technical Specification

    7. Technical specification Optical  Light source: LED 230W Expected average lifetime: 20000 h Zoom range：0°～2° CRI：Ra≥70 Focus: with precision HD Glass lens, electronic linear focus clearly Prism: 2 independent prism wheels Frost: 1-independent frost effect Gobo  Fixed gobo wheel: 10 gobos + 2 effect gobos + open, CW/CCW rotation, variable speed Color ...

  • Page 13: Certification And Safety

     Cooling: Active fan  Humidity: ≤85% Certification and Safety  EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013, GB/T 17743-2007, GB 17625.1-2012 Safety: EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-2008 Photometric  Other features  Enhanced stability of the fixture due to the wide input voltage AC/DC switching power supply which both reduces the ...

  • Page 14: Gobos And Colors

    8. Gobos and colors 8.1 Gobos One fixed gobo wheel: 10 gobos + 2 effect gobos + open, CW/CCW rotation, watery effect, variable speed 8.2 Colors Color wheel: 14 colors + open, linear color conversion and “Half rainbow effect” in both direction. 1、Red 2、Deep yellow 3、Blue...

  • Page 15: Menu Structure

    9. Menu structure Menu structure Set DMX Function Address 001-512 Set the starting DMX Address Channel Mode Standard (16ch) Standard mode Basic (13ch) Basic mode Extended (17ch) Extended mode Display All Display None Auto program … Display individual, all, or no current Display Value Frost DMX values on the home screen.
  • Page 16 Fan 3 status (normal…) and XXXX Fan 3 Error Info. No/… Show any recorded error records Software Version "Product name" Name of product RDM 0104-xxxxxx RDM manufacturer ID = 0104 Software Vx.x Software version Date & Time Current time Software Build Date Software build time System User...
  • Page 17 Modes Exponential Exponential dimming curve Parabolic Parabolic dimming curve Calibration Input Password Used to calibrate and adjust each available value/position. (provide Pan = XXX … … Blizzard this password) Reset Reset All No/Yes Reset all motors Reset Colors No/Yes Reset color wheel Reset Gobos No/Yes Reset gobo wheels...

  • Page 18: Dmx Protocol

    10. DMX Protocol Standard Default Standard Name DMX value DMX percentage Function (16ch) Value 0.0% 100.0% 0(0%) 65535 0.0% 100.0% Pan, fine (LSB) 0.0% 100.0% Tilt Tilt (18.0%) 65535 0.0% 100.0% Tilt, fine (LSB) Scan 0.0% 100.0% Reserved 0(0%) speed 0.0% 12.2% Closed...
  • Page 19 34.5% 37.3% Color 11 37.6% 40.4% Color 12 40.8% 43.5% Color 13 43.9% 49.8% Color 14 Color1 continous rotation CW from 50.2% 73.3% slow to fast 73.7% 76.5% Stop Color1 continous rotation CCW from 76.9% 100.0% slow to fast 0.0% 5.9% Open gobo 6.3%...
  • Page 20 37.6% 39.6% Gobo 8 shake 40.0% 42.0% Gobo 9 shake 42.4% 44.3% Gobo 10 shake 44.7% 46.7% Gobo 11 shake 47.1% 49.0% Gobo 12 shake 49.4% 49.8% Open gobo Gobo wheel continous rotation CW 50.2% 73.3% from slow to fast 73.7% 76.5% Stop...
  • Page 21 27.45% 30.98% Pan/Tilt motor reset after 5 seconds 31.37% 34.90% All color motor reset after 5 seconds 35.29% 38.82% All gobo motor reset after 5 seconds 39.22% 42.75% Other motor reset after 5 seconds 43.14% 46.67% Reserved 47.06% 50.59% Built-in program 1 50.98% 54.51% Built-in program 2...
  • Page 22 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open Intensity 0.0% 100.0% No light  Full light 0(0%) 0.0% 2.7% Open 3.1% 5.9% Color 1 6.3% 9.0% Color 2 9.4% 12.2% Color 3 12.5% 15.3% Color 4 15.7% 18.4%...
  • Page 23 12.2% 12.9% Gobo 6 13.3% 14.1% Gobo 7 14.5% 15.3% Gobo 8 15.7% 16.5% Gobo 9 16.9% 17.6% Gobo 10 18.0% 18.8% Gobo 11 19.2% 20.0% Gobo 12 20.4% 20.8% Open gobo 21.2% 23.1% Gobo 1 shake 23.5% 25.5% Gobo 2 shake 25.9% 27.8% Gobo 3 shake...
  • Page 24 0.0% 12.2% Prism2 0(0%) 12.5% 100.0% Prism On 0.0% 49.8% Prism indexed Prism continous rotation CW from 50.2% 73.3% slow to fast Prism 0(0%) rotation 73.7% 76.5% Stop Prism continous rotation CCW from 76.9% 100.0% slow to fast Frost 0.0% 100.0% Frost zoom from smallest to biggest 0(0%)
  • Page 25 82.35% 85.88% Built-in program 10 86.3% 100.0% Reserved Extended Default Extended Name DMX value DMX percentage Function (17ch) Value 0.0% 100.0% 0(0%) 65535 0.0% 100.0% Pan, fine (LSB) 0.0% 100.0% Tilt Tilt 46(18.0%) 65535 0.0% 100.0% Tilt, fine (LSB) Scan speed 0.0% 100.0% Reserved...
  • Page 26 28.2% 31.0% Color 9 31.4% 34.1% Color 10 34.5% 37.3% Color 11 37.6% 40.4% Color 12 40.8% 43.5% Color 13 43.9% 49.8% Color 14 Color1 continous rotation CW from 50.2% 73.3% slow to fast 73.7% 76.5% Stop Color1 continous rotation CCW from 76.9% 100.0% slow to fast...
  • Page 27 32.9% 34.9% Gobo 6 shake 35.3% 37.3% Gobo 7 shake 37.6% 39.6% Gobo 8 shake 40.0% 42.0% Gobo 9 shake 42.4% 44.3% Gobo 10 shake 44.7% 46.7% Gobo 11 shake 47.1% 49.0% Gobo 12 shake 49.4% 49.8% Open gobo Gobo wheel continous rotation CW 50.2% 73.3% from slow to fast...
  • Page 28 19.61% 23.14% Reserved 23.53% 27.06% Reset all motor after 5 seconds 27.45% 30.98% Pan/Tilt motor reset after 5 seconds 31.37% 34.90% All color motor reset after 5 seconds 35.29% 38.82% All gobo motor reset after 5 seconds 39.22% 42.75% Other motor reset after 5 seconds 43.14% 46.67% Reserved...

  • Page 29: System Wiring Diagram

    11. System wiring diagram...

  • Page 30: Maintenance And Troubleshooting

    It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting. Notes: Damage resulted from dust, smoke, oil or improper use is not covered by warranty.
  • Page 31 Problem Possible Cause Suggested Correction Ensure the address in “Run setting > Address Wrong DMX address for the fixture in the Setting >Address” of the fixture is consistent control system. with the address in the control system. Choose the channel mode in “Channel setting > Misuse in “Channel setting >...
  • Page 32 Problem Possible Cause Suggested Correction or damaged ballast. automatic-resetting thermal protection, which deactivates the ballast should it overheat. Normal operation resumes once the ballast has cooled sufficiently. Burned-out or failing lamps, or high temperatures in or around the fixture, can cause the ballast to overheat, so we need solve the problem and replace components as required Thermostat damaged.
  • Page 33 Problem Possible Cause Suggested Correction known to be operating properly and then replace as necessary Follow the instructions stated in this user Excessive dusts or smudges on the rotating manual to clean the rotating gobo wheel or color gobo wheel or color wheel. wheel.
