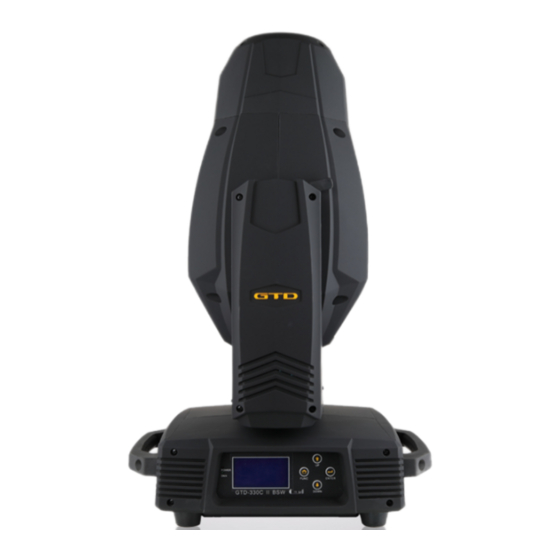

- Page 1 Moving Head (beam-spot-wash) GTD-330 N BSW User’s Manual Guangzhou GTD Lighting Technology Co., Ltd. Tel: +86-20-61808296 Fax: +86-20-61812282 www.gtd-lighting.com http://...
- Page 2 © 2018 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
GTD-330 N BSW User Manual Contents Safety instructions ..................................3 General guidelines ..................................4 Packing and shipping .................................. 5 Protection lock ....................................5 Unpacking ....................................... 5 Packing after use..................................... 5 Accessories ....................................6 Product introduction .................................. 6 Installation ....................................7 Clamps installation .................................. -
Page 4: Safety Instructions
GTD-330 N BSW User Manual Safety instructions WARNING! Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual. -
Page 5: General Guidelines
Broken or damaged cables can only be fixed or changed by certified technicians, certified local distributors or the manufacturer to ensure operational safety. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured parts. ... -
Page 6: Packing And Shipping
GTD-330 N BSW User Manual Packing and shipping Protection lock Pan and tilt locks are equipped to ensure safe transportation. PAN: 4 lock positions are located evenly on the Pan. TILT: 3 lock positions are located on left and right side of the Tilt with the third one in the center. -
Page 7: Product Introduction
GTD-330 N BSW User Manual Product introduction Head assembly Tilt Color & gobo wheels assembly Lamp source Base Display Focus, prism assembly... -
Page 8: Installation
GTD-330 N BSW User Manual Installation Clamps installation The fixture can be placed on the stage or mounted on the truss facing any direction. Attach the clamps to the mounting position on the base of the fixture. Warning Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise to lock. Always remember to use the safety cable which goes through the mounting hole on the base. -
Page 9: Lamp Fitting And Adjustment
GTD-330 N BSW User Manual Lamp fitting and adjustment Disconnect the fixture from AC power. Allow the fixture to cool down for at least 15 minutes. Put the Tilt lock-catch in the horizontal position. Dismounting the lamp (see below): remove the top cover of the shell first, and then the bulb cooling fans. Loosen the two screws of the bulb springy retainer. -
Page 10: Power/ Control Connection
GTD-330 N BSW User Manual Power/ Control connection Power connection Connection method: L (Live) Brown wire E (Earth) Yellow / Green bi-color wire N (Neutral) Blue wire The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually. -
Page 11: Control Panel
GTD-330 N BSW User Manual Control panel The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code and functions menu. Press UP or DOWN to view or select the function menu. -
Page 12: Gobos
GTD-330 N BSW User Manual Gobos One rotating gobo wheel: 8 interchangeable gobos + open, indexing, CW/CCW rotation, variable speed One fixed gobo wheel: 11 gobos + open, CW/CCW rotation, variable speed Rotating gobo wheel Fixed gobo wheel Colors ... -
Page 13: Menu Structure
GTD-330 N BSW User Manual Menu structure 330 N BSW – Menu Structure Revision: A Valid from firmware version: 1.0 Level 1 Level 2 Level 3 Level 4 Info Run setting Address Setting Address: 001~ XXX Setting the DMX address Value Display Pan ……, All, Off... - Page 14 GTD-330 N BSW User Manual Level 1 Level 2 Level 3 Level 4 Info System Setting Status Setting Console Set Addr Enable/Disable Address can be changed by console No Signal Status Off/Hold/Auto/Music The status while no signal Pan Reverse Enable/Disable...
- Page 15 GTD-330 N BSW User Manual Level 1 Level 2 Level 3 Level 4 Info Channel Setting Channel Mode Standard Mode Standard channel mode Basic Mode Basic channel mode Extended Mode Extended channel mode Custom Mode 1 Custom channel mode 1...
-
Page 16: Dmx Protocol
GTD-330 N BSW User Manual DMX protocol 330 N BSW - DMX Protocol Revision: A Valid from firmware version: 1.0 DMX mode Default Name DMX value DMX percentage Function Standard Basic Extended (19ch) (16ch) (22ch) Value 0.0% 12.2% Closed 12.5% 24.7%... - Page 17 GTD-330 N BSW User Manual DMX mode Default Name DMX value DMX percentage Function Standard Basic Extended Value (19ch) (16ch) (22ch) 0.0% 2.7% Open gobo 3.1% 3.9% Gobo 1 4.3% 5.1% Gobo 2 5.5% 6.3% Gobo 3 6.7% 7.5% Gobo 4 7.8%...
- Page 18 GTD-330 N BSW User Manual DMX mode Default Name DMX value DMX percentage Function Standard Basic Extended Value (19ch) (16ch) (22ch) 0.0% 2.7% Open gobo 3.1% 4.7% Gobo 1 5.1% 6.7% Gobo 2 7.1% 8.6% Gobo 3 9.0% 10.6% Gobo 4 11.0%...
- Page 19 GTD-330 N BSW User Manual DMX mode Default Name DMX value DMX percentage Function Standard Basic Extended Value (19ch) (16ch) (22ch) 0.0% 49.8% Prism2 0(0%) 50.2% 100.0% 0.0% 49.8% Frost 0(0%) 50.2% 100.0% 0.0% 100.0% 0(0%) 65535 0.0% 100.0% Pan, fine (LSB) 0.0%...
-
Page 20: Technical Specification
GTD-330 N BSW User Manual Technical specification Optical Light source: MSD Platinum 16 R Expected average lifetime: 1500 hours Beam angle (zoom): SPOT: 3°- 40° BEAM: 3°-15° WASH: 10°-60° Focus: Variable range, linear focus Prism: one 8-facet prism, one flat 8-facet prism, individually controllable, generating two rings of prisms rotating in opposite directions. - Page 21 GTD-330 N BSW User Manual Mounting points: Four quarter-turn locking points + attachment points for safety wire Dynamic effects Pan/Tilt movement: 540˚/270˚, 8 or 16 bit control Strobe: 1-20Hz, synchronized, pulse effects Dimmer: 0-100%, 16-bit, mechanical dimming Thermal ...
- Page 22 GTD-330 N BSW User Manual Photometric(BEAM) Photometric(WASH) Other features Eco-friendly design: equipped with intelligent tracking system to decrease the power of lamp source. Power setting: built-in continuous rechargeable battery, allowing setting functional data via LCD interface without power connection ...
-
Page 23: Cleaning And Maintenance
GTD-330 N BSW User Manual Cleaning and maintenance It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting. -
Page 24: Troubleshooting
GTD-330 N BSW User Manual Troubleshooting Problem Possible Cause Suggested Correction Power switch not turned on. Turn on power switch. Locate the blown fuse. Remove the broken fuse. Insert a Take out the fuse and check if it is blown. - Page 25 GTD-330 N BSW User Manual Problem Possible Cause Suggested Correction Test the lamp in an adjacent fixture which is known to be Normal end of lamp life. operating properly and then replace as necessary. The midline of the lamp is not aligned with the Reinstall the lamp.
-
Page 26: System Wiring Diagram
GTD-330 N BSW User Manual System wiring diagram... -
Page 27: Spare Parts List
GTD-330 N BSW User Manual Spare parts list Item Notes Switching Power Supply 1412050061A EPFC400-3628N Electronic Ballast 1412020012A Philips 16R Lamp 1306030011A MSD Platinum 16 R Display board 5809011115B 330N BSW-101A20 SDI0208B-5 Scanning board 5809011116B 330N BSW 201B20 SCR0001H(1-H3) Fan control board... - Page 28 GTD-330 N BSW User Manual Notes: P/N: 1502011067A Time: January 17 , 2018...
