Summary of Contents for GTD GTD-F15 II BSWP PRO

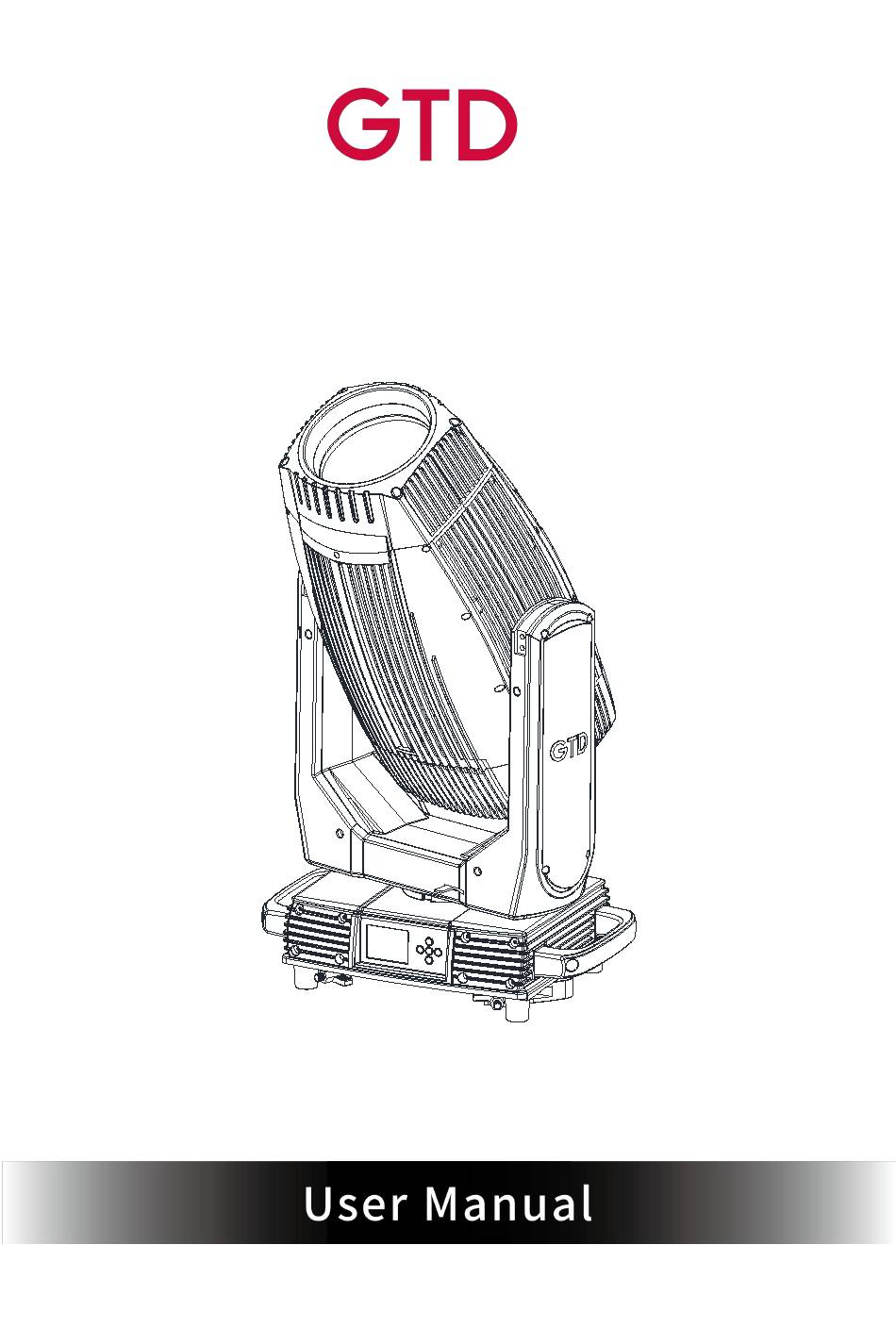

  • Page 1 GTD-F15 II BSWP PRO...
  • Page 2 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    Contents 1. Safety instructions ............................... 1 2. Product introductions..............................3 2.1 Dimensions ................................3 2.2 Fixture overview ..............................4 2.3 Accessories ................................4 3. Packing and shipping ..............................5 3.1 Protection lock ................................. 5 3.2 Unpacking ................................5 3.3 Packing after use ..............................5 4.

  • Page 4: Safety Instructions

    Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.

  • Page 5: General Guidelines

    Broken or damaged cables and light source can only be fixed or changed by certified technicians, certified  local distributors or the manufacturer to ensure operational safety. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD  manufactured parts.

  • Page 6: Product Introductions

    2. Production instructions 2.1 Dimension [16.59] [22.92] [13.54] [18.28] 270°...

  • Page 7: Fixture Overview

    2.2 Fixture overview Head module 固定镜头组件 Prism module 调焦放大组件 Cutting module 切割组件 Framing blade system 花样架组件 CMY组件 Heat module 散热组件 Pan-tilt frame 水平垂直扫描架 底箱组件 Base module 2.3 Accessories Item Unit Remark User Manual Φ5*60cm 7*19 pc with hook Material：Steel Safety cable...

  • Page 8: Packing And Shipping

    3. Packing and shipping 3.1 Protection lock Pan and tilt locks are equipped to ensure safe transportation. PAN: 4 lock positions are located evenly on the Pan. TILT: 7 lock positions are located on left and right side of the Tilt with the third one in the center. Tilt lock Pan lock 3.2 Unpacking...

  • Page 9: Installation

    Lock pan and tilt. Flight case: Wrap the fixture in plastic bags. Hold it by the handles, and then carefully place it inside the flight case along with all the accessories. Close the cover. Do not upside down. Cardboard box: Wrap the fixture in plastic bags. Put it in the packaging foam along with all the accessories. Place the other set of packaging foam on top then carefully put it inside the cardboard box.

  • Page 10: Power/ Control Connection

    5. Power/ Control connection 5.1 Power connection Connection method: L (Live) Brown wire   E (Earth) Yellow / Green bi-color wire  N (Neutral) Blue wire  The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually.

  • Page 11: Control Panel

    6. Control panel 6.1 Panel instruction GTD-F15 II BSWP PRO The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address  code and functions menu. Press the left key to enter the menu, press again to exit the menu, press the up and down keys to select the ...
  • Page 12 Fixed gobo wheel: 7 gobos + open，CW/CCW rotation, variable speed Effect wheel: CW/CCW rotation, variable speed Cutting system  1 cutting wheel capable of rotating 110 °; 4 mobile cutting molding pieces; Various geometric figures of different sizes can be generated, and 4 cutting pieces can achieve the whole cutting effect. Color ...

  • Page 13: Other Features

    Photometric  Other features  Sleep mode: uses the most advanced technology to remotely activate sleep mode. When the fixture is  disconnected from signal, the sleep mode is enabled automatically to make it more stable and safer. Sleep time can be customized.

  • Page 14: Gobos And Colors

    8. Gobos and colors 8.1 Gobo specification All patterns are made onto the metal gobos, and can be customized according to user’s requirement. The customized size is as below: Gobo material Outer dimension Effective dimension Thickness Glass gobo Φ27mm Φ18mm 1.1mm/2.2mm/3.5mm Gobo material: Glass 8.2 Gobos...

  • Page 15: Colors

    8.3 Colors One color wheel: 5 colors + open, split color, CW/CCW rotation, “Rainbow effect” in both directions Ra≥95 0: Open 1: Red 2: Orange 3: Green 4: Blue 5: UV Cutting effect CYAN YELLOW MAGENTA...

  • Page 16: Menu Structure

    9.Menu structure Level 4 Info Level 1 Level 2 Level 3 Address Setting Address: 001~ XXX Setting the DMX address setting Value Display Pan ……，All，Off Display the channel value Auto-Program Master /Slave Run auto program in master or slave Time Info Since power on XXXXXX Hour Since power on time...
  • Page 17 Wireless transfer DMX data to Wireless Reset another Wireless reset Restore Default Yes/No Restore to default value Product Select - Password- GTD xxx xxx xxx Product Name Select Dimmer Mode Mode1/2/3 Dimmer curve mode select Reset System Reset System reset ColorReset...
  • Page 18 Extended Mode Extended channel mode Custom Mode 1 Custom channel mode 1 Custom Mode 2 Custom channel mode 2 Custom Mode 3 Custom channel mode 3 Custom Max Channel Channel = XX Change the channel order Mode1 Pan = CH01 Custom Mode2 Custom...

  • Page 19: Dmx Protocol

    10. DMX Protocol Standard Default Standard Name DMX value DMX percentage Function (37ch) Value 0.0% 100.0% 0(0%) 65535 0.0% 100.0% Pan, fine (LSB) 0.0% 100.0% Tilt Tilt (18.0%) 65535 0.0% 100.0% Tilt, fine (LSB) Scan 0.0% 100.0% Reserved 0(0%) speed 0.0% 12.2% Closed...
  • Page 20 22.0% 31.0% Color 3 31.4% 40.4% Color 4 40.8% 49.8% Color 5 Color continous rotation CW 50.2% 73.3% from slow to fast 73.7% 76.5% Stop Color continous rotation CCW 76.9% 100.0% from slow to fast 0.0% 5.9% Open 6.3% 8.6% Gobo 1 9.0% 11.4%...
  • Page 21 14.9% 18.0% Gobo 3 18.4% 21.6% Gobo 4 22.0% 25.1% Gobo 5 25.5% 28.6% Gobo 6 29.0% 32.2% Gobo 1 shake 32.5% 35.7% Gobo 2 shake 38.4% 42.0% Gobo 3 shake 42.4% 45.9% Gobo 4 shake 46.3% 49.8% Gobo 5 shake 50.2% 53.7% Gobo 6 shake...
  • Page 22 Blade2 Blade2 position from outside to 0.0% 100.0% 0(0%) Positi. inside Blade2 Blade2 degree from positive to 0.0% 100.0% 0(0%) Degree negative Blade3 Blade3 position from outside to 0.0% 100.0% 0(0%) Positi. inside Blade3 Blade3 degree from positive to 0.0% 100.0% 0(0%) Degree...
  • Page 23 41.6% 43.5% Built-in blade macro 15 43.9% 45.9% Built-in blade macro 16 46.3% 48.2% Built-in blade macro 17 48.6% 50.6% Built-in blade macro 18 51.0% 52.9% Built-in blade macro 19 53.3% 55.3% Built-in blade macro 20 55.7% 57.6% Built-in blade macro 21 58.0% 60.0% Built-in blade macro 22...
  • Page 24 from slow to fast 0.0% 49.8% Frost 0(0%) Frost zoom from smallest to 50.2% 100.0% biggest 0.0% 3.5% No function 3.9% 7.5% No function 7.8% 11.4% No function 11.8% 15.3% Color wheel half color switch 15.7% 19.2% Color wheel random positioning 19.6% 23.1% Reserved...
  • Page 25 90.2% 90.6% 4kHz - dimmer frequency 91.0% 91.4% 12kHz - dimmer frequency 91.8% 92.2% 20kHz - dimmer frequency 92.5% 93.7% Reserved 94.1% 94.5% Linear - dimmer curve 94.9% 95.3% Exponent - dimmer curve 95.7% 96.1% Parabola - dimmer curve 96.5% 96.9% Fan smart mode 97.3%...
  • Page 26 Yellow 0.0% 100.0% White → Full yellow 0(0%) 0.0% 5.9% CMY color macro off CMY synchronous color from CMY color 6.3% 52.9% slow to fast 0(0%) macro CMY random color from slow to 53.3% 100.0% fast 0.0% 100.0% Warm → Cold 0(0%) 0.0% 2.7%...
  • Page 27 43.1% 46.3% Gobo 6 shake 46.7% 49.8% Gobo 7 shake Gobo wheel continous rotation 50.2% 73.3% CW from slow to fast 73.7% 76.5% Stop Gobo wheel continous rotation 76.9% 100.0% CCW from slow to fast 0.0% 7.5% Open 7.8% 11.0% Gobo 1 11.4% 14.5%...
  • Page 28 Wheel 12.2% 100.0% 0.0% 49.8% Effect Wheel indexed Effect Wheel continous rotation 50.2% 73.3% Effect CW from slow to fast Wheel 0(0%) 73.7% 76.5% Stop rotation Effect Wheel continous rotation 76.9% 100.0% CCW from slow to fast Blade1 Blade1 position from outside to 0.0% 100.0% 0(0%)
  • Page 29 18.0% 20.0% Built-in blade macro 5 20.4% 22.4% Built-in blade macro 6 22.7% 24.7% Built-in blade macro 7 25.1% 27.1% Built-in blade macro 8 27.5% 29.4% Built-in blade macro 9 29.8% 31.8% Built-in blade macro 10 32.2% 34.1% Built-in blade macro 11 34.5% 36.5% Built-in blade macro 12...
  • Page 30 75.3% 100.0% Closed iris Continuous adjustment from near Focus1 0.0% 100.0% 0(0%) to far Zoom adjustment from small to Zoom 0.0% 100.0% 0(0%) Prism 0.0% 12.2% 0(0%) 0.0% 49.8% Prism indexed Prism continous rotation CW 50.2% 73.3% from slow to fast Prism 0(0%) rotation...
  • Page 31 51.0% 54.5% Built-in program 1 54.9% 58.4% Built-in program 2 58.8% 62.4% Built-in program 3 62.7% 66.3% Built-in program 4 66.7% 70.2% Built-in program 5 70.6% 74.1% Built-in program 6 74.5% 78.0% Built-in program 7 78.4% 82.0% Built-in program 8 82.4% 85.9% Built-in program 9...
  • Page 32 Scan 0.0% 100.0% Reserved 0(0%) speed 0.0% 12.2% Closed 12.5% 24.7% Open Synchronous strobe from slow to 25.1% 49.8% Strobe/ fast 0(0%) Shutter 50.2% 62.4% Open 62.7% 87.5% Random strobe from slow to fast 87.8% 100.0% Open 0.0% 100.0% No light → Full light Intensity 0(0%) 65535...
  • Page 33 73.7% 76.5% Stop Color continous rotation CCW 76.9% 100.0% from slow to fast 0.0% 5.9% Open 6.3% 8.6% Gobo 1 9.0% 11.4% Gobo 2 11.8% 14.1% Gobo 3 14.5% 16.9% Gobo 4 17.3% 19.6% Gobo 5 20.0% 22.4% Gobo 6 22.7% 25.1% Gobo 7...
  • Page 34 32.5% 35.7% Gobo 2 shake 38.4% 42.0% Gobo 3 shake 42.4% 45.9% Gobo 4 shake 46.3% 49.8% Gobo 5 shake 50.2% 53.7% Gobo 6 shake Gobo wheel continous rotation 50.2% 73.3% CW from slow to fast 73.7% 76.5% Stop Gobo wheel continous rotation 76.9% 100.0% CCW from slow to fast...
  • Page 35 Positi. inside 65535 0.0% 100.0% Blade2 position, fine (LSB) Blade2 degree from positive to 0.0% 100.0% Blade2 negative 0(0%) Degree 65535 0.0% 100.0% Blade2 degree, fine (LSB) Blade3 position from outside to 0.0% 100.0% Blade3 inside 0(0%) Positi. 65535 0.0% 100.0% Blade3 position, fine (LSB) Blade3 degree from positive to...
  • Page 36 29.8% 31.8% Built-in blade macro 10 32.2% 34.1% Built-in blade macro 11 34.5% 36.5% Built-in blade macro 12 36.9% 38.8% Built-in blade macro 13 39.2% 41.2% Built-in blade macro 14 41.6% 43.5% Built-in blade macro 15 43.9% 45.9% Built-in blade macro 16 46.3% 48.2% Built-in blade macro 17...
  • Page 37 65535 0.0% 100.0% Zoom, fine (LSB) 0.0% 12.2% Prism 0(0%) 12.5% 100.0% 0.0% 49.8% Prism indexed Prism continous rotation CW 50.2% 73.3% from slow to fast Prism 0(0%) rotation 73.7% 76.5% Stop Prism continous rotation CCW 76.9% 100.0% from slow to fast 0.0% 49.8% Frost...
  • Page 38 62.7% 66.3% Built-in program 4 66.7% 70.2% Built-in program 5 70.6% 74.1% Built-in program 6 74.5% 78.0% Built-in program 7 78.4% 82.0% Built-in program 8 82.4% 85.9% Built-in program 9 86.3% 89.8% Built-in program 10 90.2% 90.6% 4kHz - dimmer frequency 91.0% 91.4% 12kHz - dimmer frequency...

  • Page 39: System Wiring Diagram

    11. System wiring diagram...

  • Page 40: Maintenance And Troubleshooting

    It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting. Notes: Damage resulted from dust, smoke, oil or improper use is not covered by warranty.
  • Page 41 Problem Possible Cause Suggested Correction wrong response to Open circuit or short circuit fault in the DMX Replace DMX cables as required. the commands of cables. the control system Ensure the address in “Run setting > Address Wrong DMX address for the fixture in the Setting >Address”...
  • Page 42 Problem Possible Cause Suggested Correction and draft conditions. The ballast incorporate internal automatic-resetting thermal protection, which deactivates the ballast should it overheat. Normal operation resumes once the ballast has Overheat ballast resulting in premature failure cooled sufficiently. Burned-out or failing lamps, or damaged ballast.
  • Page 43 Problem Possible Cause Suggested Correction Test the lamp in an adjacent fixture which is Normal end of lamp life known to be operating properly and then replace as necessary Follow the instructions stated in this user Excessive dusts or smudges on the rotating Wrong color manual to clean the rotating gobo wheel or color gobo wheel or color wheel.
