ALTAIR IPcom Series: Model IPB-306
5
HARDWARE

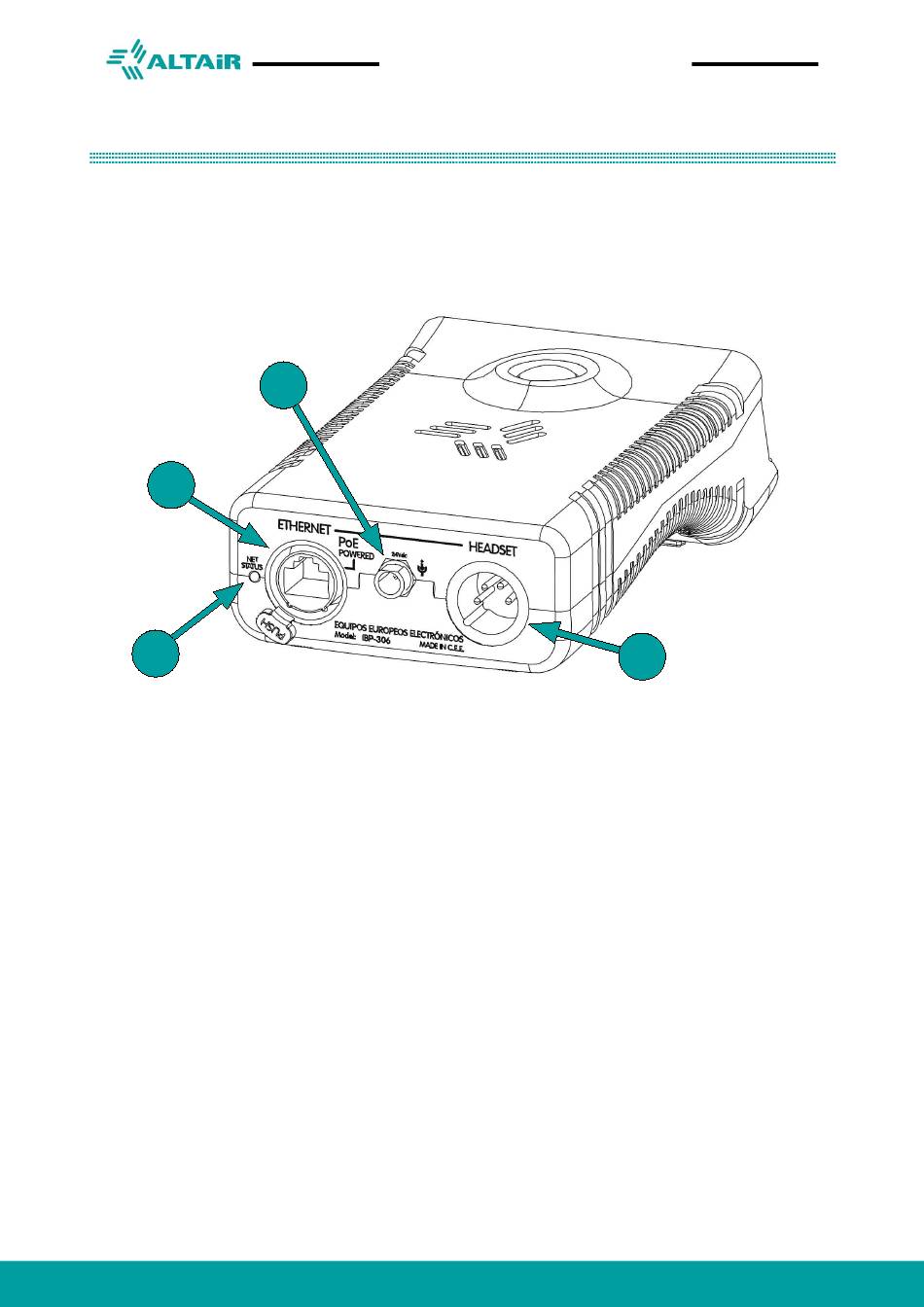

Rear Panel
C
B
A
D
Net Status (A)
This LED will indicate the status of the Ethernet connection and the beltpack powering.
Led will flash green with intermittent blue sparks when the beltpack is connected to an operating switch.
Led will flash green/blue when audio packets are transmitted around the system.
Ethernet Connector (B)
Ethernet RJ45 connector that supports PoE (Power over Ethernet) power in accordance with IEEE802.af
standard. Connector allows either etherCON (Neutrik TM) and standard RJ-45. 100/1000 Mb
Safety DC Connector (C)
DC to 24V safety connector with anti-pull lock.
PINOUT: Pin +24 Vdc | Body 0V GND
Note: In case of using PoE power, it is not necessary to use this connector.
Headset Connector (D)
4-pin male XLR connector. Supports single-ear or double-ear headphones equipped with female XLR4
PINOUT: Pin1 Mic gnd | Pin2 Mic + (pos) | Pin3 Ear gnd | Pin 4 Ear +(pos)
.
