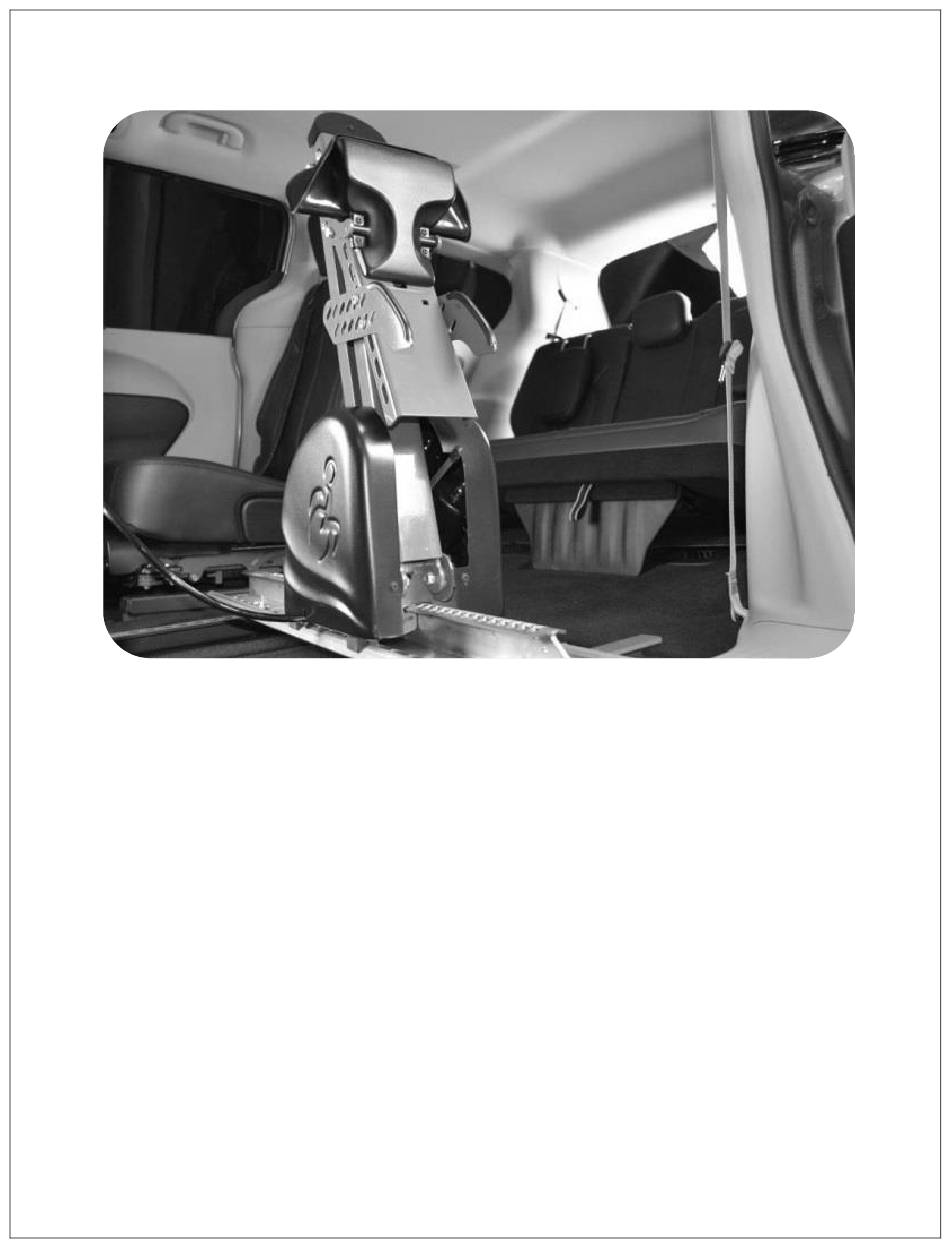

- Page 1 SPEEDY-LIFT INSTALLATION MANUAL SP-TOY04 TOYOTA SIENNA 2004-2011...
- Page 2 Nylon Insert Locknut 1/4-20 Thin PRD 337-211P Button Head Socket Cap Screw Zinc Plated 5/16-18 x 1/2 PRD 2946 Flange Locknut Zinc Plated 5/16-18 SP-TOY04-00 Floor Installation Kit -Left- PART NUMBER SP-TOY04 DESCRIPTION 1 of 5 Speedy-Lift 2 Toyota Sienna |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 3 Hex Cap Bolt Zinc Plated 5/16-18 x 2 1/4 G5 PRD 333-107 Nylon Insert Locknut 5/16-18 PRD 341-146P Flat Washer Zinc Plated I.D. 11/32 SAE 5/16 SCALE 1:5 SCALE 1:4 PART NUMBER SP-TOY04 DESCRIPTION 2 of 5 Speedy-Lift 2 Toyota Sienna |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 4 Hex Cap Bolt Zinc Plated 1/4-20 x 1/2 G5 PRD 333-105M Nylon Insert Locknut 1/4-20 Thin PRD BSHCS51618114P Button Head Socket Cap Screw Zinc Plated 5/16-18 x 1 1/4 SCALE 1:8 SCALE 1:5 PART NUMBER SP-TOY04 DESCRIPTION 3 of 5 Speedy-Lift 2 Toyota Sienna |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 5 SPEEDY-LIFT 2 TOYOTA SIENNA 2004 - 2010 SP700B Hook Assembly -Black- PRD 337-211P Button Head Socket Cap Screw Zinc Plated 5/16-18 x 1/2 SCALE 1:6 SCALE 1:5 PART NUMBER SP-TOY04 DESCRIPTION 4 of 5 Speedy-Lift 2 Toyota Sienna |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 6 PRD 337-211P Button Head Socket Cap Screw Zinc Plated 5/16-18 x 1/2 PRD 2946 Flange Locknut Zinc Plated 5/16-18 SCALE 1:5 SCALE 1:4 PART NUMBER SP-TOY04 SCALE 1:4 DESCRIPTION 5 of 5 Speedy-Lift 2 Toyota Sienna |tech@adaptsolutions.ca|866.641.0419|418.889.9838 fax ADAPT SOLUTIONS...
- Page 7 1. Start by removing or stowing the seat in the position you want to install the SPEEDY- LIFT. 2. Pre-assemble the floor adaptor kit. Secure the slotted angle adaptors SL-EQRS145 to the floor adaptors (tubing) using 5/16” X 2 1/4” bolts. NOTE: DO NOT FULLY TIGHTEN THE BOLTS. 3.
- Page 8 4. Install the floor adaptors onto the seat slider mechanism. 4. Secure the adaptors in place using a 5/16” X 3/4” socket set screw. Cover the socket set screw hole with the provided cap plug. NOTE: IN SOME APPLICATIONS, THE ADAPTORS WILL SEEM LOOSE AND BE ABLE TO MOVE FROM SIDE TO SIDE.
- Page 9 6. The SPEEDY-LIFT up/down and in/out motors can be disengaged manually to slide the SPEEDY- LIFT in and out and move the arm up and down. NOTE: When disengaing the arm, it will spring up as the arm of the SPEEDY-LIFT is aided by a 100-lb gas shock, so, hold the arm firmly when disengaging. To disengage, move the handle to the right and push down.
- Page 10 8. Install the electrical wiring for the SPEEDY-LIFT. Follow the instructions found in the attached document entitled: ELECTRICAL INSTALLATION FOR SPEEDY-LIFT. 9. Power the SPEEDY-LIFT all the way out. Attach the wheelchair hook and support assembly SP700 to the head of the SPEEDY-LIFT. The height of the hook assembly may need to be adjusted depending on the height or style of the wheelchair.
- Page 11 11. Press the ‘OUT’ button on the hand held pendant until the upper wheelchair support bracket is positioned 1/4” to 1/2” below the rigidizer bar on the wheelchair. Adjust the stop down bolt so that the arm stops in this position. 12.
- Page 12 13. Adjust the locking mechanism. Remove the wheelchair from the SPEEDY-LIFT. Press and hold the ‘IN’ button until the SPEEDY-LIFT is in its full up position. While holding the lock closed, pull the cable tight and secure the cable lock. Cut off the excess lenght of cable. Test slowly to see if the locking mechanism operates properly.
-
Page 13: Warning Decals
WARNING DECALS After completing the installation of the SPEEDY LIFT, please take time to install the warning decals. NOTE: The surface must be clean, dry and at ambient temperature for the sticker to stick to the surface. Start by locating a position to install the decals. ... -
Page 14: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES Bad electrical connections. Check and clean corrosion from all connections including the car’s battery cable connections. Hand pendant wire problem. Check hand pendant wire to make sure it is properly plugged. Check the wire for any cuts. If so, replace the wire. - Page 15 ELECTRICAL INSTALLATION FOR SPEEDY-LIFT 1. Thread the lead power cable (red +) under the doorstep molding and through the firewall. WARNING: Pass through a grommet in the firewall to prevent the cable from chaffing. 2. Install the circuit breaker near the battery and then connect the battery to the circuit breaker.
- Page 16 ELECTRICAL BOX CONNECTIONS ASENTO SPEEDY LIFT with...
- Page 17 SPEEDY LIFT ALONE SPEEDY LIFT CORD RED = 12 V POWER SUPPLY BLACK = GROUNDED TO THE CHASSIS...
-
Page 18: Year Limited Warranty
The only remedy for a defect in one of Adapt Solutions products shall be the repair or the replacement, at the discretion of Adapt Solutions, of the defective part or component. If repair or replacement is not commercially practical or cannot be timely made, Adapt Solutions may decide to refund the purchase price of the equipment (XL-BASE;...
