Summary of Contents for BioLAB BCBHR-304

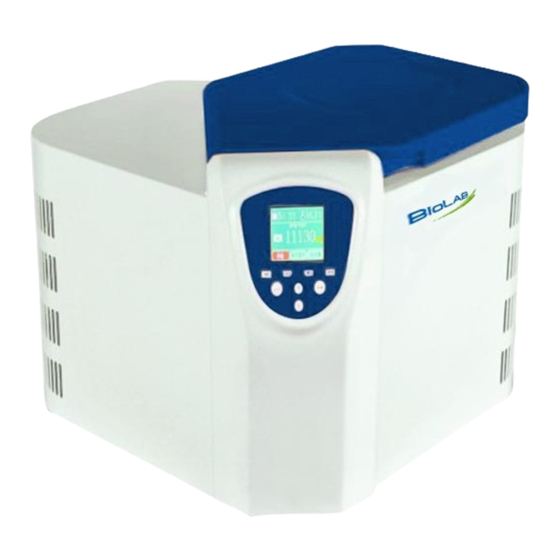

- Page 1 Operation Manual BCBHR-304 Benchtop High Speed Refrigerated Centrifuge Thank you for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
-
Page 2: Table Of Contents
Benchtop High Speed Refrigerated Centrifuge BCBHR-304 Index 1. The name and model of the product...................3 2. Features and applications.........................3 3. The operation principles........................4 4. Technical parameters..........................5 5. The rotor parameters..........................5 6. The operation procedures........................6 7. Safety Notice............................12 8. Warranty Service Instruction......................13 9. -
Page 3: The Name And Model Of The Product
Benchtop High Speed Refrigerated Centrifuge BCBHR-304 Features and Applications 1. BCBHR-304 Benchtop High Speed Refrigerated Centrifuge (BCBHR-304 is now will be referred as this machine) is an advanced facility widely applied in biochemistry, health and medicine, food safety, life science, agriculture science, grassland farming science, blood bank, blood station, biological product, pharmacy product, to make sample separation, precipitation and concentration, and it’s the high-tech product aiming at... -
Page 4: The Operation Principles
Benchtop High Speed Refrigerated Centrifuge BCBHR-304 There are many rotors with different levels. The tube frame can be replaced, and there are many tubes, convenient to choose. 5. Step 5: Set up the rotor mode, the rotating speed and the needed time. -
Page 5: Technical Parameters
Benchtop High Speed Refrigerated Centrifuge BCBHR-304 Technical parameters Maximum rotate speed 16800r/min Maximum centrifugal force 19600×g Maximum capacity 4×100ml Time range 0～99h59min ≦ Noise: 50dB Rotate speed precision ±50r/ min Power AC 220V 50HZ 15A Dimension(L×W×H) 710×630×350mm Weight 75kg The rotor parameters... -
Page 6: The Operation Procedures
Benchtop High Speed Refrigerated Centrifuge BCBHR-304 The operation procedures Step 1: Place the centrifuge machine on the platform and ensure its balance. Shake the machine with hands to check out whether the machine has been placed stably or not. Step 2: Plug the supply cord into the outlet and press down the power switch (the power switch is on the right bottom of the machine). - Page 7 Benchtop High Speed Refrigerated Centrifuge BCBHR-304 The diagram of the control panel. 1. The operation and time setting area. 2. The display area of the parameter numbers. 3. The operation icon. 4. The setting of rotor modes. 5. The setting of rotating speed.
- Page 8 Benchtop High Speed Refrigerated Centrifuge BCBHR-304 Press the “ SET” button to enter the first adjustment panel, or touch the screen and ） click the rotating speed area to enter the same panel. As it is shown below: Press the “...
- Page 9 Benchtop High Speed Refrigerated Centrifuge BCBHR-304 ● Press the “ SET” button to enter the rotating speed adjustment panel. Next, press the “ UP” or “ DOWN” button and press the “ SET” button again to enter the time adjustment area.
- Page 10 Benchtop High Speed Refrigerated Centrifuge BCBHR-304 ● Press the “ SET” button to enter next step, and the needed temperature can be chosen from -20 centigrade to 40 centigrade by pressing the “ UP” or “ DOWN” button. As it is shown below: 3）On the bottom of the first adjustment panel, press the “...
- Page 11 Benchtop High Speed Refrigerated Centrifuge BCBHR-304 ● Press the “ DOWN” button to adjust the deceleration of the rotating speed, or touch the screen and click the icon to do the same operation. There are 10 deceleration levels: 0 is the slowest while 9 is the fastest.
-
Page 12: Safety Notice
Benchtop High Speed Refrigerated Centrifuge BCBHR-304 6. After checking out the settings mentioned above, press the “ START” button to start the operation of the machine. During the operation, the current centrifugal force can be displayed on the window by pressing the “... -
Page 13: Warranty Service Instruction
Benchtop High Speed Refrigerated Centrifuge BCBHR-304 the operation completely. 6. The power supply has its own earth wire, so the null line and the earth wire cannot be used together, so as to prevent the damage of electric shock. 7. After the whole separation, the centrifuge machine should be cleaned up in time, the power switch should be turn off, and the power supply should be cut off. -
Page 14: Transportation And Storage Of The Machine
Benchtop High Speed Refrigerated Centrifuge BCBHR-304 machine cannot be operated. After its cooling, the machine goes back to work normally. Besides the malfunctions mentioned above, please contact the technicians of the manufacturer to obviate the malfunctions.] The obviating methods of the common malfunctions are as followed. -
Page 15: Unpacking And Examination Of The Machine
Benchtop High Speed Refrigerated Centrifuge BCBHR-304 Unpacking and Examination of the machine 1. Place the outer container in accordance with the “UP” sign on it, and take out the machine after unpacking the outer container. 2. Please check and examine the machine and the accessories according to the packing list. If there are any mistakes, please contact the supplier or the marketing department of the manufacturer in time. - Page 16 Benchtop High Speed Refrigerated Centrifuge BCBHR-304 BIOLAB SCIENTIFIC LTD. 3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8 Canada Email: contact@biolabscientific.com Tel: +1 707 533 1445 Website: www.biolabscientific.com www.biolabscientific.com...
