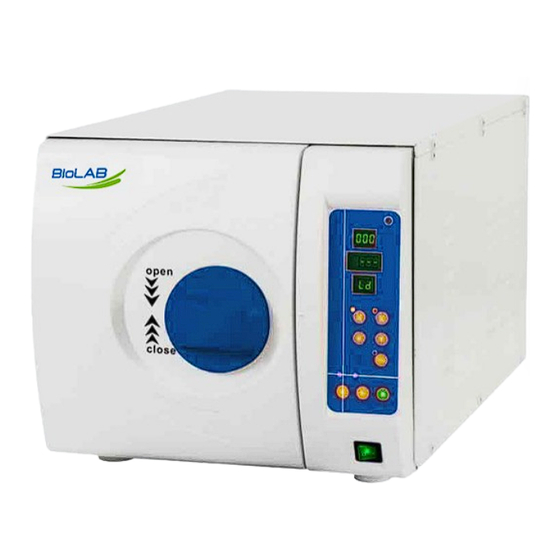

- Page 1 BAMN-201 Medical Class N Autoclave Thank you very much for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
-
Page 2: Table Of Contents
Medical Class N Autoclave BAMN-201 Index 1. Brief introduction...........................04 2. Using range..............................05 3. Parameters and sterilization programs..................05 4. Control panel............................06 5. Installation...............................07 6. Operation..............................08 7. Abnormal Situation..........................11 8. Maintenance............................12 9. Transportation and Storage......................13 10. Warranty..............................13 11. Accessories..............................14 www.biolabscientific.com... - Page 3 Medical Class N Autoclave BAMN-201 Explanation of symbols www.biolabscientific.com...
-
Page 4: Brief Introduction
Medical Class N Autoclave BAMN-201 Safety warning Please read below carefully: Electric Shock, Fire or Equipment damage might happen if you ignore below warning Please use 3-hole socket, and ensure the socket has been connected well with the ground. Do not put the autoclave on a place that the power are difficult to be cut off. -
Page 5: Using Range
Medical Class N Autoclave BAMN-201 Using range This autoclave can be used for medical purposes, e.g. In general medical practices, dentistry, facilities for personal hygiene and beauty care and also veterinary practices. It is also used for materials and equipment which are likely to come into contact with blood or body fluids, e.g. Implements used by beauty therapists, tattooists, body piercers and hairdressers. -
Page 6: Control Panel
Medical Class N Autoclave BAMN-201 3.2 Sterilization programs Process sterilizing time Sterilizing temperature Sterilizing pressure 121°C/unwrapped 20min 121°C 1.1bar 134°C/unwrapped 5min 134°C 2.1bar Control Panel 1 Pressure It shows the relative pressure inside chamber. Unit: Bar 2. Temperature It shows the temperature inside chamber. -
Page 7: Installation
Medical Class N Autoclave BAMN-201 121°C solid 134°C solid 6~8. Adjust sterilization time 9. Fill water Press “fill water” key once, the “fill water” indicator will be on, the water can fill into the product. Press “fill water” key again, the “fill water” indicator will be off, water will be stopped filling. -
Page 8: Operation
Medical Class N Autoclave BAMN-201 5.2 Adjust atmospheric pressure Open the door, press 134°C/unwrapped for 5 seconds. When you hear a beep sound, the atmospheric pressure has been adjusted. 5.3 Adjust time and date 1. Press “STOP” key for 20 seconds. The screen shows. Then, release the key. - Page 9 Medical Class N Autoclave BAMN-201 key again to stop fill water. ATTENTION: 1. The pipe in clean water tank must reach the bottom of the tank. Please see below pic. 2. 2. The pipe in waste water tank should not reach the water inside. Also, fix the file with the water tank.
- Page 10 Medical Class N Autoclave BAMN-201 6.2.2Close the autoclave’s door If the door is not locked, it will alarm. Please turn the handle right to Max position to lock the door. 6.2.3 Choose sterilization program, then start After the door is closed, choose the relative sterilization program according to the kinds of loads in the chamber.
-
Page 11: Abnormal Situation
Medical Class N Autoclave BAMN-201 Abnormal Situation The sterilizer will give alarm, release pressure and stop heating automatically if it has any abnormal situations during working. It will absolutely keep the user safe and display the error code( See the below page 14). -
Page 12: Maintenance
Medical Class N Autoclave BAMN-201 Maintenance 8.1 Door Tightness Adjustment Door Adjustment Push down the lever and rotate the door to adjust tightness. As shown in below picture, anticlockwise turning will tighten the door, i.e., the door will be closer to the chamber. Clockwise turning the door will loosen it. -
Page 13: Transportation And Storage
Medical Class N Autoclave BAMN-201 Transportation & Storage 9.1 Preparation Cool down the sterilizer and disconnect power. 9.2 Drain water Empty all tanks, assemble the pipe without joint into bleeder valve. A is the outlet valve for waste water, while B is the outlet valve for clean water (If you will not use this autoclave for a long time, you shall drain clean water here). -
Page 14: Accessories
Medical Class N Autoclave BAMN-201 Accessories Accessories Q’ty (PC) Drainage pipe Tray Cable with plug Tray shelf Tray-hand-holder Fuse Instruction Manual www.biolabscientific.com... - Page 15 Medical Class N Autoclave BAMN-201 Appendixes Appendix 1: Code and Explanation Item Code Condition Condition explanation Prepare Sterilizer prepares to start work Sterilizer starts to pre-vacuum or three Vacuum times vacuum Show working time Bactericidal Showing working time Drying the equipment’s inside of the...
- Page 16 Medical Class N Autoclave BAMN-201 Appendix 3: Structure Diagram www.biolabscientific.com...
- Page 17 Medical Class N Autoclave BAMN-201 Appendix 4: Circuit Diagram Component parameters: Water pump power: AC: 230V 50Hz 47W Heating circle: AC: 230V 50Hz 1500W Heating rod: AC: 230V 50Hz 750W Solenoid valve: DC: 24V 5W www.biolabscientific.com...
- Page 18 BIOLAB SCIENTIFIC LIMITED 91 Trafford Crescent, Markham, Ontario, L3R 7J3, Canada +1 707 533 1445 info@biolabscientific.com www.biolabscientific.com...
