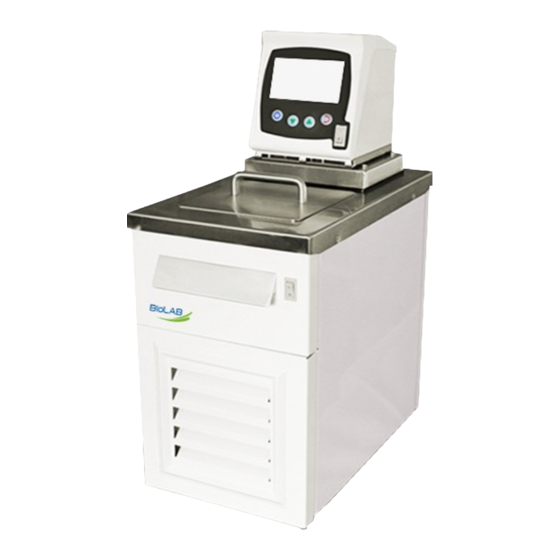

- Page 1 Operation Manual BCLT-203 Low Temperature Circulator Thank you for Choosing Biolab products. Please read the “Operating Instructions” and “Warranty” before operating this unit to assure proper operation.
-
Page 2: Table Of Contents
Low Temperature Circulator BCLT-203 Index Applications................04 Specifications................04 III. Working principle................05 Guidelines for use and operation..........06 Maintenance................14 www.biolabscientific.com... - Page 3 Low Temperature Circulator BCLT-203 Warning: The instrument can not provide the designed protection for operators who do not follow the right procedures and requirements given by the manufacturer. Warning: All solutions must be handled with care according to the lab’s safety regulation.
-
Page 4: Applications
Low Temperature Circulator BCLT-203 Applications BCLT 200 series Low Temperature Circulator, thanks to its features such as highly precise and stable temperature control and fast heating and cooling, has been widely used in precise and thermostatic control equipment in sectors such as petroleum, physics, chemical industry, pharmacy, and environmental protection. -
Page 5: Working Principle
Low Temperature Circulator BCLT-203 Working Principle 1. Principle block diagram 2. Principle The circulator displays with a high-brightness LCD screen and measures temperature with a high-precision sensor. It feedbacks the measured temperature to CPU in a real-time manner, and then the fuzzy PID calculates a set of... -
Page 6: Guidelines For Use And Operation
Low Temperature Circulator BCLT-203 Guidelines for use and operation 1. Component parts Front view 1. Heating circulation control 2. Bath cover 3. Refrigeration switch 4. Handle 5. Drain valve 6. Radiator grid www.biolabscientific.com... - Page 7 Low Temperature Circulator BCLT-203 Rear view 1. Data output 2. Overcurrent breaker 3. Heating circulation control power supply 4. Water outlet 5. Water inlet 6. Handle 7. Fuse 8. Power outlet 9. Radiation window 10. Power outlet www.biolabscientific.com...
- Page 8 Low Temperature Circulator BCLT-203 1. Display area 2. Function button 3. Decrease button 4. Increase button 5. Return button 6. Power switch 2. Instructions for use Wire the power cord as in the rear view. When the external circulation is used for achieving constant temperature, use a water tube to connect the instrument and the equipment requiring constant temperature.
- Page 9 Low Temperature Circulator BCLT-203 3. Brief introductions to control operation (1)Press the function button to display parameter SP, and press the button again to store the current value and display the next parameter. To return to the normal display interface, just press the return button...
- Page 10 Low Temperature Circulator BCLT-203 Correcting temperature. When detected temperature deviates from -10.0 10.0℃ 0.0℃ the standard temperature, it allows you to increase or decrease the error value on this basis. Water level alarm and delay. When the water level is lower than...
- Page 11 Low Temperature Circulator BCLT-203 3. The circulator is used for both external circulation and internal circulation. If it is used for internal circulation, plugs of water inlet and outlet must be tightened. If it is used for external circulation, remove the plugs, connect the water inlet and outlet with a tube, and fix a fastening throat hoop to ensure the tube ends are connected securely.
- Page 12 Low Temperature Circulator BCLT-203 The diagram below shows functions of the block when it is in different positions: A —100% internal circulation B—100% internal circulation C—60% internal circulation and 40% external circulation D—20% internal circulation and 80% external circulation Fig. X 5.
- Page 13 Low Temperature Circulator BCLT-203 6. Troubleshooting Commonly-occurring Possible cause Solutions trouble No power in the external Connect with an power outlet external power supply. Check the circuit, and Overcurrent protection replace the short circuit overcurrent No temperature rise protector Change the power Power switch short circuit switch.
-
Page 14: Maintenance
Low Temperature Circulator BCLT-203 Maintenance This instrument is a precision measurement instrument. In order to ensure its accuracy and prevent possible damage during use, we recommend you maintenance of the instrument as follows: (1) Water tank should be placed on a fixed platform, and the power supply connected with the instrument should be 220V. - Page 15 Low Temperature Circulator BCLT-203 BIOLAB SCIENTIFIC LTD. 3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8 Canada Email: contact@biolabscientific.com Tel: +1 707 533 1445 Website: www.biolabscientific.com www.biolabscientific.com...
