SCIFIT PRO1 Series Owner's Manual page 10

4. Assembly and Relocation
PRO1-PRO1 Sport Assembly
Short assembly steps will be required when the machine arrives at the customer location. The following steps will show
these steps for both PRO1 and PRO1 Sport machine models.
Tools Required:
• Torque wrench set 48 ft-lbs (65 Nm)• 12" (30.5 cm) Ratchet extension
Parts Required:
• Washer, Flat 3/8" (Qty. 4)

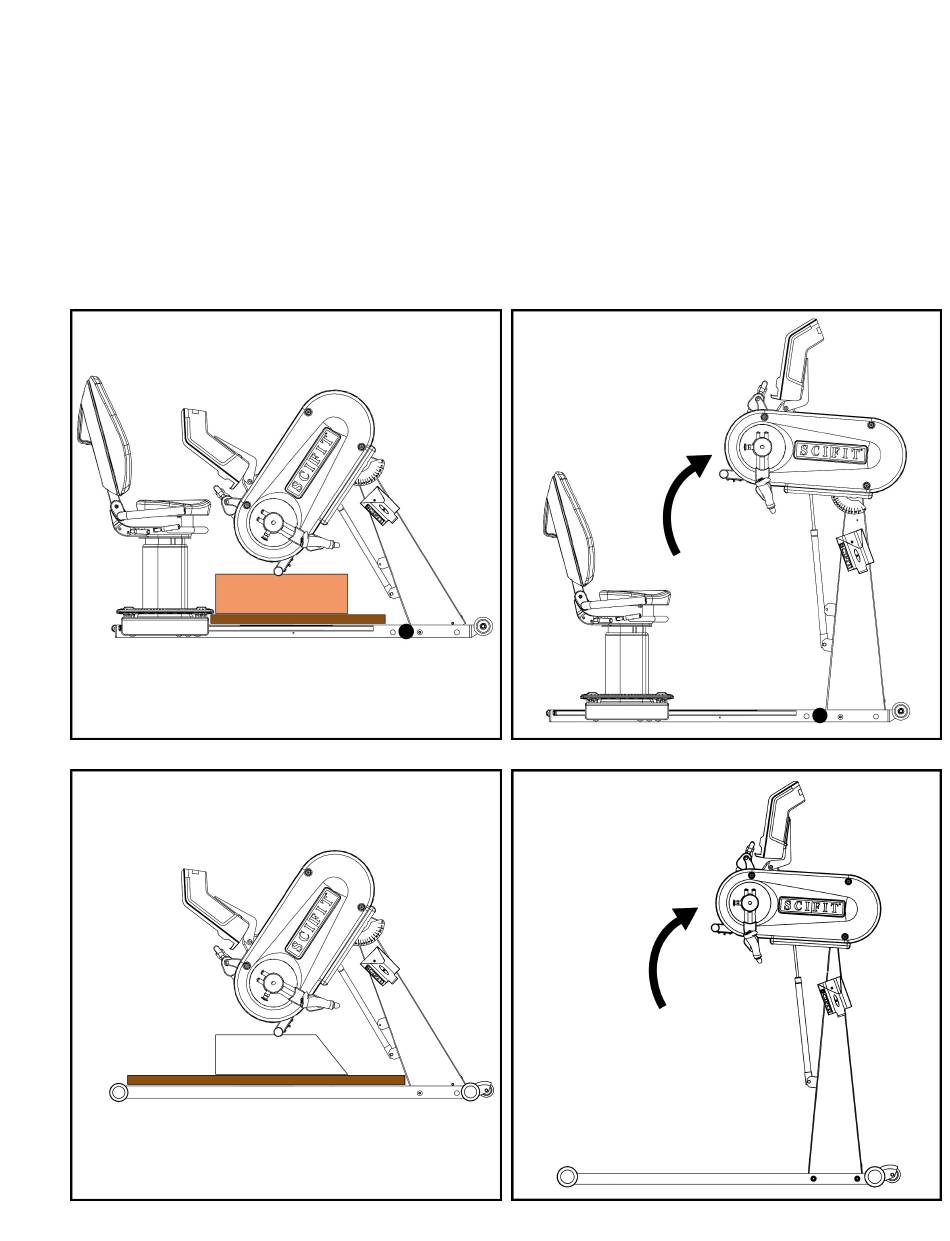

1. Stand up the main body and mast of the PRO1 or PRO1 Sport, then remove any packaging that was on the base
frame.
• Washer, Split 3/8" (Qty. 4)
Page 8 of 26
• 5/16" (8 mm) Allen hex bit
• Screw, 3/8"-16 x 1" Socket (Qty. 4)
