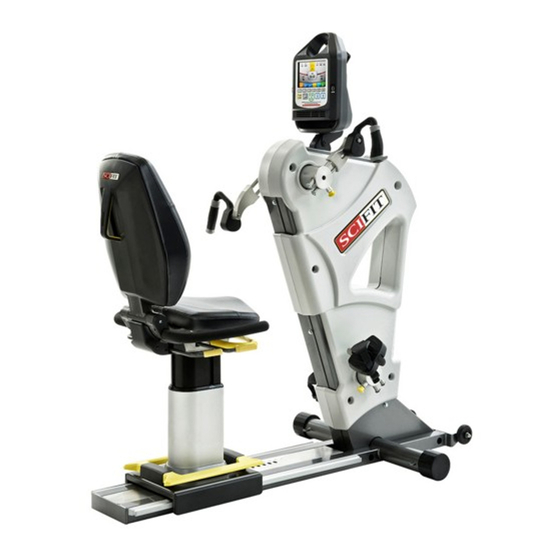

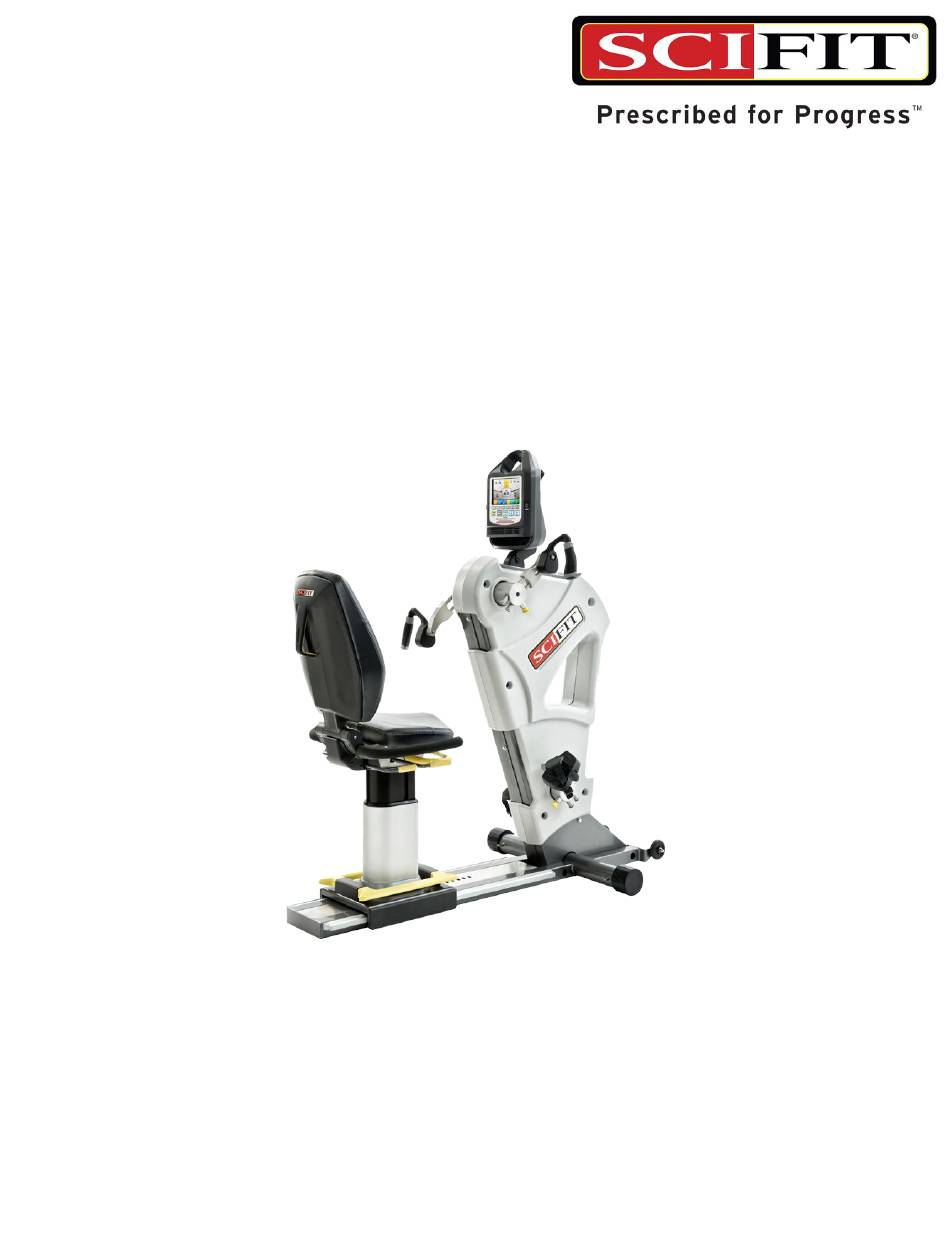

- Page 1 PRO2 Machine User's Manual Total Body Exerciser PRO2xxx-INT, PRO2xxx-EC, PRO2xxx-JP, PRO2xxx-BR, PRO2xxx-SA, PRO2xxxINT(USA), PRO2xxx-DOMHUR, PRO2xxx-INTHUR, PRO2xxx-JPHUR, PRO2xxx-ERGLN, PRO2xxx- ISBU...
- Page 3 United Kingdom All Other EMEA Countries and Distributor Business EMEA* North America Life Fitness UK LTD Bijdorpplein 25-31 SCIFIT Queen Adelaide 2992 LB Barendrecht Ely, Cambs, CB7 4UB 5151 S. 110th E. Avenue THE NETHERLANDS Telephone: General Office (+44) 1353.666017 Tulsa, OK, 74146 U.S.A...
- Page 4 User and Service Documents Link https://lfworld.lifefitness.com...
-
Page 5: Table Of Contents
© Copyright 2019, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation. -
Page 6: Introduction
If warnings are missing or damaged, please contact customer service immediately for replacement warning labels. Warning labels are shipped with every product and should be installed before the product is used. SCIFIT is not responsible for missing or damaged warning labels. - Page 7 • This machine is not intended for use by persons with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
-
Page 8: Service And Technical Data
Service and Technical Data Maintenance Component Action When Upholstery Clean With a Damp Cloth Daily Base Roller Track Clean With a Damp Cloth Weekly Battery Refer to “Rotary CNSL Prog. Manual” For battery Check Instruct. Monthly Chain General Purpose Chain Lubricant Every 6 Mo. -
Page 9: Adjustments
Adjustments Machine Relocation WARNING: Two People Required WARNING: Failure to place the machine on a stable and level surface may result in injury to yourself and others. ATTENTION: Adjust RH and LH end caps to level the machine Components: Seat assembly (Premium shown) RH &... -
Page 10: Machine Power-Up
Machine Power-Up Turn either upper or lower cranks Connect the wall pack to the machine Console Adjustment Page 8 of 20... -
Page 11: Upper Crank Adjustment
Upper Crank Adjustment WARNING: Ensure that the adjustment knob is fully engaged into the hole of the crank rod when adjusting. 8" (20cm) Radius, 1st hole position 7" (18 cm) Radius, 2nd hole position 6" (15 cm) Radius, 3rd hole position Page 9 of 20... -
Page 12: Lower Crank Adjustment
Lower Crank Adjustment WARNING: Ensure that the adjustment knob is fully engaged into the hole of the crank rod when adjusting. 6.85" (17 cm) Radius, 1st hole position 5.60" (14 cm) Radius, 2nd hole position 4.35" (11 cm) Radius, 3rd hole position Page 10 of 20... -
Page 13: Rowing Motion Set-Up
Rowing motion Set-Up Components: Hardware: Right Upper Crank Upper RH Hub Screw, 1/4-20 x 1/2”, BSCS Washer, Flat, .25 ID x .84 OD Tools Required: • Supplied 5/32” (4mm) Allen Hex Wrench Rowing option set-up view Page 11 of 20... - Page 14 Turn crank in same direction as the left crank WARNING: The rowing function does not work in conjunction with the movement of the lower foot pedals on the PRO2. DO NOT PLACE YOUR FEET ON THE LOWER CRANKS! Page 12 of 20...
-
Page 15: Biomechanical Positioning
Biomechanical Positioning Machine Entry 1. Choose one of the following to position seat for entry. • Press and hold the yellow foot lever located on either side of the seat base (see Seat System manual), then move the seat back to allow sufficient entry space and release the foot lever. -
Page 16: Specifications
Specifications Specifications - PRO2 Max User Weight Standard Seat - 500 lbs (227 kg) Bariatric Seat- 600 lbs (272 kg) Premium Seat - 450 lbs (204 kg) Power Self generating w/auto recharge battery back-up. Standard 18V AC Adapter Resistance System Electromagnetic Self Generating Bi-Directional Resistance Programs Quick Start, Manual, Constant Workout, ISO-Strength, Hills, Heart Rate, Fit-Quik, Random, Stress Test,... - Page 17 Safety Perimeter 40” (1m) 40” (1m) 40” (1m) 40” (1m) Page 15 of 20...
-
Page 18: Warranty
Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, SCIFIT, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year. -
Page 19: How To Get Replacement Parts And Service
Warranty coverages and terms may differ outside the United States. Please contact the SCIFIT office servicing your country (contact information found at the front of this manual) or visit the applicable local SCIFIT website to receive the specific warranty information for your country. - Page 20 NOTES Page 18 of 20...
- Page 21 NOTES Page 19 of 20...
- Page 22 A6780B 2019 www.scifit.com...
