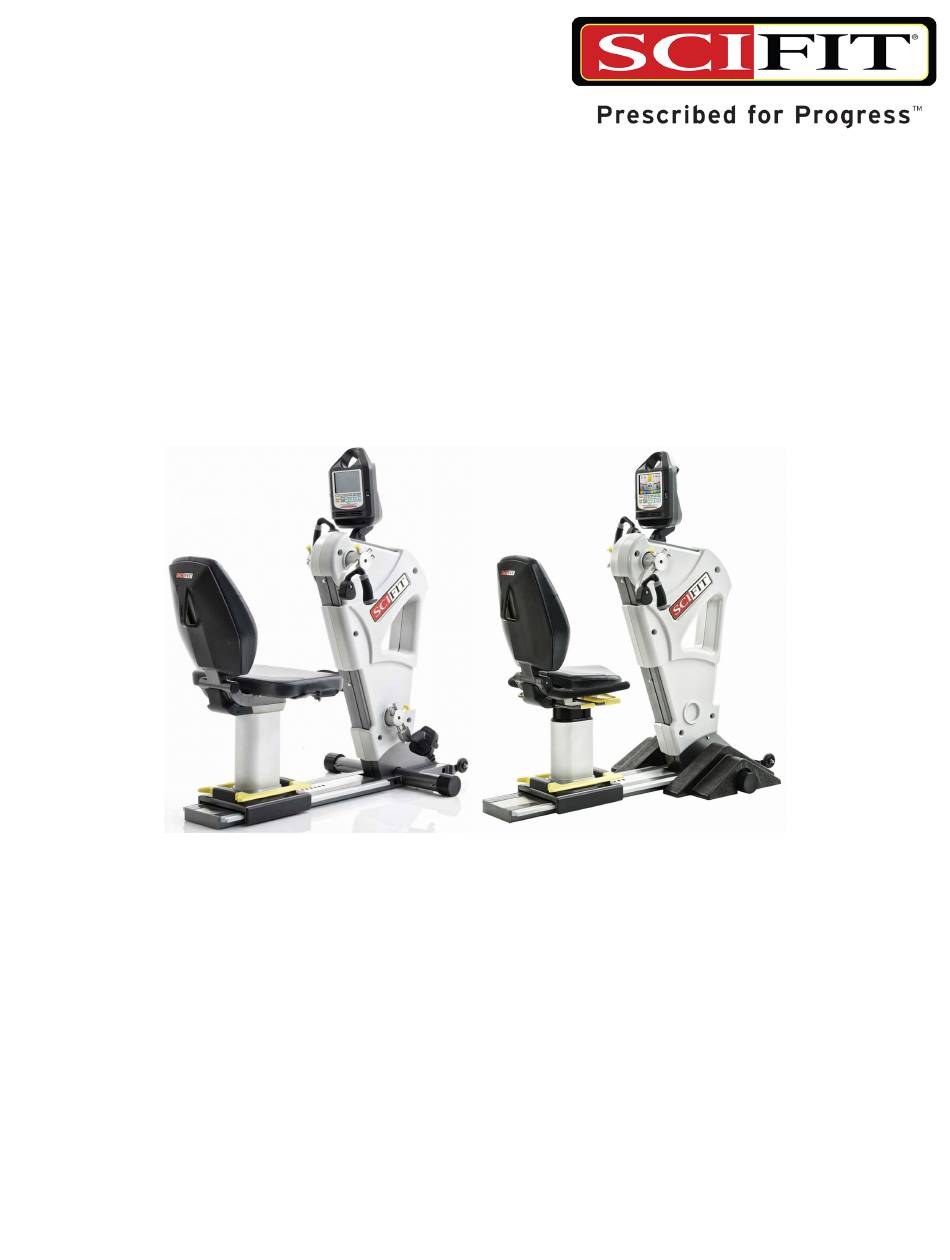

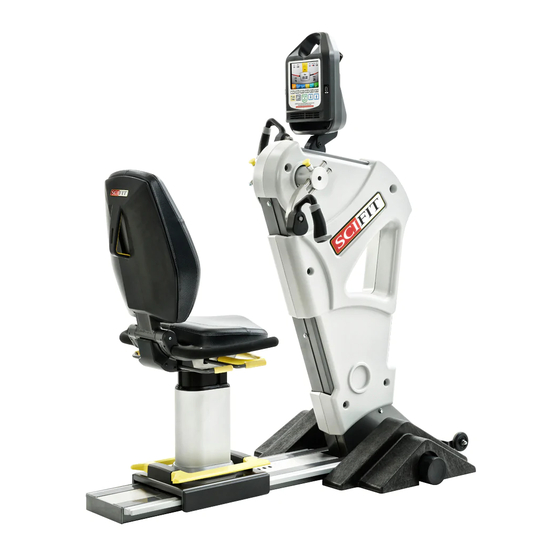

PRO2/PRO1000
Machine Assembly Manual
Total Body/Upper Body Exercisers
All PRO2 models (except for PRO2 Sport) and All PRO1000 models
