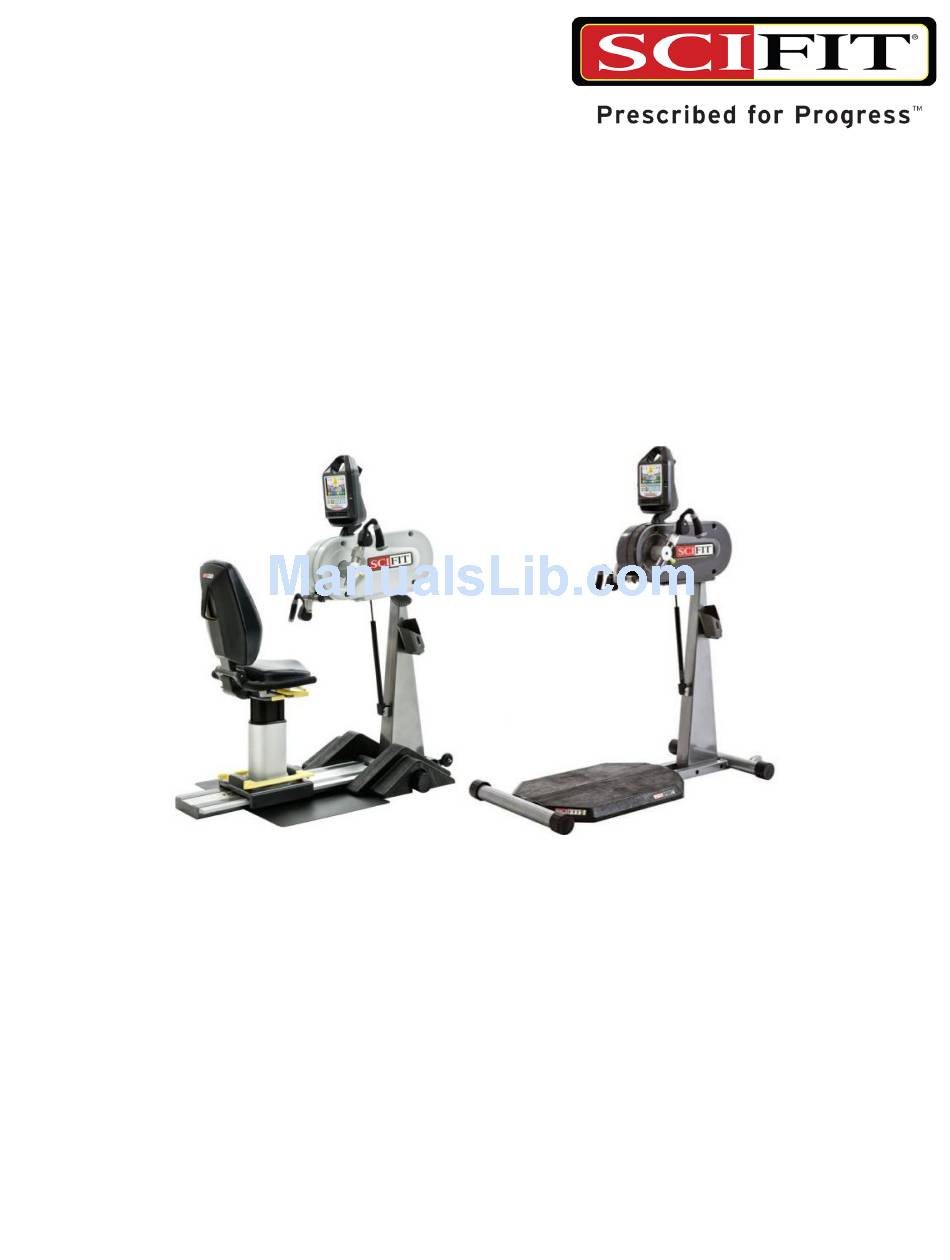

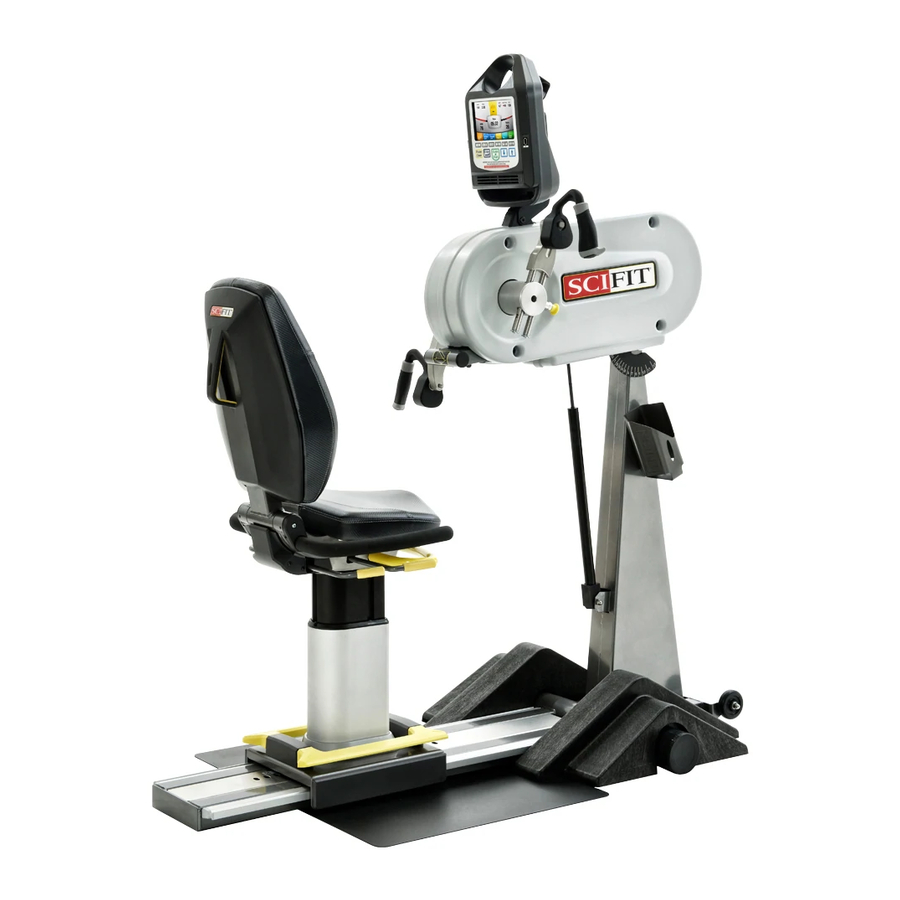

- Page 1 PRO1/PRO1 Sport Machine Assembly Manual Upper Body Exerciser PRO1XX-DOMHUR, PRO1XX-ERGLN, PRO1XX-INT, PRO1XX-EC, PRO1XX-XXL, PRO1XX-INT(USA), PRO1XX-BR, PRO1XX-JPHUR, PRO1XX-INTHUR, PRO1XX-ISBU, PRO1XX-JP, PRO1XXJPHUR...
- Page 3 AMERICAS Life Fitness UK LTD North America All Other EMEA Countries and Distributor Business EMEA* Queen Adelaide SCIFIT Bijdorpplein 25-31 Ely, Cambs, CB7 4UB 5151 S. 110th E. Avenue 2992 LB Barendrecht Telephone: General Office (+44) Tulsa, OK, 74146 U.S.A THE NETHERLANDS 1353.666017...
- Page 4 Manuali di funzionamento e altre informazioni sui prodotti disponibili su http://www.scifit.com/resources/specifications-manuals/ Instrukcje obsługi i inne informacje o produktach dostępne na stronie http://www.scifit.com/resources/specifications-manuals/ Manuais de Operação e Informações sobre outros produtos disponíveis em http://www.scifit.com/resources/specifications-manuals/ http://www.scifit.com/resources/specifications-manuals/ Kullanım Kılavuzları ve Diğer Ürün Bilgileri http://www.scifit.com/resources/specifications-manuals/’da bulunmaktadır Page 4 of 25...
-
Page 5: Table Of Contents
Authorized..................24 Effects of State Laws.......................24 Our Pledge To You........................24 © Copyright 2018, SCIFIT, a division of Brunswick Corporation. All Rights Reserved. 5151 S. 110th E. Avenue, Tulsa, OK 74146 • 1-800-745-1373 www.scifit.com • A7250A • 2018 Page 5 of 25... -
Page 6: Introduction
If warnings are missing or damaged, please contact customer service immediately for replacement warning labels. Warning labels are shipped with every product and should be installed before the product is used. SCIFIT is not responsible for missing or damaged warning labels. - Page 7 • This machine is intended for indoor use only. Do not place in direct sunlight, high humidity or where water is present (i.e. pool or spa areas). • This machine is not intended for use by persons with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
-
Page 8: Assembly
Assembly Attach Wheelchair Platforms (PRO1 Seated Models Only) Tools Required: • 1/2 (13mm) Wrench Component Base Frame Wheelchair Platform Qty. 1 Qty. 2 Turn over the base frame and LOOSEN "DO NOT REMOVE" the 2nd and 3rd mounting bolts. Page 8 of 25... - Page 9 Align the 2nd and 4th U-shaped cut-outs of the 1st platform with the bolts, then slide it between the washer and frame. Tighten the bolts, then repeat steps 2, 3 and 4 for the 2nd platform, then turn over the frame with attached platforms. Page 9 of 25...
-
Page 10: Attach Main Body To Base Frame
Attach Main Body To Base Frame ATTENTION: The main body and base frame assembly should be done without the seat assembly mounted on the unit for easier handling, bodily injury prevention and damage to the frame. This section only explains the assembly of the main body and base frame. - Page 11 Page 11 of 25...
-
Page 12: Attach Console
Attach Console Componenet Hardware Intelli-Fit Console Screw, M5 x 12mm, Phillips, Black Zinc Qty. 1 Qty. 4 Tools Required: • Phillips Screw Driver Standard PRO1 Models: Page 12 of 25... - Page 13 PRO1 HUR/ERGO Models: NOTE: The HUR/ERGO cables from the machine and the console have a decal with the word "COMM" attached and should be connect together. Secure the console to the console mounting plate with 4 screws, using a phillips screw driver.
-
Page 14: Attach Upper Cranks
Attach Upper Cranks Tools Required: • 5/32" (4mm) Allen Hex Wrench (Supplied with machine) Component Hardware Screw, 1/4"-20 x 1/2", Socket Right Crank Left Crank Washer, Flat, .25 ID x .835 OD Button HD Qty. 1 Qty. 1 Qty. 4 Qty. - Page 15 Page 15 of 25...
-
Page 16: Attach Foot Rests (Pro1 Seated Models Only)
Attach Foot Rests (PRO1 Seated Models Only) Component Molded Foot Rest Qty. 2 NOTE: The word "SCIFIT" should be facing outward. Page 16 of 25... -
Page 17: Attach Platforms (Pro1 Sport)
Attach Platforms (PRO1 Sport) Component PRO1 Sport Platform Qty. 2 Page 17 of 25... -
Page 18: Seat Mounting (Pro1 Seated)
Seat Mounting (PRO1 Seated) Page 18 of 25... -
Page 19: Machine Relocation Pro1 Seated And Pro1 Sport
Machine Relocation PRO1 Seated and PRO1 Sport PRO1 SEATED Page 19 of 25... - Page 20 PRO1 SPORT Page 20 of 25...
-
Page 21: Specifications
Specifications Specifications PRO1/PRO1 Sport Weight PRO1 Seated: 248 lbs. (112 Kg.), PRO1 Sport: 178 lbs (81 Kg) 450 lbs. (204 Kg) Premium, 500 lbs (227 Kg) Standard, 600 lbs. Max User Weight (272 kg.) Bariatric Self generating w/auto recharge battery back-up. Standard low Power voltage AC adapter wall pack. - Page 22 PRO1 Sport Intelli-Fit Console Main Body Angle Positioning Lever Adjustable Crank Arms Molded Platforms Leveling Endcaps Transport Wheels Water Bottle Holder PRO1 Sport Safety perimeter. 40” (1m) 40” (1m) 40” (1m) 40” (1m) Page 22 of 25...
-
Page 23: Warranty
Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, SCIFIT, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year. -
Page 24: How To Get Replacement Parts And Service
Warranty coverages and terms may differ outside the United States. Please contact the SCIFIT office servicing your country (contact information found at the front of this manual) or visit the applicable local SCIFIT website to receive the specific warranty information for your country. - Page 25 A7250A 2018 www.scifit.com...
