SCIFIT PRO1000 Owner's Manual
Upper body exerciser
Hide thumbs
Also See for PRO1000:
- User manual (20 pages) ,
- Service manual (19 pages) ,
- Owner's operation manual (48 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for SCIFIT PRO1000
Summary of Contents for SCIFIT PRO1000

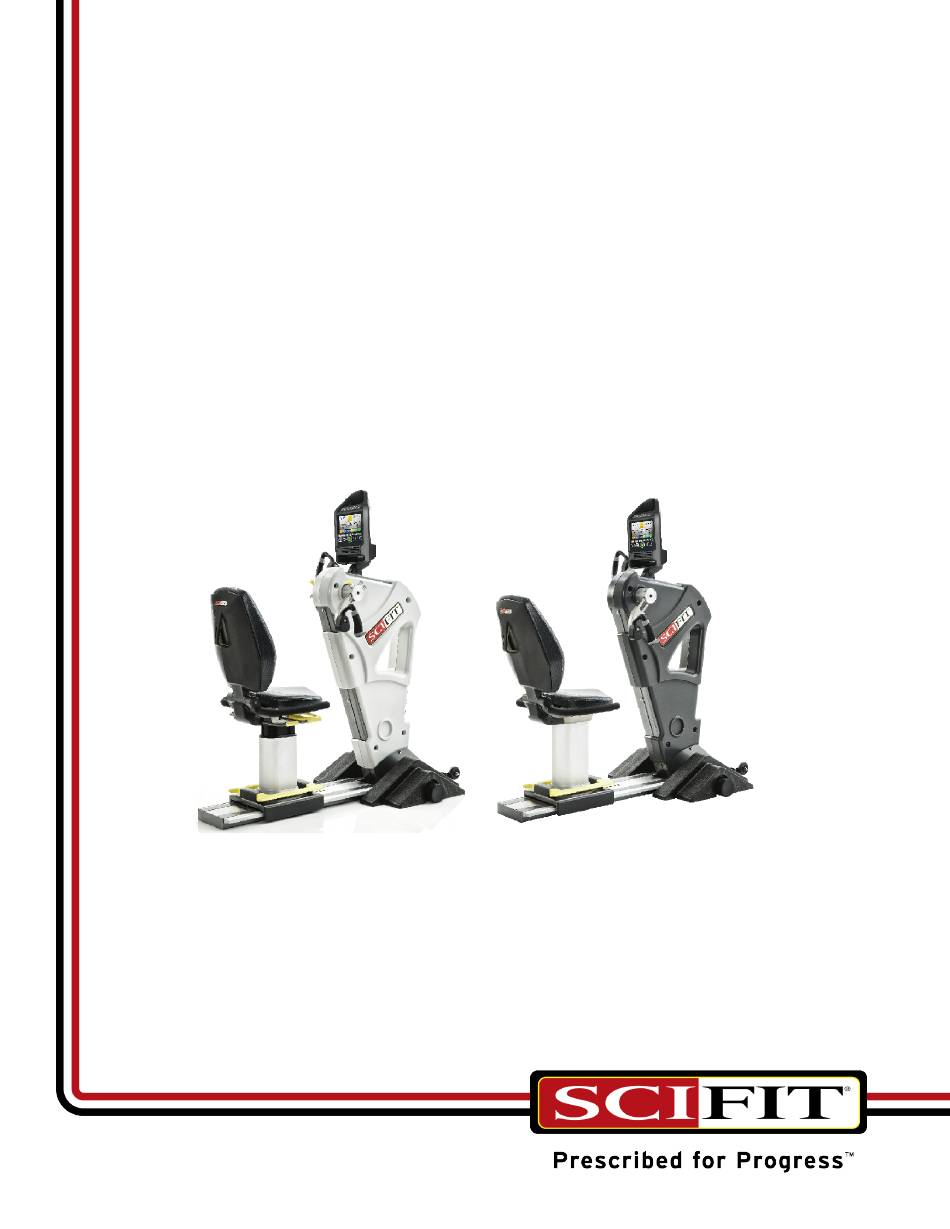

- Page 1 Upper Body Exerciser Machine Owner's Manual ALL PRO1000 MODELS A6965 REV CB...
-
Page 3: Corporate Headquarters
EUROPE, MIDDLE EAST, and AFRICA (EMEA) All Other EMEA Countries and Distributor Business EMEA* North America Belgium, Netherlands, and Luxemburg Life Fitness Atlantic BV SCIFIT Life Fitness Atlantic BV Bijdorpplein 25-31 Columbia Centre III Bijdorpplein 25-31 2992 LB Barendrecht 9525 Bryn Mawr Avenue... -
Page 4: User And Service Documents Link
User and Service Documents Link https://lfn.fit/KnowledgeBase https://lfn.fit/SupportDocuments Additional information is available online using the links above. أ علاه إل ر إبط باستخدإم إ لإ ن تر نت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link. -
Page 5: Table Of Contents
© Copyright 2024, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Disclaimer: Images and specifications are current as of the date of publication and are subject to change. -
Page 6: Introduction
• If warnings are missing or damaged, please contact customer service immediately for replacement warning labels. Warning labels are shipped with every product and should be installed before the product is used. SCIFIT is not responsible for missing or damaged warning labels. - Page 7 • Do not allow other people to interfere in any way with the user or equipment during a workout. • When the product is not in use, SCIFIT recommends unplugging the product. Disconnect from the electrical outlet when not in use, and before putting on or taking off parts.
-
Page 8: Product Overview

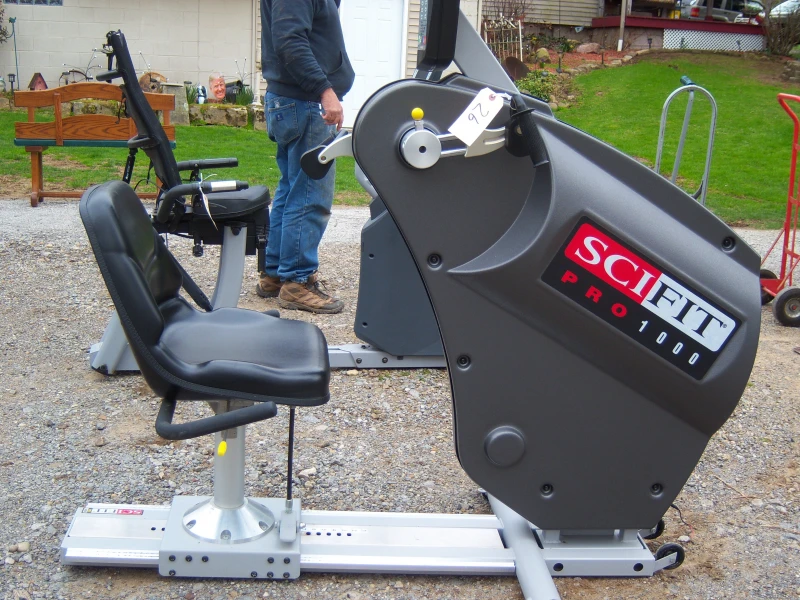

2. Product Overview Product Overview PRO1000 GEN4 Console Ergonomic Seat Assembly (Premium Seat Shown) Adjustable Upper Cranks with Ergonomic Grips Forward/Backward Seat Adjustment Foot Lever Leveling Endcaps Transport wheels Page 6 of 25... -
Page 9: Service And Technical Data
3. Service and Technical Data Maintenance Component Action When Upholstery Clean With a Damp Cloth Daily Base Roller Track Clean With a Damp Cloth Weekly Battery Refer to “Rotary CNSL Prog. Manual” For battery Check Instruction. Monthly Chain General Purpose Chain Lubricant Every 6 months ATTENTION: Contact your local waste management agency for specific requirements concerning recycling and disposal locations of batteries. -
Page 10: Assembly And Relocation
• Washer, Flat 3/8" (Qty. 6) • Washer, Split 3/8" (Qty. 6) • Screw, 3/8"-16 x 1" Socket (Qty. 6) 1. Stand up the main body of the PRO1000, then remove any packaging that was on the base frame. Page 8 of 25... - Page 11 2. Starting on the right side, take the 12" center punch and insert it into the second hole from the front (nearest to the round tube). 3. Take the 12" extension with 5/16" hex bit, screw, split washer and flat washer, then loosely insert the hardware into the front hole of the base frame closest to the transport wheels as shown.
- Page 12 4. Remove the center punch , then take the 12" extension with 5/16" hex bit, screw, split washer and flat washer, then loosely insert the hardware into the hole where the center punch was located. 5. Go to the left side, then take the 12" center punch and insert it into the second hole from the front (nearest to the round tube).
- Page 13 6. Take the 12" extension with 5/16" hex bit, screw, split washer and flat washer, then loosely insert the hardware into the front hole of the base frame closest to the transport wheels as shown. 7. Remove the center punch , then take the 12" extension with 5/16" hex bit, screw, split washer and flat washer, then loosely insert the hardware into the hole where the center punch was located.
- Page 14 8. Starting on the left side take the torque wrench set at 48 ft-lbs (65 Nm), then attach the 12" extension and 5/16" hex bit. Tighten the main body to base frame hardware in the three holes. 9. Repeat step 8 on the right side. ASSEMBLY COMPLETE Page 12 of 25...
-
Page 15: Pro1000 Relocate
PRO1000 Relocate 1. Remove the seat by pressing down on either left or right yellow foot levers, then slide the seat assembly off the base frame and place to the side. 2. Grab the lift handle at the back of the base frame and lift until the front transport wheels touch the floor, then move the machine to the preferred location. - Page 16 3. Once at the location, if needed adjust the left and right end caps to make the machine level with the floor. 4. Remount the seat assembly by pressing either the left or right yellow foot levers, then slide the seat assembly onto the base frame and release the foot lever at the preferred position.
-
Page 17: Adjustments
5. Adjustments Machine Power-Up Option 1: Turn the upper cranks Option 2: Connect the wall pack to the machine Page 15 of 25... -
Page 18: Low Starting Resistance Information
In facilities where the lowest possible starting resistance is desired, please use the enclosed, UL Approved, 18 volt adapter (#P4861) to plug your SCIFIT product into an electrical outlet. While all SCIFIT products provide low starting resistance, the use of the 18 volt adapter makes a noticeable difference in lowering the starting resistance. -
Page 19: Console Adjustment
Console Adjustment Page 17 of 25... -
Page 20: Upper Crank Adjustment
Upper Crank Adjustment NOTE: The images shown below are for the PRO1000 adjustments. PRO1000 Sport adjustments will require the 5/8-11 x 1/2 set screw (where the yellow adjustment knob would be located) to be removed, then placed in the new hole selection of the crank rod. -
Page 21: Rowing Motion
Rowing Motion Customers may use a feature of the PRO1000 called the "Rowing Motion". This will require the right crank and handle to be repositioned in the same direction as the left. The following steps with show how this is done. - Page 22 3. Turn and position the crank/handle in the same direction as the left with the curved portion of the crank facing the operator, then pull the adjustment knob outward and slide the crank rods into the holes of the hub, releasing the knob into any of the crank rod holes.
- Page 23 5. Adjust the left and right cranks to the same holes positions according to your preference before starting the workout. Page 21 of 25...
-
Page 24: Biomechanical Positioning
6. Biomechanical Positioning Machine Entry 1. Choose one of the following to position seat for entry. • Press and hold the yellow foot lever located on either side of the seat base (see Seat System manual), then move the seat back to allow sufficient entry space and release the foot lever. You may grab the handles on either side of the console to stabilize yourself and sit on the seat. -
Page 25: Specifications
7. Specifications Specifications - PRO1000 Max User Weight Standard Seat - 500 lbs (227 kg) Bariatric Seat- 600 lbs (272 kg) Premium Seat - 450 lbs (204 Power Self generating w/auto recharge battery back-up. Standard 18V AC Adapter Resistance System... -
Page 26: Warranty
SCIFIT representative. What You Must Do Register your Product online at http://www.scifit.com/warranty-registration-2/. Retain proof of purchase; use, operate and maintain the Product as specified in the Manual; notify Customer Support Services of any defect within 10 days after discovery of the defect; if instructed, return any defective part for replacement or, if necessary, the entire Product for repair. -
Page 27: Changes In Warranty Not Authorized
servicing your country (contact information found at the front of this manual) or visit the applicable local Life Fitness website to receive the specific warranty information for your country. Changes in Warranty Not Authorized No one is authorized to change, modify or extend the terms of this limited warranty. Effects of State Laws This warranty gives you specific legal rights, and you may have other rights which vary from state to state and country by country.
