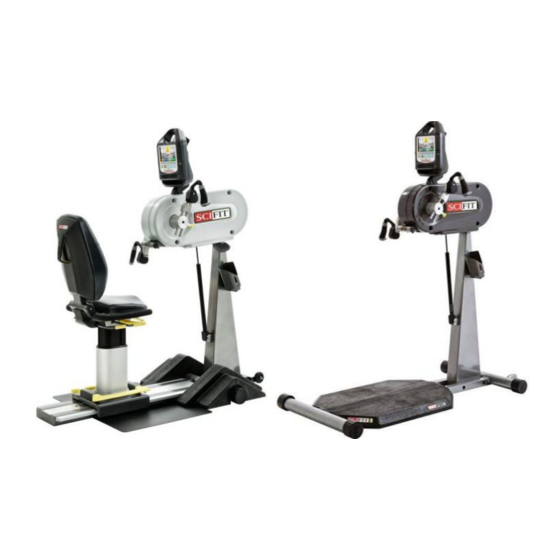

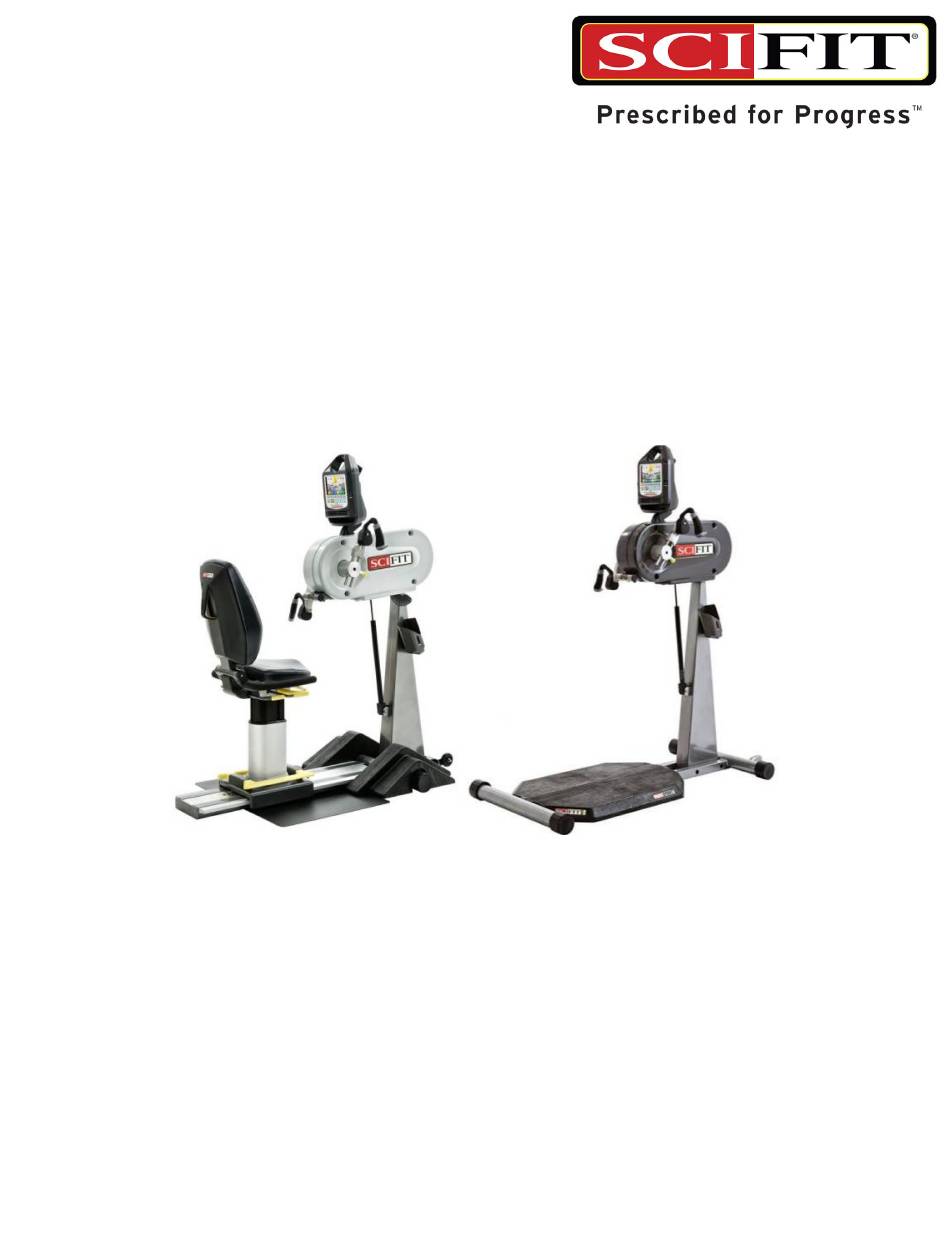

- Page 1 PRO1/PRO1 SPORT Machine User's Manual Upper Body Exerciser PRO1XX-DOMHUR, PRO1XX-ERGLN, PRO1XX-INT, PRO1XX-EC, PRO1XX-XXL, PRO1XX-INT(USA), PRO1XX-BR, PRO1XX-INTHUR, PRO1XX-JPHUR, PRO1XX-ISBU, PRO1XX-JP...
- Page 3 United Kingdom All Other EMEA Countries and Distributor Business EMEA* North America Life Fitness UK LTD Bijdorpplein 25-31 SCIFIT Queen Adelaide 2992 LB Barendrecht Ely, Cambs, CB7 4UB 5151 S. 110th E. Avenue THE NETHERLANDS Telephone: General Office (+44) 1353.666017 Tulsa, OK, 74146 U.S.A...
- Page 4 User and Service Documents Link https://lfworld.lifefitness.com...
-
Page 5: Table Of Contents
© Copyright 2019, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation. -
Page 6: Introduction
If warnings are missing or damaged, please contact customer service immediately for replacement warning labels. Warning labels are shipped with every product and should be installed before the product is used. SCIFIT is not responsible for missing or damaged warning labels. - Page 7 • This machine is not intended for use by persons with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
-
Page 8: Service And Technical Data
Service and Technical Data Maintenance Component Action When Upholstery Clean With a Damp Cloth Daily Base Roller Track Clean With a Damp Cloth Weekly Battery Refer to “Rotary CNSL Prog. Manual” For battery Check Instruct. Monthly Molded Platform and Foot Clean With a Damp Cloth Weekly Rests... -
Page 9: Adjustments
Adjustments Machine Power Up NOTE: Turn the crank handles in either direction or plug the AC wall pack into a wall outlet, then to the machine. Console Adjustment Page 7 of 20... -
Page 10: Upper Crank Adjustment
Upper Crank Adjustment NOTE: Ensure that the adjustment knob is fully engaged into the hole of the crank rod when adjusting. 9" (23 cm) Radius, 1st hole position 8" (20 cm) Radius, 2nd hole position Page 8 of 20... -
Page 11: Main Body Adjustment
7" (18 cm) Radius, 3rd hole position 6" (15 cm) Radius, 4th hole position Main Body Adjustment NOTE: Pull the angle adjustment lever forward and hold, then move the main body up or down and release at the preferred angle. Page 9 of 20... -
Page 12: Rowing Motion
Rowing Motion Components Hardware Right Upper Crank Screw, 1/4-20 X 1/2", BSCS Washer, Flat, .25 ID x .84 OD Qty. 1 Qty. 2 Qty. 2 Tools Required: • 5/32" (4mm) Allen Hex Wrench Rowing Option Set-Up Overview Page 10 of 20... - Page 13 NOTE: On step 3 turn the right crank in the same direction as the left (curved part of crank facing the user). Page 11 of 20...
-
Page 14: Machine Relocation
Machine Relocation WARNING: Two people required. Failure to place the machine on a stable and level surface may result in injury to yourself and others. NOTE: Rotate the right and left end caps to level machine. Page 12 of 20... -
Page 15: Biomechanical Positioning
Biomechanical Positioning Machine Entry (PRO1 Seated) 1. Choose one of the following to position seat for entry. • Press and hold the yellow foot lever located on either side of the seat base (see Seat System manual), then move the seat back to allow sufficient entry space and release the foot lever, then sit on the seat assembly. -
Page 16: Specifications
Specifications Specifications PRO1/PRO1 Sport Weight PRO1 Seated: 248 lbs. (112 Kg.), PRO1 Sport: 178 lbs (81 Kg) Max User Weight 450 lbs. (204 Kg) Premium, 500 lbs (227 Kg) Standard, 600 lbs. (272 kg.) Bariatric Power Self generating w/auto recharge battery back-up. Standard low voltage AC adapter wall pack. - Page 17 PRO1 Sport Intelli-Fit Console Main Body Angle Positioning Lever Adjustable Crank Arms Molded Platforms Leveling Endcaps Transport Wheels Water Bottle Holder PRO1 Sport Safety perimeter. 40” (1m) 40” (1m) 40” (1m) 40” (1m) Page 15 of 20...
-
Page 18: Warranty
Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, SCIFIT, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year. -
Page 19: How To Get Replacement Parts And Service
Warranty coverages and terms may differ outside the United States. Please contact the SCIFIT office servicing your country (contact information found at the front of this manual) or visit the applicable local SCIFIT website to receive the specific warranty information for your country. - Page 20 NOTES Page 18 of 20...
- Page 21 NOTES Page 19 of 20...
- Page 22 A6568B 2019 www.scifit.com...
