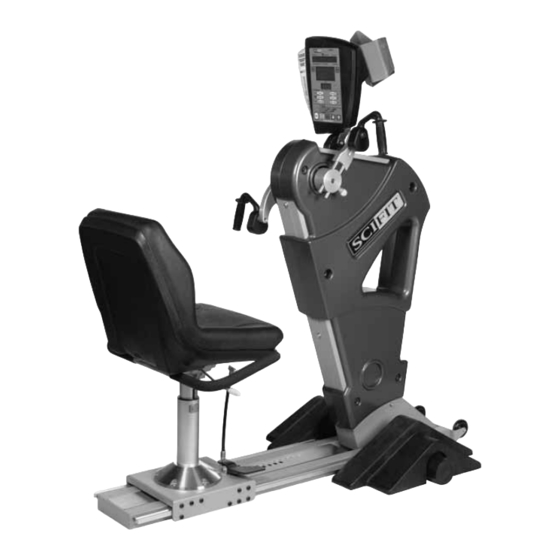

SCIFIT PRO2 Operation Manual
Total & upper body exerciser fit-key compatible
Hide thumbs
Also See for PRO2:
- Owner's operation manual (48 pages) ,
- User's operation manual (44 pages) ,
- Owner's manual (26 pages)
Related Manuals for SCIFIT PRO2
Summary of Contents for SCIFIT PRO2
- Page 1 Users’ Operations Manual PRO2 PRO1000 ® PRO2 Total Body Exerciser ® & PRO1000 Upper Body Exerciser Fit-Key Compatible ™ Before using this product, read this manual and follow all safety rules and operating instructions.
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION........1 INTRODUCTION . -
Page 3: Safety Information
Failure to obey a safety caution can result in injury to yourself and others. Always follow the safety precautions to reduce the risk of personal injury. Read all instructions before using your SCIFIT exercise machine. Save these instructions for future reference. -
Page 4: Introduction
INTRODUCTION Thank you for your purchase of the SCIFIT PRO2 Guidelines for Healthy Adults ® Total Body Excerciser or PRO1000 Upper Body The American College of Sports Medicine (ACSM) and Exerciser. We have incorporated the finest technology the American Heart Association (AHA) are continuously... -
Page 5: Specifications
SPECIFICATIONS PRO2 - 223 lbs. / 106 Kg..PRO1000 - 202 lbs. / 92 Kg. Weight ..Max User Weight . . 350 lbs. / 159 Kg. -
Page 6: Setup & Installation
SETUP & INSTALLATION Placement of Cardiovascular Machine To aid in the placement of equipment, two wheels are 40” / 1 Meter located on the rear of the unit. Movement of machine Safety Space should be done with two people. Carefully lift the front of unit until wheels are engaged on floor and position unit in desired location. -
Page 7: Assembly
ASSEMBLY Assembly Required Tools: For equipment that is shipped overseas, some assembly is Long Needle Point Center Punch required. Follow the steps below for assembly. 5/16” Allen Drive Socket 1/4” Allen Drive Socket Assemble Monocoque Frame to Base Frame With the aid of a second person, align bottom mounting threaded nutserts of Monocoque Frame with the Base Required Parts: Frame mounting holes. - Page 8 ASSEMBLY Assemble Hand Crank Handles to Hubs Assemble Foot Crank Pedals to Hubs(PRO2 Only) Identify Left and Right Hand Crank Handles Identify Left and Right Foot Crank Pedals Left Hand Right Hand Crank Handle Crank Handle Left Foot Right Foot...
-
Page 9: Assembly
ASSEMBLY Optional Wheelchair Platform (A) With a 1/2” socket, loosen the four back end bolts To install the optional wheelchair platform you must that secure the Stainless Steel Adjustment Track to base frame, just enough to slide the platform under first remove the seat assembly from the base. -
Page 10: Product Overview
& Control Console Fit-Key™ Water Bottle Receptacle Holder Adjustable Arm Crank Adjustable Swivel Seat Adjustable Foot Crank (PRO2 Only) Vertical Seat Transport Wheels Adjustment Lever Horizontal Seat Adjustment Rod Leveling Base Seat Adjustment Endcaps Wheelchair Foot Assist Tie Down Anchor... -
Page 11: Keypad Functions
KEYPAD FUNCTIONS Message Screen - The Message screen TIME - The Time readout displays the displays instructions on how to start and user input of work level desired in a pro- input program parameters. It also gives gram, also the amount of workout time feedback information particular to each desired. -
Page 12: Biomechanical Positioning
fitness or medical professional. If your Pro2 features a seat with height adjustment, you may adjust either the seat height or the control head to obtain the desired axis of rotation and body position. -
Page 13: Adjustments
It is important to know that the function can not work in conjunction with the lower body movement on the PRO2. Using your SCIFIT PRO2 or PRO1000 in this manner encourages abdominal and back involvement and can be used to in the treatment of specific medical... - Page 14 ADJUSTMENTS Swivel Seat Adjustments Horizontal Adjustment - The seat can be adjusted in 1” increments and is held in place with a spring loaded adjustment pin. The seat system is easily adjusted by pulling the seat adjustment rod up and sliding the seat assembly forward or backward.
-
Page 15: Accessories
They fix to the wheelchair and the PRO1, A plastic calf high boot which is open at the front and PRO1000 or PRO2 at the front cross tube. The footrest has Velcro straps to keep the legs in place. They come must be removed to expose the tie down anchors. - Page 16 ACCESSORIES Glove Assist (Optional) For individuals tha have limited strength with fingers and wrist, the Assist Glove is available. Fit hand into glove, wrap glove pad with fingers around crank handles and secure in place with velcro strips.
- Page 17 0.85 times your MHR. The your current heart rate during a workout. In addition, the PRO2 and PRO1000 includes a Heart Rate Control lower limit of your target zone is equal to 0.60 times program which requires use of the strap.
-
Page 18: Program Instructions
SCIFIT units are self-generated, an optional wall-pack transformer is available to keep the console lit even if you need to take a break from exercise without having to start over. - Page 19 • Press Start and Begin Exercising • Press Start and Begin Exercising Fit-Key™ System (Optional) All SCIFIT equipment is equipped with the Fit-Key™ system, but it is not required to operate the unit. Fit-Key™ is a program that records and stores work out data on a key that can be then transferred to a computer with a Fit-Key™...
-
Page 20: Maintenance & Service
MAINTENANCE & SERVICE Maintenance UNITED STATES CUSTOMER SERVICE The PRO2 and PRO1000 are virtually maintenance free. For assistance in the service of SCIFIT products; After training, always wipe down your SCIFIT exercise product. Perspiration that continuously settles on the phone : (800) 745-1373 or (918) 359-2040... -
Page 21: Warranty
(1) year from Freight and Shipping user purchase date as documented by warranty card SCIFIT is not responsible for the repair or replacement and if warranty card has not been returned by user of any unit or part damaged during transit or then date of shipment from the factory. - Page 22 Record Your Model Number:______________ Record Your Serial Number:______________ Record Your Date of Purchase:______________ Desarrollo en Sistemas Digitales y de Control, S.A. de C.V. Heriberto Fr€as Num. 203, Col. Narvarte, Deleg. Benito Ju•rez, M‚xico, D.F., 03020 Tel/Fax 5639-1451, 5638-1188 Email: tinemi@tinemi.com.mx www.tinemi.com.mx 15 of the FCC Rules.
