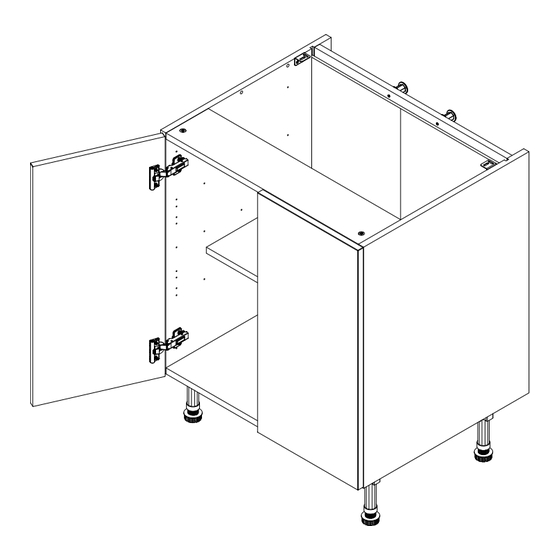

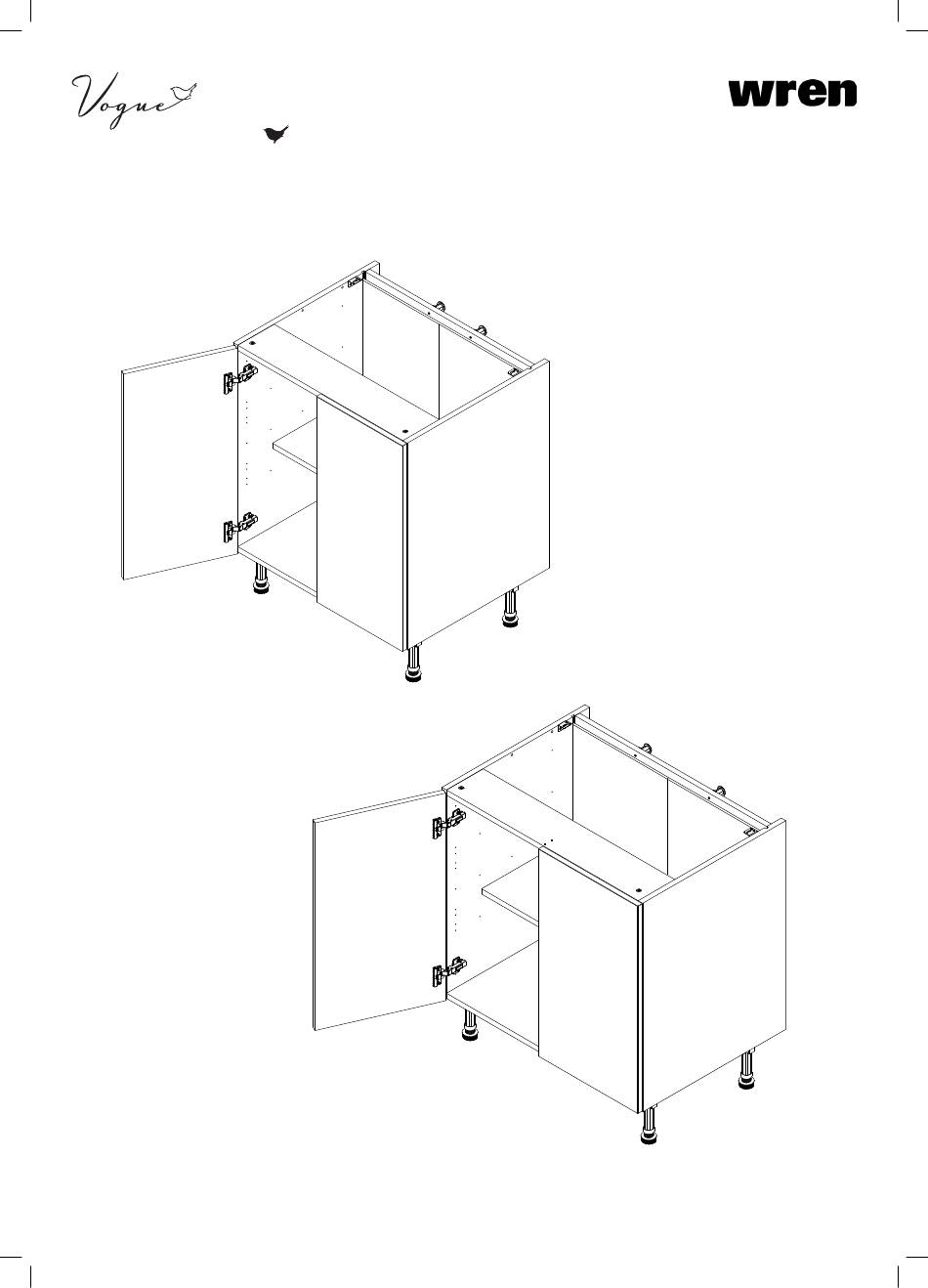

BASE UNIT 700-800, 2 Door Assembly Guide 700 Base Unit 800 Base Unit For Internal Use: FI.WR.INS.021_WKIN00103_BASE_700_800_2Door_Rev7...
Page 2
BASE UNIT 700 - 800, 2 Door Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED NOT to be used with CAM LOCK Page 2 For Internal Use: FI.WR.INS.021_WKIN00103_BASE_700_800_2Door_Rev7...
Page 3
BASE UNIT 700 - 800, 2 Door Assembly Guide Panel A Panel B Panel C Panel D Shelf Frontal x2 End Panel x1 Back Panel x1 Fixed Shelf x2 Rail x1 Loose Shelf x2 Front Panel (800 only folded) (Packed Separately) Page 3 For Internal Use: FI.WR.INS.021_WKIN00103_BASE_700_800_2Door_Rev7...
Page 4
BASE UNIT 700 - 800, 2 Door Assembly Guide (F) x12 (L) x32 (K) x8 (G) x8 (H) x8 Wooden 15mm 30mm Cam Lock Cam Dowel Dowel Screw Screw (Expanding) (M) x4 L Bracket Space Plug (Z) x4 (N) x2 Cover Cap Shelf Peg Metal Door Buffer...
Page 5
BASE UNIT 700 - 800, 2 Door Assembly Guide Step 1. Seat dowels (F) into holes in both end panels (A) as shown. Page 5 For Internal Use: FI.WR.INS.021_WKIN00103_BASE_700_800_2Door_Rev7...
Page 6
BASE UNIT 700 - 800, 2 Door Assembly Guide Step 2. Seat expanding cam dowels (G) into holes in both end panels (A) as shown. Page 6 For Internal Use: FI.WR.INS.021_WKIN00103_BASE_700_800_2Door_Rev7...
Page 7
BASE UNIT 700 - 800, 2 Door Assembly Guide Step 3. Attach panels (C) & (D) to panels (A), using expanding cam dowels (G), and wooden dowels (F) in positions as shown. All cam lock (H) holes are to be positioned facing the outside of the unit carcase, for ease of tightening.
Page 8
BASE UNIT 700 - 800, 2 Door Assembly Guide Step 4. Slide back panel (B) into groove of end panels (A). Once back panel (B) is in position, (ensure the panel is flush & square with bottom of end panels.) Page 8 For Internal Use: FI.WR.INS.021_WKIN00103_BASE_700_800_2Door_Rev7...
Page 9
BASE UNIT 700 - 800, 2 Door Assembly Guide Step 5. Insert cam locks (H) and hand tighten them, this will expand cam dowels (G) and tighten the unit together. Do not use power tools with cam lock (H) Page 9 For Internal Use: FI.WR.INS.021_WKIN00103_BASE_700_800_2Door_Rev7...
Page 10
BASE UNIT 700 - 800, 2 Door Assembly Guide Step 6. Ensure the unit is square. Secure back panel (B) with 4 x 30mm screws (K) equally spaced at the bottom of back panel (B) into base panel (C), as shown. Ensure you screw into the centre of the base panel (C) (9mm from the edge).
Page 11
BASE UNIT 700 - 800, 2 Door Assembly Guide Step 7. Position legs as shown on the diagram below. Ensure legs are rotated to also provide support to the end panels (A). Once positioned, secure each of the legs into place with 4 x 15mm screws (L) per leg.
Page 12
BASE UNIT 700 - 800, 2 Door Assembly Guide Step 8. Attach hinge plates onto both end panels (A) as shown, using 2 screws already located in hinge plates. Hinge side to be mounted in accordance to customer specific kitchen plan. From top 94mm 126mm...
Page 13
BASE UNIT 700 - 800, 2 Door Assembly Guide Screws for attaching to walls and worktops are not provided as these vary depending on materials, thickness and construction. Ensure appropriate fixings for wall and worktop construction are used. Please refer to the specialist worktop supplier if these are required for solid surface worktops. Step 9.
Page 14
BASE UNIT 700 - 800, 2 Door Assembly Guide HINGE ATTACHMENT AND ADJUSTMENT Step 1. Insert hinges into frontal hinge holes provided, secure hinges with Hinge dowels the 2 x screws and hinge dowels already located in the hinges. Step 2. Attach the door to unit, clip hinges onto hinge plates and click to secure.
Page 15
BASE UNIT 700-800, 2 Door Assembly Guide For Internal Use: FI.WR.INS.021_WKIN00103_BASE_700_800_2Door_Rev7...
