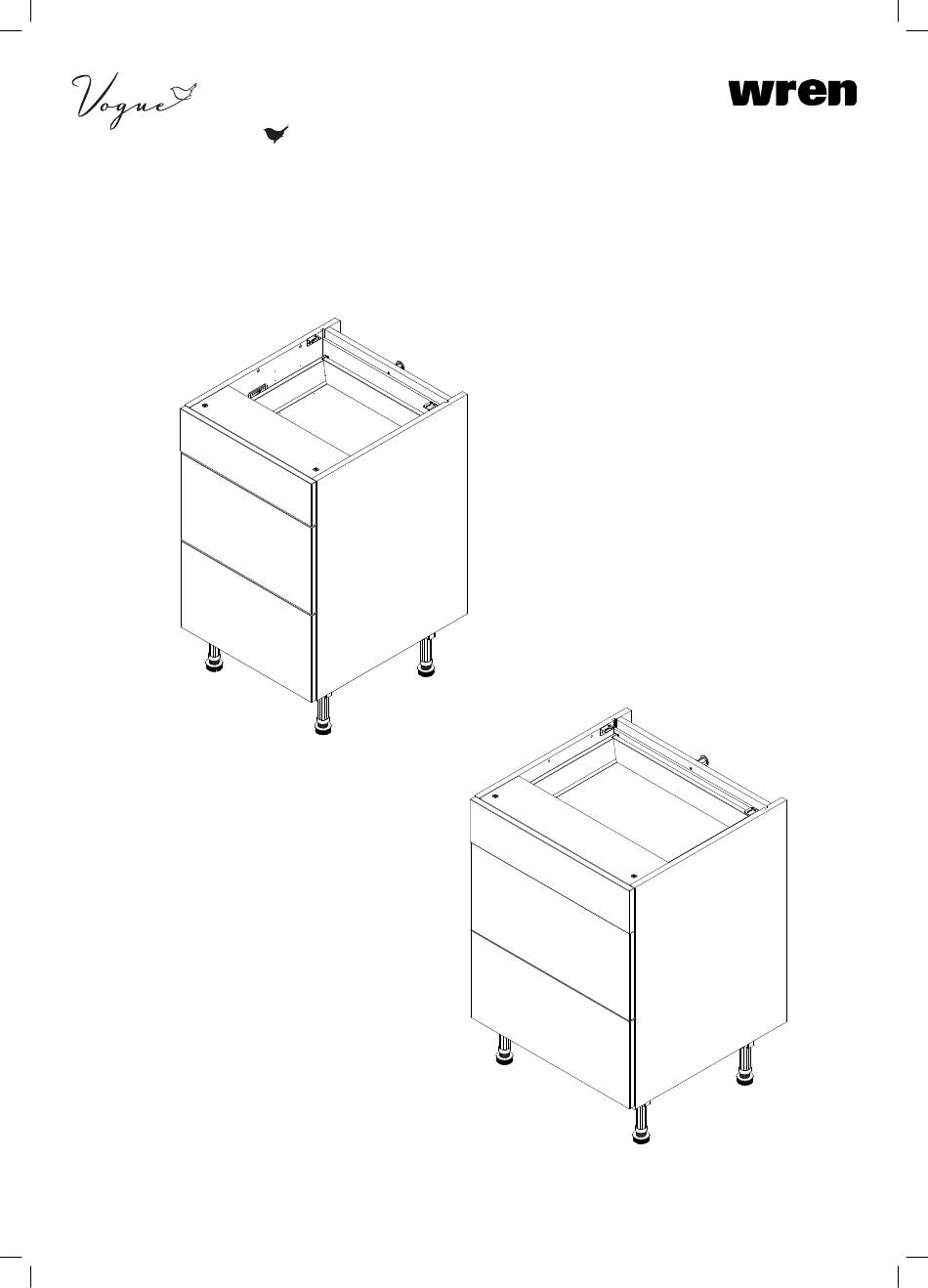

- Page 1 BASE UNIT 500-600, 3 Drawer Assembly Guide 500, 3 Drawer Base Unit 600, 3 Drawer Base Unit For Internal Use: FI.WR.INS.025_WKIN00107_BASE_500_600_3Drawer_Rev7...
- Page 2 BASE UNIT 500-600, 3 Drawer Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED NOT to be used with CAM LOCK Page 2 For Internal Use: FI.WR.INS.025_WKIN00107_BASE_500_600_3Drawer_Rev7...
- Page 3 BASE UNIT 500-600, 3 Drawer Assembly Guide Standard Drawer (Packed Separately) (1 Pack Supplied) Drawer Base Frontal Back Panel Drawer Runner Drawer Runner Drawer Side Drawer Side x1 Drawer Base Panel x1 Front Panel x1 Metal Back Panel x1 Right Hand x1 Left Hand x1 Right Hand x1 Left Hand...
- Page 4 BASE UNIT 500-600, 3 Drawer Assembly Guide Decorative STANDARD DRAWER ASSEMBLY face Step 1. Seat the edge of drawer base tight into the corner of the drawer side, as shown. The decorative face of drawer base to be positioned at the front of the drawer. Secure drawer base to drawer side using 4 x 16mm drawer runner screws (J) in holes provided.
- Page 5 BASE UNIT 500-600, 3 Drawer Assembly Guide Decorative DEEP DRAWER ASSEMBLY face Step 1. Seat the edge of drawer base tight into the corner of the drawer side, as shown. The decorative face of drawer base to be positioned at the front of the drawer. Secure drawer base to drawer side using 4 x 16mm drawer runner screws (J) in holes provided.
- Page 6 BASE UNIT 500-600, 3 Drawer Assembly Guide DRAWER ADJUSTMENT Left and Right Adjustment Turn screw shown to adjust drawer frontal left & right. Drawer adjustments to be done on both sides. Up & Down Adjustment Turn screw shown to adjust drawer frontal up & down. Lock Position Tighten screw shown to lock in position.
- Page 7 BASE UNIT 500-600, 3 Drawer Assembly Guide Panel A Panel B Panel C Panel D x2 End Panel x1 Back Panel x1 Fixed Shelf x2 Rail (F) x12 (L) x28 (K) x7 (H) x8 (G) x8 Wooden 15mm 30mm Cam Dowel Cam Lock Dowel Screw...
- Page 8 BASE UNIT 500-600, 3 Drawer Assembly Guide Step 1. To attach drawer runner screw into end panels (A) using 2 x 16mm screws (J) (provided with drawer box pack) per drawer rail, into holes provided, as shown. Repeat Step 1 for the other side of end panels (A). Drawer runner bracket screw position Drawer runners position 646mm...
- Page 9 BASE UNIT 500-600, 3 Drawer Assembly Guide Step 2. Seat dowels (F) into holes in both end panels (A) as shown. Page 9 For Internal Use: FI.WR.INS.025_WKIN00107_BASE_500_600_3Drawer_Rev7...
- Page 10 BASE UNIT 500-600, 3 Drawer Assembly Guide Step 3. Seat expanding cam dowels (G) into holes in both end panels (A) as shown. Page 10 For Internal Use: FI.WR.INS.025_WKIN00107_BASE_500_600_3Drawer_Rev7...
- Page 11 BASE UNIT 500-600, 3 Drawer Assembly Guide Step 4. Attach panels (C) & (D) to panels (A), using expanding cam dowels (G), and wooden dowels (F) in positions as shown. All cam lock (H) holes are to be positioned facing the outside of the unit carcase, for ease of tightening.
- Page 12 BASE UNIT 500-600, 3 Drawer Assembly Guide Step 5. Slide back panel (B) into groove of end panels (A). Once back panel (B) is in position, ensure the panel is flush & square with bottom of end panels. Page 12 For Internal Use: FI.WR.INS.025_WKIN00107_BASE_500_600_3Drawer_Rev7...
- Page 13 BASE UNIT 500-600, 3 Drawer Assembly Guide Step 6. Insert cam locks (H) and hand tighten them, this will expand cam dowels (G) and tighten the unit together. Do not use power tools with cam lock (H) Page 13 For Internal Use: FI.WR.INS.025_WKIN00107_BASE_500_600_3Drawer_Rev7...
- Page 14 BASE UNIT 500-600, 3 Drawer Assembly Guide Step 7. Ensure the unit is square. Secure back panel (B) with 3 x 30mm screws (K) equally spaced at the bottom of back panel (B) into base panel (C), as shown. Ensure you screw into the centre of the base panel (C) (9mm from the edge). Page 14 For Internal Use: FI.WR.INS.025_WKIN00107_BASE_500_600_3Drawer_Rev7...
- Page 15 BASE UNIT 500-600, 3 Drawer Assembly Guide Step 8. Position legs as shown on the diagram below. Ensure legs are rotated to also provide support to the end panels (A). Once positioned, secure each of the legs into place with 4 x 15mm screws (L) per leg.
- Page 16 BASE UNIT 500-600, 3 Drawer Assembly Guide Screws for attaching to walls and worktops are not provided as these vary depending on materials, thickness and construction. Ensure appropriate fixings for wall and worktop construction are used. Please refer to the specialist worktop supplier if these are required for solid surface worktops. Step 9.
