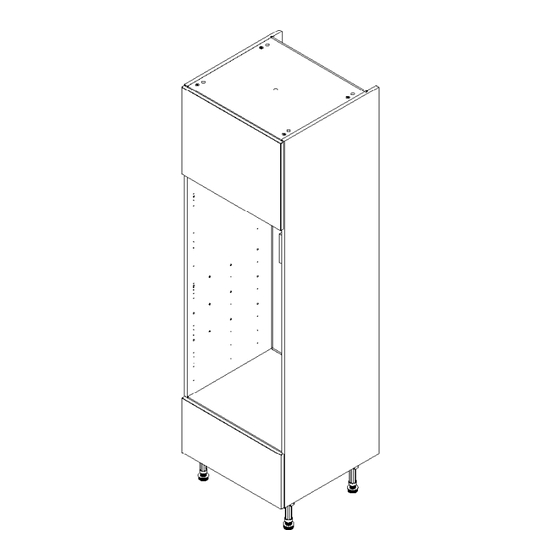

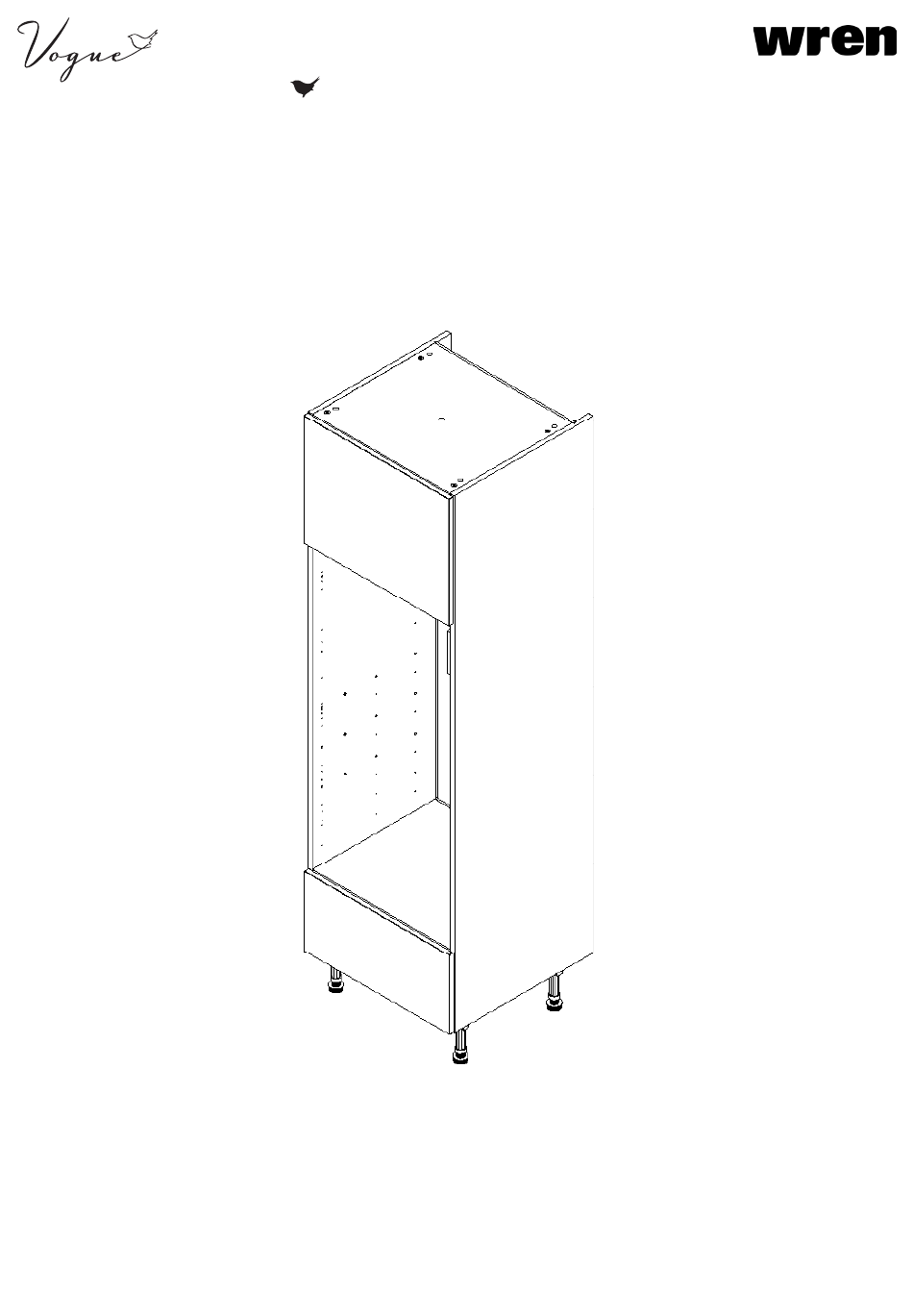

- Page 1 TOWER UNIT 600 Double Appliances Tower (1 Door, Drawer, Solid Top) - Fitting Guide 600 Double Appliance + 450 Appliance For Internal Use: 600 Double Appliances Tower (1 Door, Drawer, Solid Top) - Fitting Guide...
-
Page 2: Before You Start
BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED NOT to be used with CAM LOCK Page 2 For Internal Use: 600 Double Appliances Tower (1 Door, Drawer, Solid Top) - Fitting Guide... - Page 3 Deep Drawer (Packed Separately) Drawer Base Back Panel Frontal x1 Drawer Base Panel x1 Metal Back Panel x1 Front Panel (Large) (Packed Separately) Drawer Side Drawer Runner Drawer Runner Gallery Rail Drawer Side x1 Right Hand x1 Left Hand x1 Right Hand x1 Left Hand (L) x2 (J) x16...
- Page 4 Decorative Drawer Assembly (Where Applicable) Face Step 1. Secure drawer base to drawer side using 3 x 16mm screws (J) in holes provided. Seat the edge of drawer base tight into corner of casing, as shown. The decorative face of drawer base to be positioned as shown. Repeat step 1 so both drawer sides are attached to drawer base.
- Page 5 DRAWER ADJUSTMENT Left and Right Adjustment Turn screw shown to adjust drawer frontal left & right. Drawer adjustments to be done on both sides. Up & Down Adjustment Turn screw shown to adjust drawer frontal up & down. Lock Position Tighten screw shown to lock in position.
- Page 6 TM DRAWER SIDE COVER CAPS Fit drawer cover caps over drawer side adjustment. Position the edge closest to the frontal first. Drawer cover cap Position the far side edge into place. Press the cover cap against the drawer side to secure it in place. Repeat on the opposite side.
- Page 7 Panel D Panel B Panel C Shelf Frontals Panel A x2 Rail x1 Appliance Shelf x2 End Panel x2 Back Panel x4 Fixed Shelf x1 Front Panel (Packed Separately) Page 7 For Internal Use: 600 Double Appliances Tower (1 Door, Drawer, Solid Top) - Fitting Guide...
- Page 8 (F) x24 (L) x32 (K) x16 (G) x20 (H) x20 Wooden 15mm 30mm Cam Lock Cam Dowel Dowel Screw Screw (Expanding) L Bracket SML (M) x4 L Bracket (Z) x4 (N) x2 Cover Cap Shelf Peg Metal Door Buffer Hinge Mounting Plate Hinge Inc Screws Inc Screws &...
- Page 9 Step 1. Seat dowels (F) into holes in both end panels (A) as shown. Step 2. Seat expanding cam dowels (G) into holes in both end panels (A) as shown. 1468mm 1468mm 282mm 282mm From bottom From bottom Page 9 For Internal Use: 600 Double Appliances Tower (1 Door, Drawer, Solid Top) - Fitting Guide...
- Page 10 Step 3. Attach the drawer runner to end panel (A) using 2 x 16mm screws (J) per drawer runner, into holes provided, as shown. Repeat Step 1 for the other end panel (A). Drawer runner bracket screw position Drawer runners position 74mm 74mm From bottom...
- Page 11 Step 4. Attach panels (C) & (D) to end panels (A), using expanding cam dowels (G), and wooden dowels (F) in positions as shown in Step 1 & 2. All cam lock (H) holes are to be positioned facing the outside of the unit carcase, for ease of tightening.
- Page 12 Step 5. Cut back panel (B) to suit appliance option, leaving the centre appliance aperture open. Step 6. Slide back panels (B) into groove of end panels (A). Once back panels (B) are in position, ensure the panels are flush and square with the end panels and fixed shelves. Page 12 For Internal Use: 600 Double Appliances Tower (1 Door, Drawer, Solid Top) - Fitting Guide...
- Page 13 Step 7. Insert cam locks (H) and hand tighten them, this will expand cam dowels (G) and tighten the unit together. Do not use power tools with cam lock (H) Page 13 For Internal Use: 600 Double Appliances Tower (1 Door, Drawer, Solid Top) - Fitting Guide...
- Page 14 Step 8. Ensure the unit is square. Secure back panel (B) with 12 x 30mm screws (K) equally spaced at the top and bottom of back panels (B) into panels (C), as shown. Ensure you screw into the centre of panels (C) (9mm from the edge). Page 14 For Internal Use: 600 Double Appliances Tower (1 Door, Drawer, Solid Top) - Fitting Guide...
- Page 15 Step 9. Position legs as shown on the diagram below. Ensure legs are rotated to also provide support to the end panels (A). Once positioned, secure each of the legs into place with 4 x 15mm screws (L) per leg. Push leg firmly down into leg base. Adjust legs to 155mm before lifting unit upright.
- Page 16 Step 10. Attach hinge plates onto both end panels (A) as shown, using 2 screws already located in hinge plates. Hinge side to be mounted in accordance to customer specific kitchen plan. N.B. For appliance shelf, secure to panel (B) using 4 x L brackets SML and 2 x 15mm screws (L) per L bracket SML.
- Page 17 Screws for attaching to walls are not provided as these vary depending on materials, thickness and construction. Ensure appropriate fixings for wall construction are used. Step 11. Use 2 x 15mm screws (L) to secure each of the L brackets to the rear of the unit at either side.
- Page 18 HINGE ATTACHMENT AND ADJUSTMENT Step 1. Insert hinges into frontal hinge holes provided, secure hinges with Hinge dowels the 2 x screws already located in the hinges and hinge dowels. Step 2. Attach the door to unit, clip hinges onto hinge plates and click to secure.
- Page 19 For Internal Use: 600 Double Appliances Tower (1 Door, Drawer, Solid Top) - Fitting Guide...
