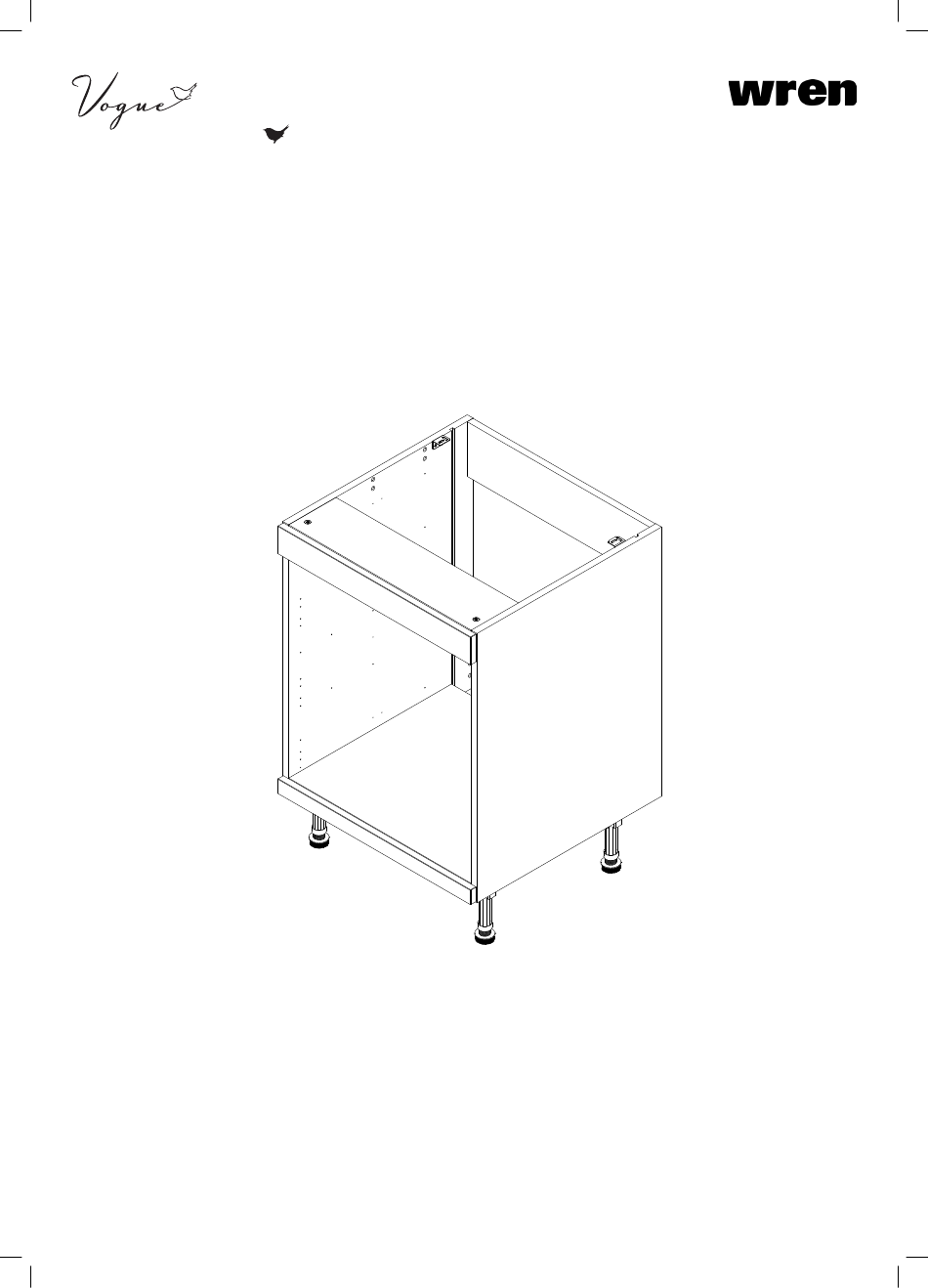

- Page 1 BASE UNIT 600 BUOH Assembly Guide 600 BUOH Base Unit For Internal Use: FI.WR.INS.031_WKIN00110_BASE_600_BUOH_Rev10...
- Page 2 BASE UNIT 600 BUOH Assembly Guide BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED NOT to be used with CAM LOCK Page 2 For Internal Use: FI.WR.INS.031_WKIN00110_BASE_600_BUOH_Rev10...
- Page 3 BASE UNIT 600 BUOH Assembly Guide Panel D Panel A Panel C Filler G Filler F x2 End Panel x2 Rail x1Fixed Shelf (Packed Separately) (Packed Separately) Page 3 For Internal Use: FI.WR.INS.031_WKIN00110_BASE_600_BUOH_Rev10...
- Page 4 BASE UNIT 600 BUOH Assembly Guide (F) x16 (L) x26 (Q) x2 (K) x4 (G) x12 (H) x12 Wooden 15mm 30mm Cam Lock 21mm Cam Dowel Dowel Screw Screw Screw (Expanding) Part A Part B Dummy Fixing Clip L Bracket SML L Bracket LGE (M) x4 x2 Inc Screws...
- Page 5 BASE UNIT 600 BUOH Assembly Guide Step 1. Seat dowels (F) into holes in both end panels (A) as shown. Page 5 For Internal Use: FI.WR.INS.031_WKIN00110_BASE_600_BUOH_Rev10...
- Page 6 BASE UNIT 600 BUOH Assembly Guide Step 2. Seat expanding cam dowels (G) into holes in both end panels (A) as shown. Page 6 For Internal Use: FI.WR.INS.031_WKIN00110_BASE_600_BUOH_Rev10...
- Page 7 BASE UNIT 600 BUOH Assembly Guide Step 3. Attach panels (C) & (D) to panels (A), using expanding cam dowels (G), and wooden dowels (F) in positions as shown. All cam lock (H) holes are to be positioned facing the outside of the unit carcase, for ease of tightening.
- Page 8 BASE UNIT 600 BUOH Assembly Guide Step 4. Insert cam locks (H) and hand tighten them, this will expand cam dowels (G) and tighten the unit together. Do not use power tools with cam lock (H) Page 8 For Internal Use: FI.WR.INS.031_WKIN00110_BASE_600_BUOH_Rev10...
- Page 9 BASE UNIT 600 BUOH Assembly Guide Step 5. Position legs as shown on the diagram below. Once positioned, secure each of the legs into place with 4 x 15mm screws (L) per leg. Push leg firmly down into leg base. Adjust legs to 155mm before turning unit upright.
- Page 10 BASE UNIT 600 BUOH Assembly Guide Step 6. Use 1 x 15mm screw (L) per L bracket SML to secure to inside face of filler (G). Attached equally spaced as shown. From top INSIDE FACE 24mm From edge 155mm 155mm Step 7.
- Page 11 BASE UNIT 600 BUOH Assembly Guide Screws for attaching to walls and worktops are not provided as these vary depending on materials, thickness and construction. Ensure appropriate fixings for wall and worktop construction are used. Please refer to the specialist worktop supplier if these are required for solid surface worktops. Step 8.
- Page 12 BASE UNIT 600 BUOH Assembly Guide Step 12. Secure dummy fixing clips (Parts B) onto the inside face at the bottom of filler (F), 56mm from the top face and 26mm from the edges to the screw hole of (Parts B), spaced evenly either side as shown, using 1 x 21mm screw (Q) per dummy fixing clip (Part B).
