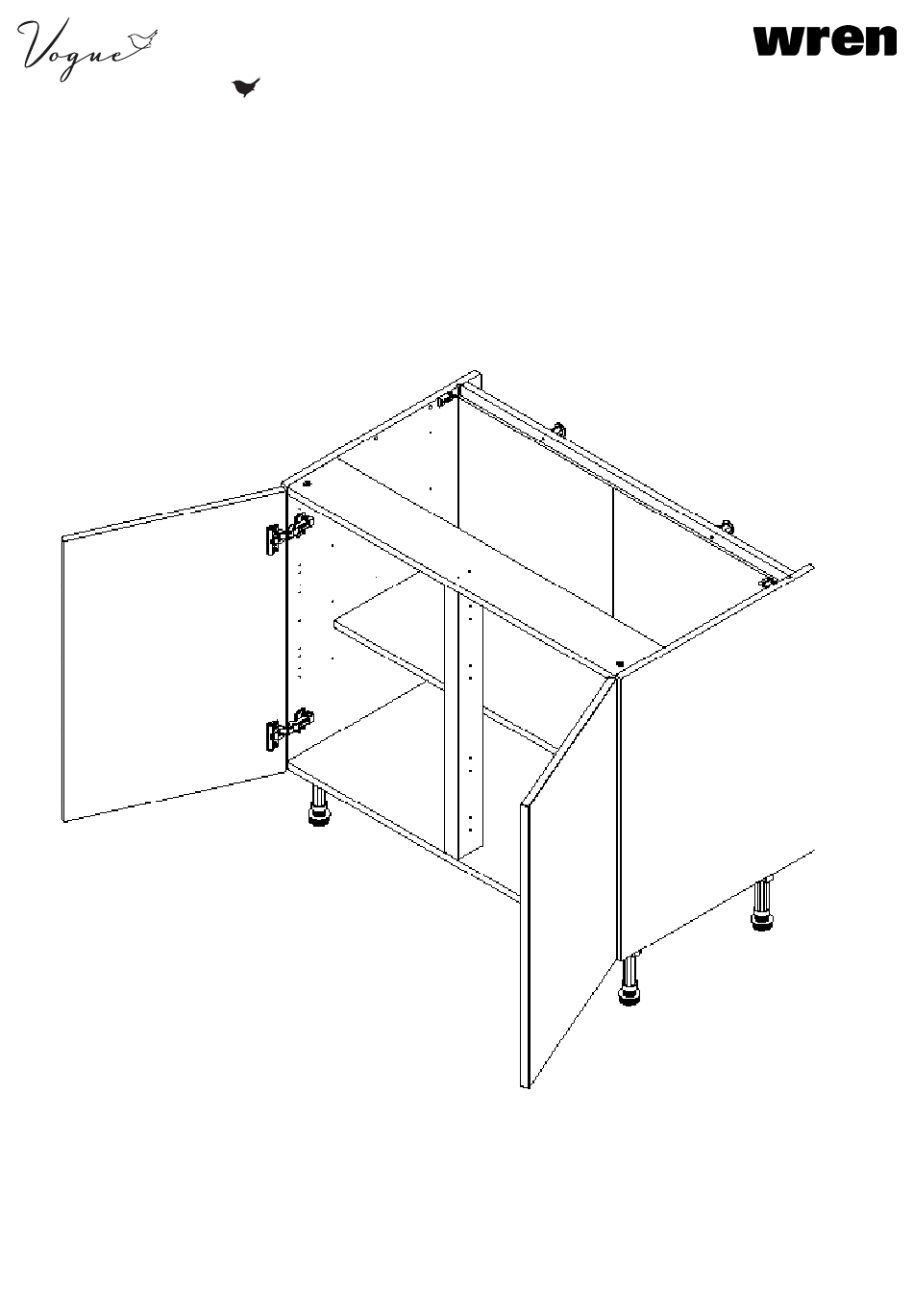

- Page 1 BASE UNIT 1000 Base (2 Door, Open Top, 5 Legs) - Fitting Guide 1000 Base Unit For Internal Use: 1000 Base (2 Door, Open Top, 5 Legs)
- Page 2 BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED NOT to be used with CAM LOCK Page 2 For Internal Use: 1000 Base (2 Door, Open Top, 5 Legs)
- Page 3 Panel E Panel A Panel B Panel C Panel D Shelf Frontal x2 End Panel x1 Muntin x1 Back Panel x1 Fixed Shelf x2 Rail x1 Loose Shelf x2 Front Panel (Folded) (Packed Separately) Page 3 For Internal Use: 1000 Base (2 Door, Open Top, 5 Legs)
- Page 4 (G) x8 (F) x12 (L) x32 (K) x8 (P) x4 (H) x8 Cam Dowel Wooden 15mm 30mm Cam Lock 45mm Dowel Screw Screw (Expanding) Screw (M) x4 L Bracket (Z) x5 (N) x2 Space Plug Cover Cap Shelf Peg Metal Door Buffer Hinge Mounting Plate Hinge...
- Page 5 Step 1. Seat dowels (F) into holes in both end panels (A) as shown. Page 5 For Internal Use: 1000 Base (2 Door, Open Top, 5 Legs)
- Page 6 Step 2. Seat expanding cam dowels (G) into holes in both end panels (A) as shown. Page 6 For Internal Use: 1000 Base (2 Door, Open Top, 5 Legs)
- Page 7 Step 3. Attach panels (C) & (D) to panels (A), using expanding cam dowels (G), and wooden dowels (F) in positions as shown. All cam lock (H) holes are to be positioned facing the outside of the unit carcase, for ease of tightening. Page 7 For Internal Use: 1000 Base (2 Door, Open Top, 5 Legs)
- Page 8 Step 4. Slide back panel (B) into groove of end panels (A). Once back panel (B) is in position, ensure the panel is flush & square with bottom of end panels.
- Page 9 Step 5. Insert cam locks (H) and hand tighten them, this will expand cam dowels (G) and tighten the unit together. Do not use power tools with cam lock (H)
- Page 10 Step 6. Ensure the unit is square. Secure back panel (B) with 4 x 30mm screws (K) equally spaced at the bottom of back panel (B) into base panel (C), as shown. Ensure you screw into the centre of the base panel (C) (9mm from the edge). Page 10 For Internal Use: 1000 Base (2 Door, Open Top, 5 Legs)
- Page 11 Step 7. To secure muntin post (E) in place, use pre-drilled pilot holes to align muntin as shown. Secure muntin (E) to base (C) & rail (D) using 4 x 45mm screws (P) as shown. Please refer to customer specific kitchen plan for left or right hand orientation.
- Page 12 Step 8. Position legs as shown on the diagram below. Ensure legs are rotated to also provide support to the end panels (A). Once positioned, secure each of the legs into place with 4 x 15mm screws (L) per leg. Push leg firmly down into leg base. Adjust legs to 155mm before turning unit upright. Once in situ level accordingly.
- Page 13 Step 9. Attach hinge plates onto both end panels (A) as shown, using 2 screws already located in hinge plates. Hinge to be mounted in accordance to customer specific kitchen plan. From top 94mm 126mm INSIDE FACE 126mm 94mm From bottom Page 13 For Internal Use: 1000 Base (2 Door, Open Top, 5 Legs)
- Page 14 Screws for attaching to walls and worktops are not provided as these vary depending on materials, thickness and construction. Ensure appropriate fixings for wall and worktop construction are used. Please refer to the specialist worktop supplier if these are required for solid surface worktops. Step 10.
- Page 15 HINGE ATTACHMENT AND ADJUSTMENT Step 1. Insert hinges into frontal hinge holes provided, secure hinges with Hinge dowels the 2 x screws and hinge dowels already located in the hinges. Step 2. Attach the door to unit, clip hinges onto hinge plates and click to secure.
