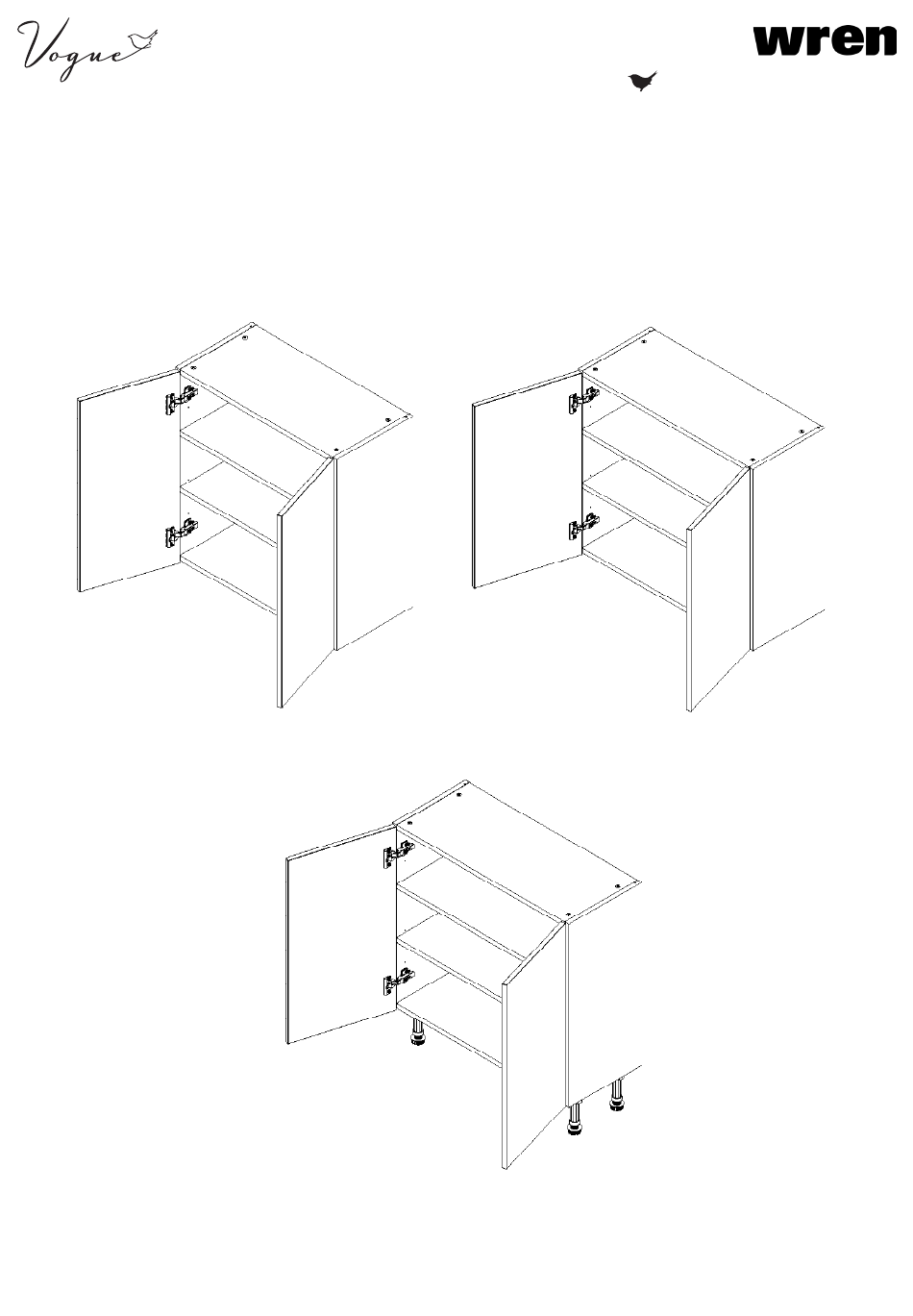

- Page 1 WALL/SHALLOW BASE UNIT 700-800 Wall and Shallow Base (2 Door, Solid Top) - Fitting Guide 700 WALL 800 WALL 700-800 SHALLOW BASE For Internal Use: 700-800 Wall and Shallow Base (2 Door, Solid Top) - Fitting Guide...
-
Page 2: Before You Start
BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED NOT to be used with CAM LOCK Page 2 For Internal Use: 700-800 Wall and Shallow Base (2 Door, Solid Top) - Fitting Guide... - Page 3 Panel C Shelf Frontal Panel B Panel A x1 Front Panel x1 Back Panel x2 Fixed Shelf x2 Loose Shelf x2 End Panel (Packed Separetely) Page 3 For Internal Use: 700-800 Wall and Shallow Base (2 Door, Solid Top) - Fitting Guide...
- Page 4 (F) x8 (L) x8 (S) x4 (K) x4 (G) x8 (H) x8 Wooden 15mm 20mm 30mm Cam Lock Cam Dowel Dowel Screw Screw Screw (Expanding) (T) x10 (M) x4 (Z) x8 (N) x2 Hanging Bracket Back Panel Cover Cap Door Buffer Shelf Peg Metal Cover Cap Support Clip...
- Page 5 Step 1. Seat dowels (F) into holes in both end panels (A) as shown. Page 5 For Internal Use: 700-800 Wall and Shallow Base (2 Door, Solid Top) - Fitting Guide...
- Page 6 Step 2. Seat expanding cam dowels (G) into holes in both end panels (A) as shown. Page 6 For Internal Use: 700-800 Wall and Shallow Base (2 Door, Solid Top) - Fitting Guide...
- Page 7 Step 3. Attach panels (C) to panel (A), using expanding cam dowels (G), and wooden dowels (F) in positions as shown. All cam lock (H) holes are to be positioned facing the outside of the unit carcase, for ease of tightening. Page 7 For Internal Use: 700-800 Wall and Shallow Base (2 Door, Solid Top) - Fitting Guide...
- Page 8 Step 4. Slide back panel (B) into grooves of panels (C) and end panel (A). Page 8 For Internal Use: 700-800 Wall and Shallow Base (2 Door, Solid Top) - Fitting Guide...
- Page 9 Step 5. Attach end panel (A) using expanding cam dowels (G), and wooden dowels (F) in positions as shown. Page 9 For Internal Use: 700-800 Wall and Shallow Base (2 Door, Solid Top) - Fitting Guide...
- Page 10 Step 6. Insert cam locks (H) and hand tighten them, this will expand cam dowels (G) and tighten the unit together. Do not use power tools with cam lock (H) Page 10 For Internal Use: 700-800 Wall and Shallow Base (2 Door, Solid Top) - Fitting Guide...
- Page 11 Step 7. Ensure the unit is square. Slide back panel clips (T) into the groove of both panels (A) & (C). The back panel clips (T) should be evenly spaced as shown and positioned to allow the hanging bracket and corner gussets to be fitted.
- Page 12 Step 8. Attach hinge plates onto both end panels (A) as shown, using 2 screws already located in hinge plates. From Top 94mm 126mm INSIDE FACE 126mm 94mm From Bottom Page 12 For Internal Use: 700-800 Wall and Shallow Base (2 Door, Solid Top) - Fitting Guide...
- Page 13 WALL UNITS ONLY Step 9. Hanging brackets steps A, B & C to be carried out on both sides as shown. A. Insert hanging bracket into pre-drilled holes. B. Rotate locking lever 180 degrees. C. Secure with provided 2 x 20mm screws (S) per bracket. Step 10.
- Page 14 WALL UNITS ONLY Care to be taken. Hanging procedure is necessary for a safe installation. Screws for attaching to walls are not provided as these vary depending on materials, thickness and construction. Ensure appropriate fixings for wall construction are used. Step 12.
- Page 15 WALL UNITS ONLY Step 14. Using points a, b & c adjust the unit to suit. Point a. Rotate the top screw clockwise to move the unit up. Anti-clockwise for down. Point b. Adjust the depth using centre screw. Point c. Turn the bottom screw until it touches the plate to lock in position.
- Page 16 SHALLOW BASE UNITS ONLY Step 17. Secure corner gussets to the top left and right hand side of the wall unit using 4 x 15mm screws (L) per plate. Step 18. Drill a small pilot hole through the centre of the Corner Gussets. Use this hole at the end of the process to screw through and into the wall.
- Page 17 SHALLOW BASE UNITS ONLY Step 20. Screw into any adjacent units using 30mm screws (K) provided to secure to unit. Screw just to the rear of the hinge plate at the top and bottom of both sides of the unit, place cover caps (M) on the heads to conceal them. Step 21.
- Page 18 HINGE ATTACHMENT AND ADJUSTMENT Step 1. Insert hinges into frontal hinge holes provided, secure hinges with Hinge dowels the 2 x screws and hinge dowels already located in the hinges. Step 2. Attach the door to unit, clip hinges onto hinge plates and click to secure.
