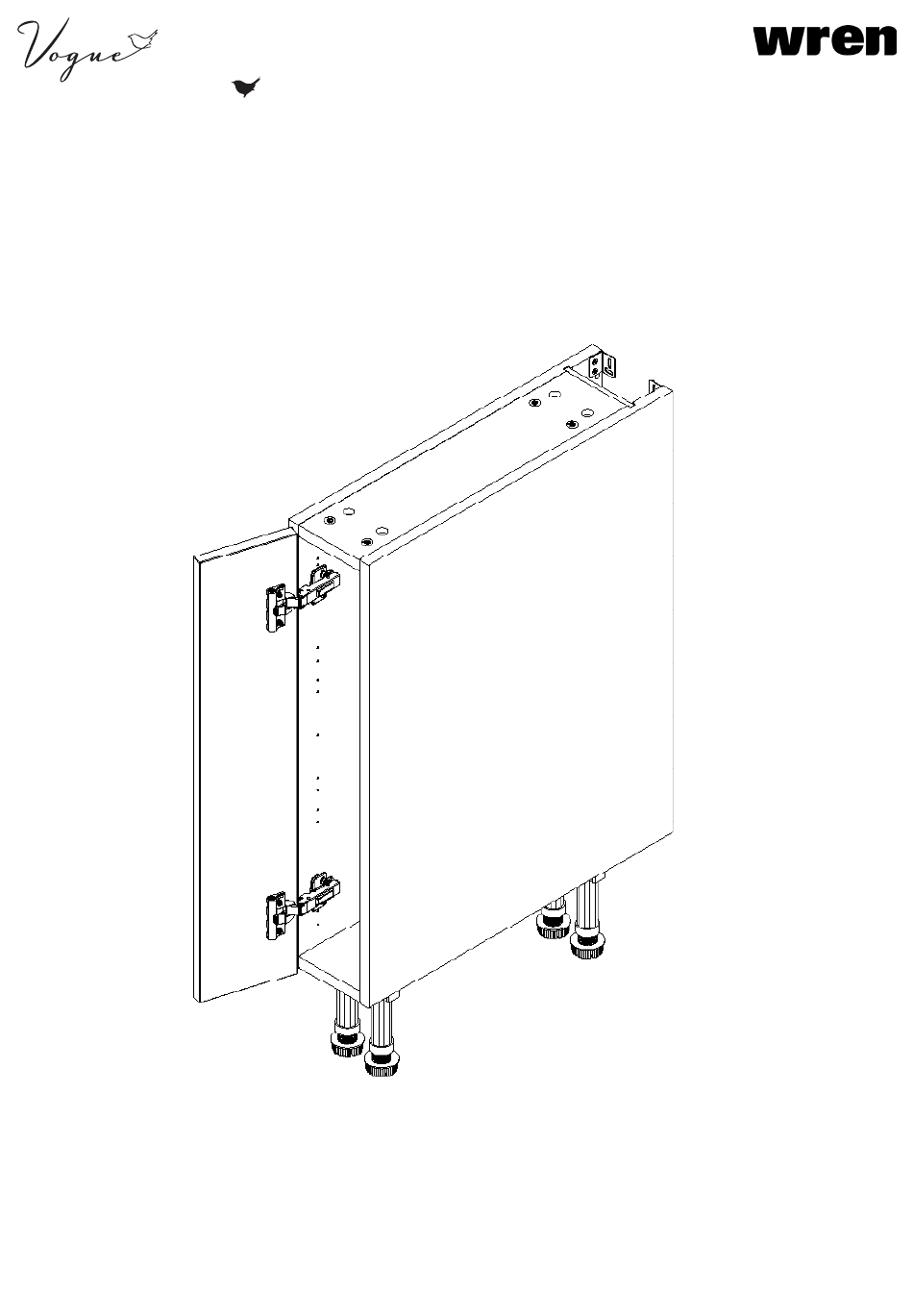

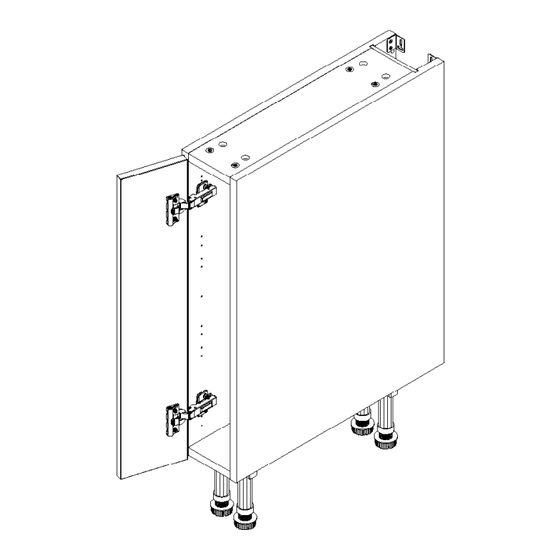

- Page 1 BASE UNIT 150 Base (Door, Solid Top, 4 Legs) - Fitting Guide 150 Base Unit For Internal Use: Vogue Flat Pack Base (Door, Solid Top, 4 Legs)
- Page 2 BEFORE YOU START INSTALLATION SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED NOT to be used with CAM LOCK Page 2 For Internal Use: Vogue Flat Pack Base (Door, Solid Top, 4 Legs)
- Page 3 Panel A Panel C Shelf Frontal Panel B x2 End Panel x2 Fixed Shelf x1 Loose Shelf x1 Front Panel x1 Back Panel (Packed Separetly) Page 3 For Internal Use: Vogue Flat Pack Base (Door, Solid Top, 4 Legs)
- Page 4 (F) x12 (L) x28 (K) x7 (G) x8 (H) x8 Wooden 15mm 30mm Cam Lock Cam Dowel Dowel Screw Screw (Expanding) L Bracket (M) x4 (Z) x4 (N) x1 Cover Cap Shelf Peg Metal Door Buffer Hinge Mounting Plate Hinge Inc Screws Inc Screws &...
- Page 5 Step 1. Seat dowels (F) into holes in both end panels (A) as shown. Page 5 For Internal Use: Vogue Flat Pack Base (Door, Solid Top, 4 Legs)
- Page 6 Step 2. Seat expanding cam dowels (G) into holes in both end panels (A) as shown. Page 6 For Internal Use: Vogue Flat Pack Base (Door, Solid Top, 4 Legs)
- Page 7 Step 3. Attach fixed shelves (C) to panels (A), using expanding cam dowels (G), and wooden dowels (F) in positions as shown. All cam lock (H) holes are to be positioned facing the outside of the unit carcase, for ease of tightening. Page 7 For Internal Use: Vogue Flat Pack Base (Door, Solid Top, 4 Legs)
- Page 8 Step 4. Slide back panel (B) into groove of end panels (A). Once back panel (B) is in position, ensure the panel is flush & square with bottom of end panels. Page 8 For Internal Use: Vogue Flat Pack Base (Door, Solid Top, 4 Legs)
- Page 9 Step 5. Insert cam locks (H) and hand tighten them, this will expand cam dowels (G) and tighten the unit together. Do not use power tools with cam lock (H) Page 9 For Internal Use: Vogue Flat Pack Base (Door, Solid Top, 4 Legs)
- Page 10 Step 6. Ensure the unit is square. Secure back panel (B) with 2 x 30mm screws (K) at the top & bottom of back panel (B) into both fixed shelves (C), as shown. Ensure you screw into the centre of the fixed panels (C) (9mm from the edge). Page 10 For Internal Use: Vogue Flat Pack Base (Door, Solid Top, 4 Legs)
- Page 11 Step 7. Position legs as shown on the diagram below. Ensure legs are rotated to also provide support to the end panels (A). Once positioned, secure each of the legs into place with 4 x 15mm screws (L) per leg. Push leg firmly down into leg base. Adjust legs to 155mm before turning unit upright. Once in situ level accordingly.
- Page 12 Step 8. Attach hinge plates onto end panel (A) as shown, using 2 screws already located in hinge plates. Hinge side to be mounted in accordance to customer specific kitchen plan. From top 94mm 126mm INSIDE FACE 126mm 94mm From bottom Page 12 For Internal Use: Vogue Flat Pack Base (Door, Solid Top, 4 Legs)
- Page 13 Screws for attaching to walls and worktops are not provided as these vary depending on materials, thickness and construction. Ensure appropriate fixings for wall and worktop construction are used. Please refer to the specialist worktop supplier if these are required for solid surface worktops. Step 9.
- Page 14 Step 11. Screw from inside adjacent units using the 30mm screws (K) provided. Screw just to the rear of the hinge plate at the top and bottom of the adjacent unit, place cover caps (M) to the screw heads to conceal them. Step 12.
- Page 15 HINGE ATTACHMENT AND ADJUSTMENT Step 1. Insert hinges into frontal hinge holes provided, secure hinges with Hinge dowels the 2 x screws and hinge dowels already located in the hinges. Step 2. Attach the door to unit, clip hinges onto hinge plates and click to secure.
