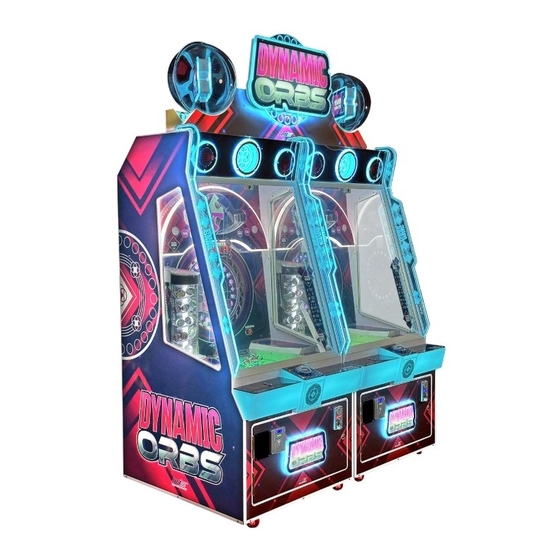

UNIS DYNAMIC ORBS Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT
Operation Manual

Advertisement

Table of Contents
loading

Related Manuals for UNIS DYNAMIC ORBS

Summary of Contents for UNIS DYNAMIC ORBS

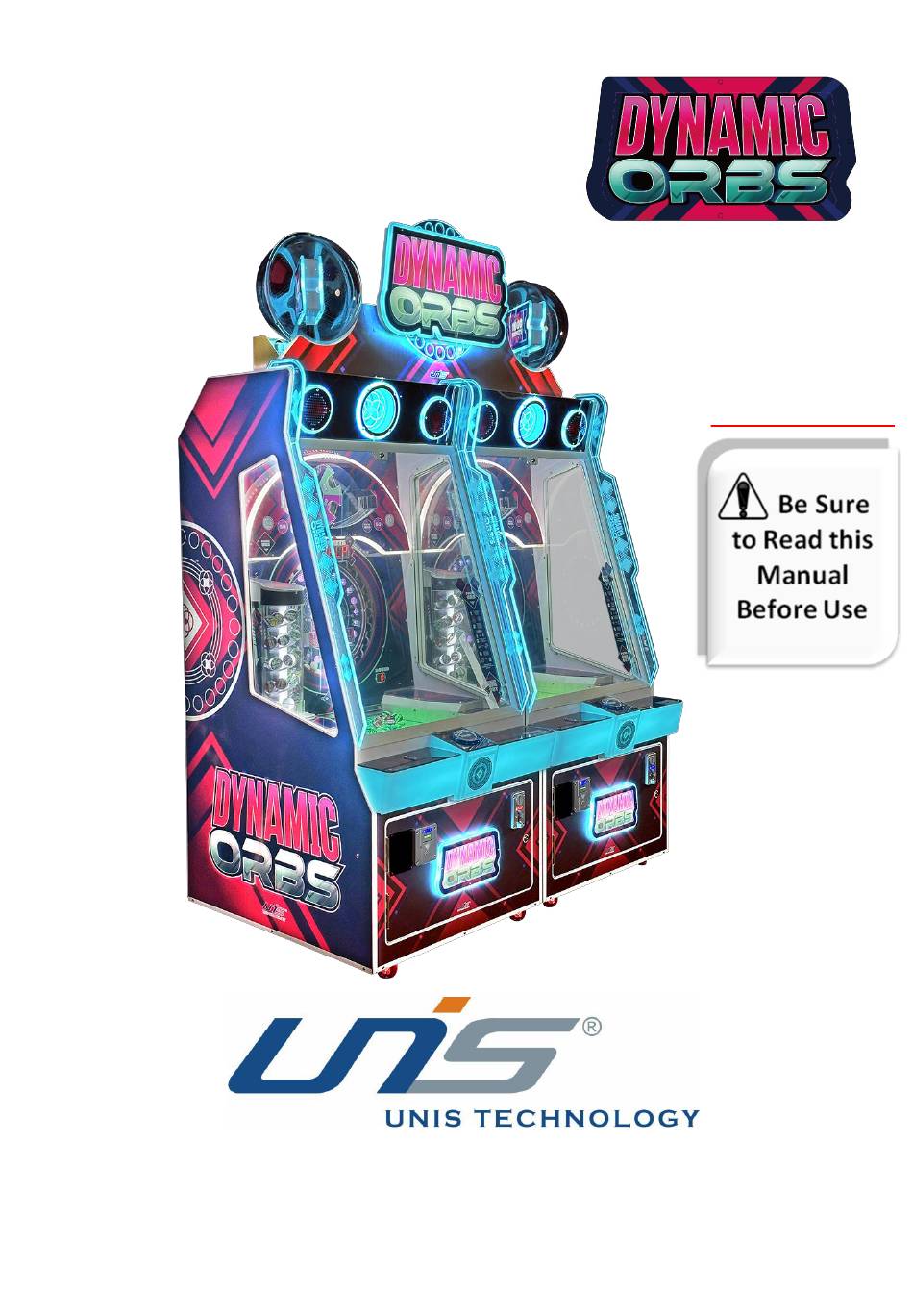

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Dynamic Orbs GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Dynamic Orbs GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ...................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ......................14 6. IO SETTING ......................16 7.

  • Page 4: Important Safety Instructions

    Dynamic Orbs GMP Manual Thank you for purchasing Dynamic Orbs GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Dynamic Orbs GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Dynamic Orbs GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; Min. Power consumption: 200W Max. Power consumption: 600W Dimension: H99.4×W65.5×D41.6 in H2525×W1665 ×D1057 mm Weight：Approximately 682.00 lb/391 KG Model No: A-506 NOTICE : After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    Dynamic Orbs GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Code No. Name/SPEC Picture 2.53.00171002 171A key 2.53.00172002 171B key Power cord 2.33.01.010020 3×16AWG 1.8M Fuse 2.19.01.000030B Ф5×20mm T10A 250VAC 4.14.40000664...

  • Page 8: Part Name

    Dynamic Orbs GMP Manual 3. PART NAME Key Components Marquee Assembly Speaker Ticket ball Turntable Button Push plate Coin Ticket mechanism dispenser 09/26/2023...

  • Page 9: Set Up & Installation

    Dynamic Orbs GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 Dynamic Orbs GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 11 Dynamic Orbs GMP Manual 4.4 Machine Installation Step 1 Place 2 cabinet together. Open back upper door and Front bottom door. Utilize screws to secure 2 cabinets. Name Hexagon nut Spec. Name Cross recess hexagon bolt set Spec. M6×45 09/26/2023...
  • Page 12 Dynamic Orbs GMP Manual Step 2 Install LOGO marquee to the back board bracket. Utilize screws to secure. LOGO marquee Name Cross recess hexagon bolt set Spec. M6×30 Back board bracket Step 3 Install Marquee to the top of the cabinet. Connect the connectors. Utilize screws to...
  • Page 13 Dynamic Orbs GMP Manual Step 4 Install L&R side marquee. Connect the connectors. Utilize screws to secure. Side Marquee Side Marquee Name Cross recess screw set Spec. M4×16 09/26/2023...
  • Page 14 Dynamic Orbs GMP Manual Step 5 Install Side round plastic. Utilize screws to secure. Name Cross recess screw set Spec. M4×12 Name Flange nut Spec. Step 6 Install Side motor cover plate. Utilize screws to secure. Name Cross recess screw set Spec.

  • Page 15: How To Play

    Dynamic Orbs GMP Manual 5. HOW TO PLAY 5.1 Time the Rotating light on the big wheel and tap the button to drop balls. 5.2 If balls passes “STOP” win prize based on the position of the rotating light on the big wheel.
  • Page 16 Dynamic Orbs GMP Manual 5.4 Bonus Party Time: Double tickets and increase rewards on the big wheel. 09/26/2023...

  • Page 17: Io Setting

    Dynamic Orbs GMP Manual 6. IO SETTING 6.1 U3 Board Input: INPUT Content INPUT Content INPUT Content Send big ball Turntable 1# IN17 sensor sensor Small ball drop Bonus plate reset IN10 IN18 detect sensor Send small ball Bonus plate...
  • Page 18 Dynamic Orbs GMP Manual Fixed (input/output) part: Stand-alone part： Item Content Content Item Content Content (O32)C_LK2 (IN24)C_IN2 DBV signal CION(J22) (O31)C_LK1 Lock coin signal PE10 (IN23)C_IN1 Coin signal PE11 PE8-15 (J6) PE12 (O26)T2_OUT PE13 (IN22)T2_IN Start button PE14 PE15 TICK (J20)
  • Page 19 Dynamic Orbs GMP Manual Communication： Item Content Content Big ball reader A Big ball reader B 485(J14) USART(J11) (MCU) Motor drive board TX USART(J12) (232) Motor drive board RX USART(J13) (232) USART(J8) (232) 09/26/2023...
  • Page 20 Dynamic Orbs GMP Manual 6.2 16 Road Extension Board IO Chart Output：J3、J4、J5、J6、J7 OUTPUT Content OUTPUT Content OUT1 Bonus light 1 OUT9 OUT2 Bonus light 2 OUT10 OUT3 Bonus light 3 OUT11 OUT4 Bonus light 4 OUT12 OUT5 Bonus light 5...
  • Page 21 Dynamic Orbs GMP Manual Machine settings： Long press "Settings" button to enter. Press "Settings" button to select, Press "Test" +, Press "Reset" -. Settings Instructions Default Test/Reset button Press Game version 1:chinese; 2: GMP Fixed Settings↓ Press Coins/Game 0-5，0 is free play ±1...
  • Page 22 Dynamic Orbs GMP Manual Machine Test： Long press "Settings" button to enter. Press "Settings" button to select, Press "Test" +, Press "Reset" -. Settings Press "Test" +, Press "Reset" -. button Press Display Test 0-9 Loops Settings↓ The corresponding input value is displayed...
  • Page 23 Dynamic Orbs GMP Manual Error Code： Er01: Samll ball up motor/Sensor is faulty Er06: Turntable motor/Turntable sending sensor is faulty Er07: Turntable sensor is faulty Er08: Bonus plate reset failed Er09: Bonus plate turning sensor is faulty Er10: Bonus plate prizing sensor is faulty Er11: U3 board&...

  • Page 24: Troubleshootings

    Dynamic Orbs GMP Manual 7. TROUBLESHOOTINGS 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service. Turn on power SW again. If appeared...

  • Page 25: Maintenance & Inspection

    Dynamic Orbs GMP Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
  • Page 28 滤 波 器...
