The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic
Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives
2006/95/EC and 2004/108/EC.

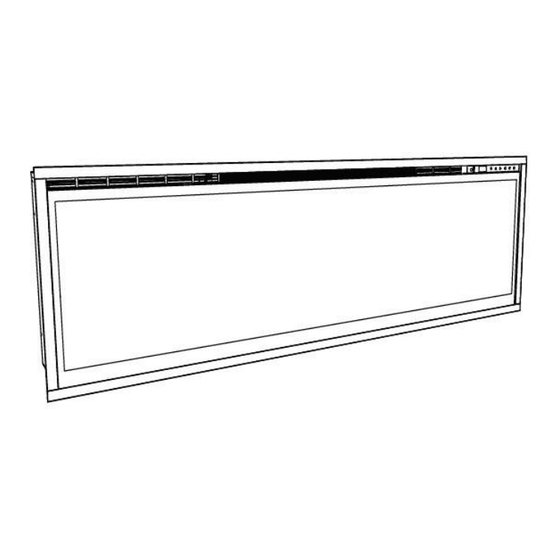

Altia
Dimensions Altia 50
L1306 a x 424 l x 147 p mm
Dimensions Altia 74
L 1915 mm x A 424 mm x P 147 mm
Type
Built-in
Voltage
220/240 V
Frequency
50 Hz
Power
1500 W—2500 W
BTUS: 5118/8530
Weight Altia 50
31 kg
Weight Altia 74
45 kg
Advertisement
Related Manuals for GlammFire Altia 50
Summary of Contents for GlammFire Altia 50
- Page 1 Altia Dimensions Altia 50 L1306 a x 424 l x 147 p mm Dimensions Altia 74 L 1915 mm x A 424 mm x P 147 mm Type Built-in Voltage 220/240 V Frequency 50 Hz Power 1500 W—2500 W BTUS: 5118/8530...
- Page 2 Thank you for purchasing a GlammFire product. To activate your GlammFire 2 years warranty, please register your product at www.glammfire.com/pt/ sobre/garantia or complete your warranty card and send it to us, along with a purchase copy, to our address within 30 days after the pruchase.
- Page 3 GlammFire. PAG./3 INDEX 1—Supplied material 2—Important Safety Advice 3—Installation 3.1— Mounting Methods 3.2— Fintal assembly 4—Controls 5— Maintenance 6—Overall Dimensions 7—After-Sale Service 8— Warranty...
- Page 4 Congratulations on purchasing your GlammFire Electric appliance. This quality product has been designed with preci- sion and rigour that characterizes us to offer you pleasant and soothing moments. Please read the instructions for use carefully and effective before using the appliance.
- Page 5 GlammFire. PAG./5 1 - IMPORTANT SAFETY ADVICE PLEASE READ ALL THE INSTRUCTIONS BEFORE USING THIS APPLIANCE. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following: If the appliance is damaged, check with the supplier before installation and operation.
- Page 6 1. Prepare a wall with a framed opening of 16 in. (40.6 cm) high, Altia 50 . in. (128.7 cm), Altia74 - in. (189.7 cm) wide, with a bottom sill that is a minimum of 4 in. (10.2 cm) deep. The sill can be constructed to support the front of the unit to allow the power supply wires to easily be run behind or flush with the back of the unit and a pass thru hole drilled for electrical wire routing.
- Page 7 GlammFire. PAG./7 Figure 2. Figure 3. To prevent electrical shock this unit is an electrical appliance that is NOT watertight and must be installed as to pre- vent water from entering unit. This must be installed away from showers, tubs, etc. Never locate fireplace where it...
- Page 8 FINAL ASSEMBLY 1. Locate and remove the 12 screws securing the partially reflective glass bracket to the unit, along the top of the opening, and set bracket and screws aside. 2. Remove the provided suction cup from the inside cavity of the unit (only for Altia 74). 3.
- Page 9 GlammFire. PAG./9 4 - OPERATION WARNING: This electric firebox must be properly installed before itis used. This firebox operates with Comfort$averTM Technology, which automatically adjusts thefan speed and heater watta- ge to safely and precisely match the requirements of the room based on the thermostat setting. The heater operates such that once the room reaches the set point, the fan and heater will continuously run at a low level, to maintain the desired room temperature.
- Page 10 E. Temperature Up - Increases the temperature setting. Adujested by repeatedly pressing the corresponding button on the remote.* Indicated by the setpoint on the Display increasing and the speed of the fan increasing to increase the amount of heat being projected into the room.** * The first time the button is pressed the current temperature set point will be displayed for 2 seconds ** The temperature can be adjusted from 5ºC to 37ºC (41ºF to 99ºF).
- Page 11 GlammFire. PAG./ Ressetting the Temperature Cutoff Swithc - Should the heater overheat, an automatic cut out will turn the whole unit off and it will not come back on without being reset. If the button on the unit is pressed, Er2 will be displayed on the unit.
- Page 12 GlammFire. MAINTENANCE PAG./ WARNING: Disconnect power and allow heater to cool before attempting any maintenance or cleaning to reduce the risk of fire, electric shock or damage to persons. NOTE: The fireplace should not be operated with an accumulation of dust or dirt on or in the unit, as this can cause a build up of heat and eventual damage.
- Page 13 GlammFire. PAG./ 6 - OVERALL DIMENSIONS Altia 50 1915 Altia 74...
- Page 14 If the information conflicts, information stated on the proof of purchase will be deemed accurate and true and warranty will be assessed accordingly. The GlammFire is always concerned with the environment. This is reflected when the projection of their products and their packaging. Focusing on the reduction of energy consumption, raw materials, natural resources and quantity of waste generated, GlammFire follows the policy of the 4R's (Reduce, Reuse, Recycle and Recover).
- Page 15 Distributor code: Name and Adress of the distribuidor: GlammFire fireplaces are manufactured under the strict Standard of the world recognized ISO 9001:2008 Quality As- surance Certificate. GlammFire products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work.
- Page 16 Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO PORTUGAL Tel(+351) 251 654 800 Fax(+351) 251 654 801 info@glammfire.com www.glammfire.com PT13332-B...
