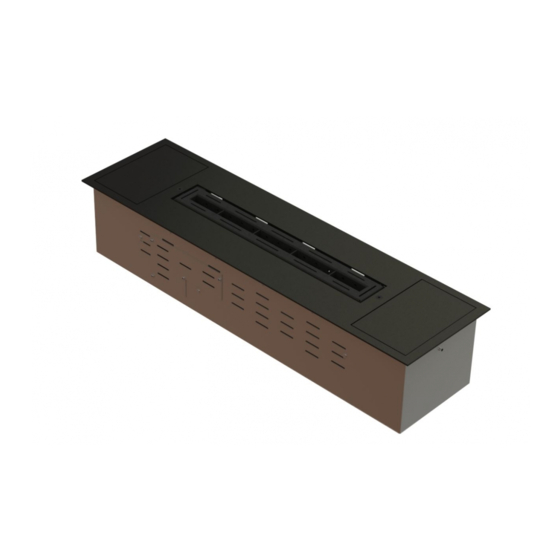

GlammFire Crea7ion Instruction Manual
  1. Manuals
  2. Brands
  3. GlammFire Manuals
  4. Indoor Fireplace
  5. Crea7ion EvoPlus Thales
  6. Instruction manual

GlammFire Crea7ion Instruction Manual

Combustion fire line ignition mode: mechanical-lighter
Hide thumbs Also See for Crea7ion:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTIONS MANUAL
Crea7ion
Combustion Fire Line
Ignition Mode:
Mechanical—Lighter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Crea7ion and is the answer not in the manual?

Questions and answers

Related Manuals for GlammFire Crea7ion

Summary of Contents for GlammFire Crea7ion

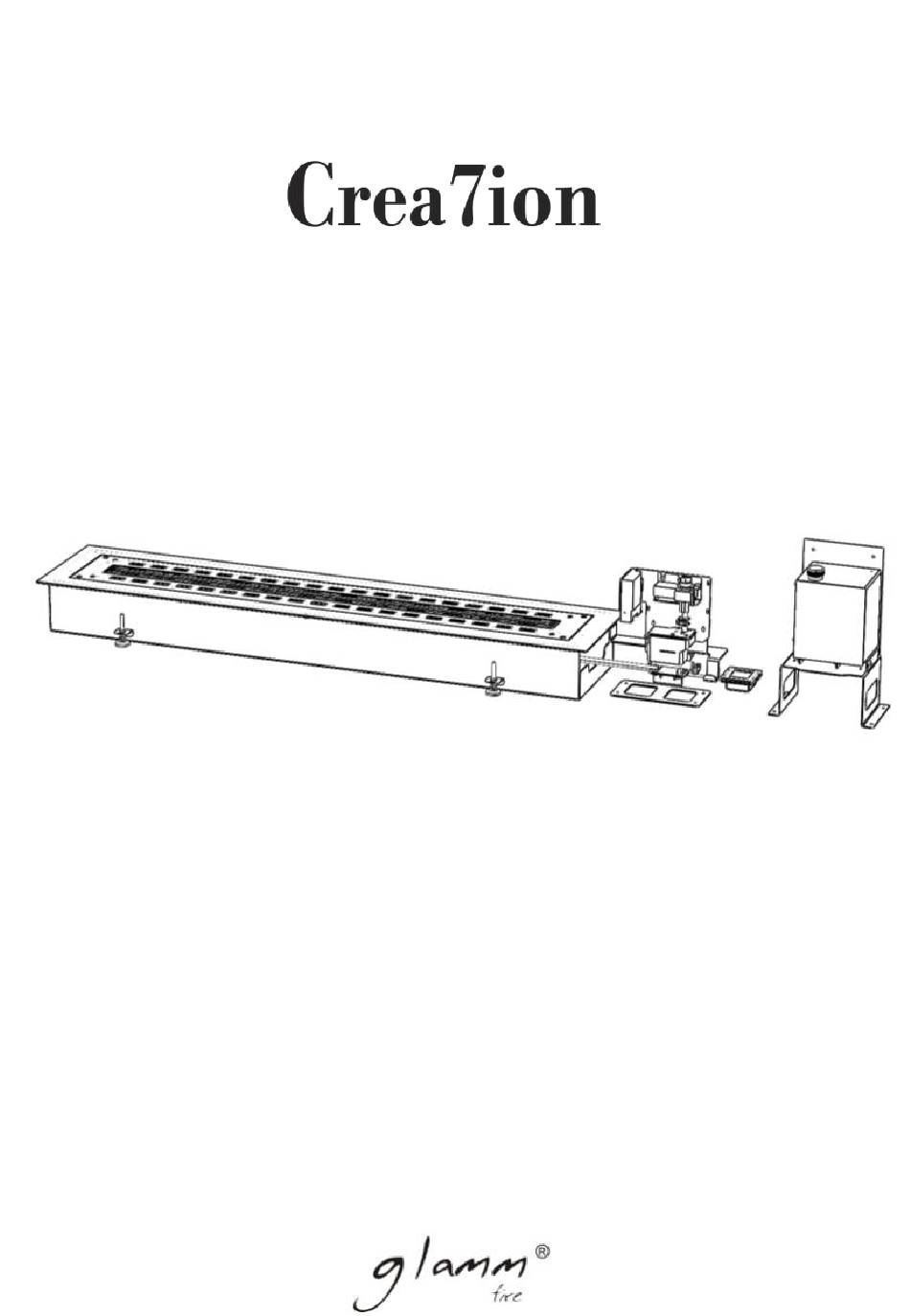

  • Page 1 INSTRUCTIONS MANUAL Crea7ion Combustion Fire Line Ignition Mode: Mechanical—Lighter...

  • Page 2: Table Of Contents

    GlammFire. PAG./2 ÍNDEX 1—Material Supplied 2—Components 3—Safety Instructions 3.1—Ventilation 3.2—Cautions 4—Fuel 4.1—Bioetanol – The adequate fuel 5—Installation 5.1—Dimensions 5.2—Flammable material 5.3—Materials: stone/metal/ceramics 5.4—Other non-flammable materials 5.5—Tools Required 5.6—Installation Procedures 6—Operation Instructions 7—Troubleshooting 8—Maintenance 9—Overall Dimensions 10—Especifications 11—After-Sales Service 12– Guarantee...

  • Page 3: 1-Material Supplied

    Please read this Instruction Manual carefully before using your decorative fireplace. It contains important operating and maintenance instructions, that should be followed correctly, in order to ensure a durable use of your decorative fireplace. All presented cautions and warnings must be respected. Keep this manual for future reference.

  • Page 4: 3-Safety Instructions

    3.2—Cautions: Glammfire is concerned about your safety, therefore we have taken all necessary consideration for conception, fabri- cation, assembly and transport, to ensure perfect functioning. We therefore ask you to thoroughly follow our instructions for assembly, use and maintenance.
  • Page 5 Do not use water to extinguish the fire;  Do not use chemical products to clean the fireplace, as they may damage the materials. When in doubt contact an  authorized dealer; After flame cutting may remain small residual flames at the point of fuel inlet for approximately 2 to 10 minutes. At ...

  • Page 6: 4-Fuel

    PAG./6 4—Fuel 4.1—Bioethanol – The adequate fuel Glammfire fireplaces are designed to work with quality bioethanol, fully tested. Only this fuel ensures clean and  efficient combustion. Fuel with less or inappropriate quality may lead to: Higher probability of malfunction;...

  • Page 7: 5-Installation

    5—Installation The surface which you want to install the combustion fire must be as level as possible; 5.1—Dimensions: To access to the control valve and tank (A) will be necessary to ensure a distance between the fireplace and potential obstacles on lateral sides superior to 300 mm.

  • Page 8: Flammable Material

    GlammFire. PAG./8 5.2—Flammable materials Do not place flammable materials near the fireplace, within 1m;  Racks or shelves should be distant:  From fireplaces: 500 mm;  From combustion fire lines: 1000 mm;  5.3—Materials: stone/metal/ceramics A - 100 mm;...

  • Page 9: Tools Required

    5.5—Tools Required Drill; Wrench; Tape measure; Pencil, Spirit Level, Phillips Screwdrivers. 5.6—Installation Procedures Very Important: We recommend extreme caution when unpacking your fireplace. The decorative rim is seated in the wall fastening plate, but it is loosened. In the installation placement, using the Hex Key (A), level the combustion fireline using the bolts as described in the image below.
  • Page 10 GlammFire. PAG./ Be sure that the steel plate (B), in between the elements of the Valve and the fire line is levelled out. Adjust the steel platform using the bolts if necessary (C). Then, proceed fitting the support basis with the screw holes pointed at (D).
  • Page 11 Before each use, verify if there is some colour shifting inside the Leak Detector powder (G). If there is any difference in color, it means there was a leakage. If so, do NOT ignite the fireplace and contact a skilled technician. Any leak Leakage...

  • Page 12: 6-Operation Instructions

    6—Operation Instructions Ignite the fire: Rotate knob A counter clockwise (+), after a few seconds ignite with the lighter supplied, once you  verify that there is bio-ethanol in the combustion fire line. Flame regulation: ( ) to decrease, ( ) to increase ...

  • Page 13: 7-Troubleshooting

    GlammFire. PAG./ 7—Troubleshooting Signal Cause Corrective action Bioethanol does not reach Tank without bioethanol. Fill the tank. the combustion fire line Gases in the fuel circuit. To trigger the lever on the left side of the control valve repeatedly. The combustion fire line...

  • Page 14: 9-Overall Dimensions

    9—Overall Dimensions 10—Specifications 11—After-Sales Service In case of doubt or any anomaly, do not use the fireplace and please contact a specialized technician. 12– Guarantee 2 years against manufacture defects (the warranty do not include glasses).
  • Page 15 Distributor code Name and Address of the Distributor GlammFire fireplaces are manufactured under the strict Standard of the world recognized ISO 9001:2008 Quality Assurance Certificate. GlammFire products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work.
  • Page 16 Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO PORTUGAL Tel(+351) 251 654 800 Fax(+351) 251 654 801 info@glammfire.com www.glammfire.com PT06240-A...
