Fire Wonderland
Wall Mounted Fireplaces//
Apollo Tango, Mito Small,
Zen, Lotus
Ignition Mode//
Mechanical—Lighter
OP// Black Mirror
GlammFire
Recuperadores Pachinha Lda.
Zona Industrial da Lagoa, Lote G1
4950-850 CORTES - MONÇÃO
PORTUGAL
Tel(+351) 251 654 800
Fax(+351) 251 654 801
info@glammfire.com
www.glammfire.com
GlammFire
Crea7ion.M
Crea7ion By GlammFire—The line of perfection
It is designed to emphasize the unique and continuous expressions of the flame.
Crea7ion is an electronic system with an innovative technology, which stand out its
simple design, practical functionality and low consumption. Its structure and solidity
ensure a perfectly safe and linear flame, while its ecological character keeps a
respecting commitment to the environment, contributing to a pleasant comfort and
well-being.
Crea7ion can be integrated into virtually any environment or directly in different types
of structures (eg.: furniture or masonry). A system totally safe for projects led by
architects, decorators and interior designers.
Control the pleasure of your fire.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GlammFire Apollo III Crea7ion.M
Summary of Contents for GlammFire Apollo III Crea7ion.M
- Page 1 Ignition Mode// Mechanical—Lighter OP// Black Mirror Crea7ion By GlammFire—The line of perfection It is designed to emphasize the unique and continuous expressions of the flame. Crea7ion is an electronic system with an innovative technology, which stand out its simple design, practical functionality and low consumption. Its structure and solidity...
- Page 2 GlammFire Crea7ion.M GlammFire Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO PORTUGAL Tel(+351) 251 654 800 Fax(+351) 251 654 801 info@glammfire.com www.glammfire.com...

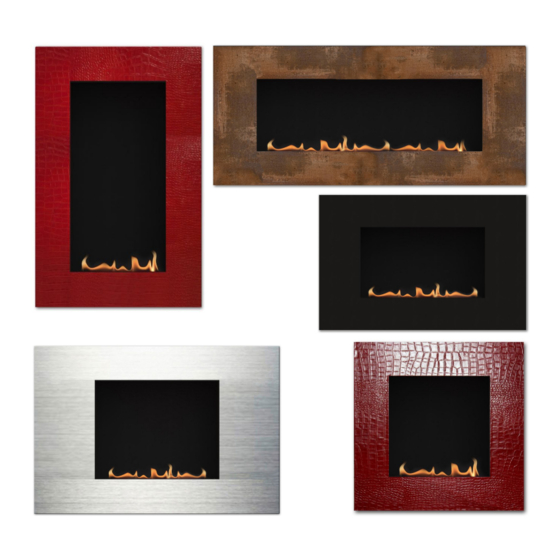

- Page 3 GlammFire Crea7ion.M Options Apollo III Crea7ion.M/Lacquered steel OP// black, red, cream Apollo II Crea7ion.M/Brushed stainless steel Apollo I Crea7ion.M/Rusted corten steel Apollo II Crea7ion Tango III Crea7ion.M/Lacquered steel OP// black, red, cream Tango II Crea7ion.M/ Brushed stainless steel Tango IV Crea7ion.M/ Rusted corten steel Tango I Crea7ion.M/Leather...
- Page 4 GlammFire Crea7ion.M Zen II Crea7ion.M/ Lacquered steel OP// black, red, cream Zen IV Crea7ion.M/Brushed stainless steel Zen III Crea7ion.M/Rusted corten steel Zen I Crea7ion.M/Leather OP//“Mississipi red” //“Montana white” //“Montana black” Zen III Crea7ion Lotus IV Crea7ion.M/Lacquered steel OP// black, red, cream Lotus III Crea7ion.M/ Brushed stainless steel...
-
Page 5: Material Supplied
GlammFire Crea7ion.M Material Supplied 1. Fireplace; 2. Mug; 3. Funnel; 4. Lighter; 5. Hex Key; 6. CO Detector; 7. Template; Components 1. Wall fastening plate; 2. Tank; 3. Combustion fire line; 4. Access door to the tank; 5. Decorative rim;... - Page 6 GlammFire Crea7ion.M Material Supplied 1. Fireplace; 2. Mug; 3. Funnel; 4. Lighter; 5. Hex Key; 6. CO Detector; 7. Template; Components 1. Wall fastening plate; 2. Tank; 3. Combustion fire line; 4. Access door to the tank; 5. Decorative cover;...
-
Page 7: Installation
GlammFire Crea7ion.M Installation In order to ensure a safety margin respect to the ground it is recommended to keep a minimum distance of 400 mm between the floor and the top of the combustion fire ; The surface which you want to install the combustion fire must be as level as possi- ble;... - Page 8 GlammFire Crea7ion.M Flammable materials Do not place flammable materials near the fireplace, within 1m; Racks or shelves should be distant: From fireplaces: 500 mm; From combustion fire lines: 1000 mm; Materials: stone/metal/ceramics A - 150 mm;...
-
Page 9: Installation Procedures
GlammFire Crea7ion.M Installation Procedures Very Important: We recommend extreme caution when unpacking your fireplace. The decorative cover is on top of the fireplace body, but it is loose. Separate the decorative cover to start the installation (unscrew the nuts—no. 2 of image B). - Page 10 GlammFire Crea7ion.M Place the fireplace in the desired location and mark the six holes required on the wall to install it, using de supplied template . Make sure your fireplace is level. Choose the type of fastener suitable for the wall material and proceed to the drilling.
- Page 11 GlammFire Crea7ion.M Installation of optional Black Mirror Material Supplied 1—Screws 2—Protective black mirror tape 3—Mounting bracket; 4—Black Mirror; Optional Black Mirror Installation Procedures Remove the decorative rim of the fireplace. Inside the fireplace there are the specific holes (A) to make this operation.
- Page 12 GlammFire Crea7ion.M Screw the mounting brackets using the screws supplied and do not forget to put the protective black mirror tapes (B). Place the black mirror, inserting it into the upper mounting bracket. When docked touch it inside the fireplace (C).
- Page 13 GlammFire Crea7ion.M Let the black mirror slide slowly, without dropping it, to fit into the lower mounting bracket. (D) Make all procedures very carefully so as not to damage the black mirror. GlammFire Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO...
- Page 14 GlammFire Crea7ion.M Finally proceed to the setting of decorative rim (E). The installation of your fireplace is complete. GlammFire Recuperadores Pachinha Lda. Zona Industrial da Lagoa, Lote G1 4950-850 CORTES - MONÇÃO PORTUGAL Tel(+351) 251 654 800 Fax(+351) 251 654 801 info@glammfire.com...
- Page 15 GlammFire Crea7ion.M Operation Instructions Access the tank through the access door on the right side of the fireplace; With the help of the funnel and mug fill the desired amount of fuel (maximum: 3 litres). Check the level through the fuel tube indicator;...
- Page 16 GlammFire Crea7ion.M Overall Dimensions/Specifications MODEL Dimensions (mm) Weight Capacity Power Combustion Autonomy (H x W x D ) (kg) (litres) (kW) fire line (hours) Apollo 650 x 1450 x 223 Lotus 800 x 800 x 223 9:30 Mito Small 1000 x 650 x 223...
